Extron SW4 USB Pro Four Input USB 10G Switcher 60-1834-01
Extron SW4 USB Pro Four Input USB 10G Switcher 60-1834-01
Extron SW4 USB Pro USB 10G Switcher
- • Switches 4 hosts (2 USB-C, 2 USB 3.2 Type-B) to shared peripherals at up to 10 Gbps
- • 4-port peripheral hub: 1 USB-C, 1 USB 3.2 Type-A, 2 USB 2.0 Type-A
- • Host and Peripheral Emulation Mode keeps devices enumerated through a switch
- • Hot Key, Auto, and manual switching from the front panel
- • RS-232 and Ethernet remote control
- • 3-year Extron warranty; 7-year Everlast power supply warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

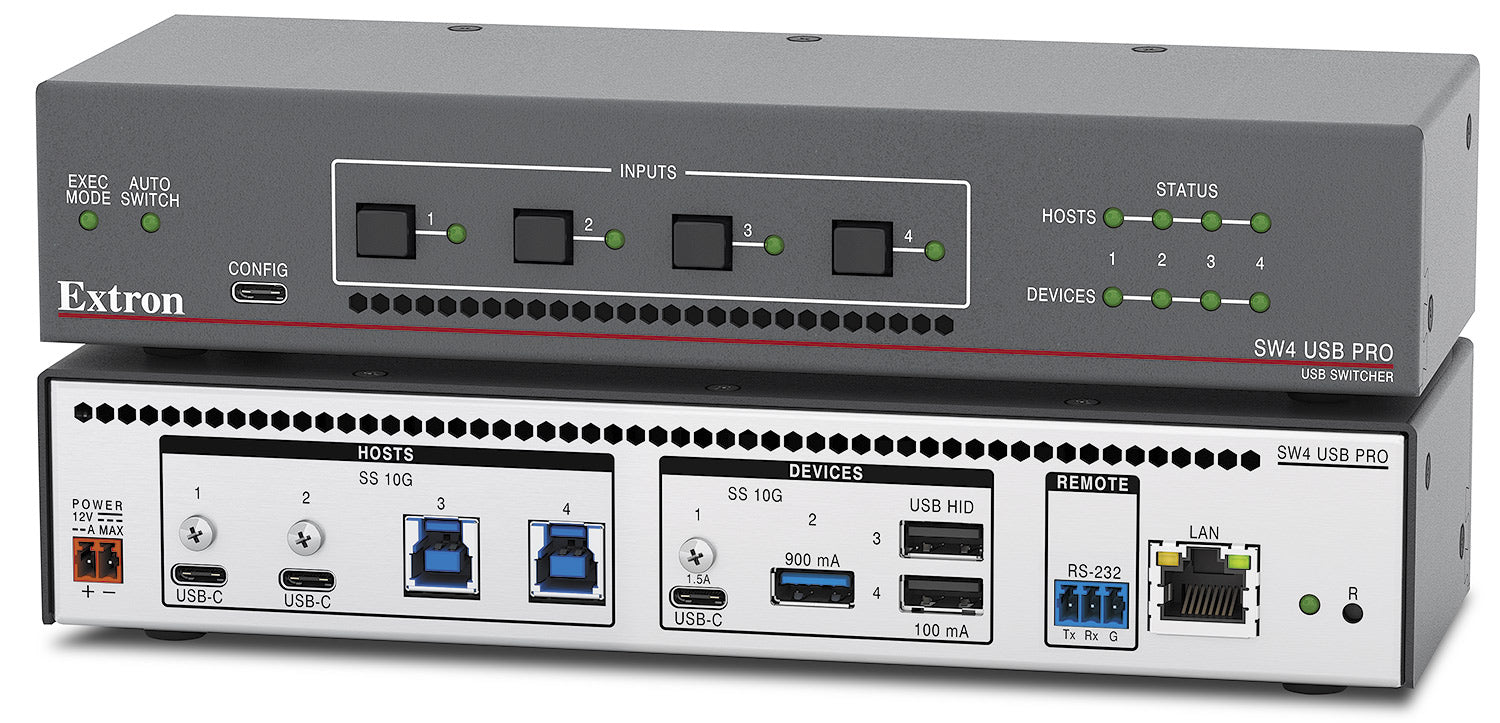

Extron SW4 USB Pro (part number 60-1834-01) — a four-input USB 10Gbps switcher for sharing peripherals among up to four host computers.
SW4 USB Pro lets up to four host PCs or laptops share one set of USB peripherals — camera, keyboard, mouse, and storage — switching between hosts at the front panel, over RS-232, or over Ethernet, at data rates up to USB 10Gbps with full backward compatibility to USB 1.1. Two USB-C hosts and two USB 3.2 Type-B hosts give the room a mix of connector types for different laptops. Host and Peripheral Emulation Mode keeps both the host and connected peripherals continuously enumerated in the background, so switching between hosts doesn't force devices to re-enumerate or drop out.
Key Capabilities
- Switches 4 hosts (2 USB-C, 2 USB 3.2 Type-B) to shared peripherals at up to 10 Gbps
- 4-port peripheral hub: 1 USB-C, 1 USB 3.2 Type-A, 2 USB 2.0 Type-A
- Host and Peripheral Emulation Mode keeps devices enumerated through a switch
- Hot Key, Auto, and manual switching from the front panel
- RS-232 and Ethernet remote control
Where It Is Used
SW4 USB Pro is specified in larger huddle rooms, boardrooms, and multi-presenter classrooms where four computers need to share a USB-C or USB-B webcam, speakerphone, or interactive display without manual reconnection between meetings.
Specifications at a Glance
- USB host ports: 4 (2 USB-C, 2 USB 3.2 Type-B), up to 10 Gbps
- Peripheral hub: 4 ports (USB-C, USB 3.2 Type-A, 2x USB 2.0 Type-A)
- Control: RS-232 and Ethernet (10/100Base-T)
- Power: External 12 VDC, 24 W supply, 18.55 W device draw
- Enclosure: 1U half-rack, 1.75" H x 8.75" W x 3.0" D, 2.0 lbs (0.9 kg)
Also referenced as Extron SW4USBPro, SW4-USB-Pro, part number 60183401.
