Extron SW4 HD 4K PLUS 4x1 HDMI 2.0 4K Switcher 60-1604-01

Extron SW4 HD 4K PLUS 4x1 HDMI 2.0 4K Switcher 60-1604-01

Manufacturer: Extron

Type: Switchers

Extron SW4 HD 4K PLUS 4x1 HDMI Switcher

  • • 4x1 HDMI switching at up to 18 Gbps (4K60 4:4:4, 12-bit color)
  • • RS-232, USB, and 10/100 Ethernet control in one chassis
  • • Program via Extron SIS, Telnet, or a web browser over IP
  • • Contact closure/tally outputs report the active input
  • • External 12 VDC power supply, compact half-rack footprint
  • • 1U half-rack metal enclosure, 1.2 lbs

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-SW4HD4KPLUS-60160401

Details

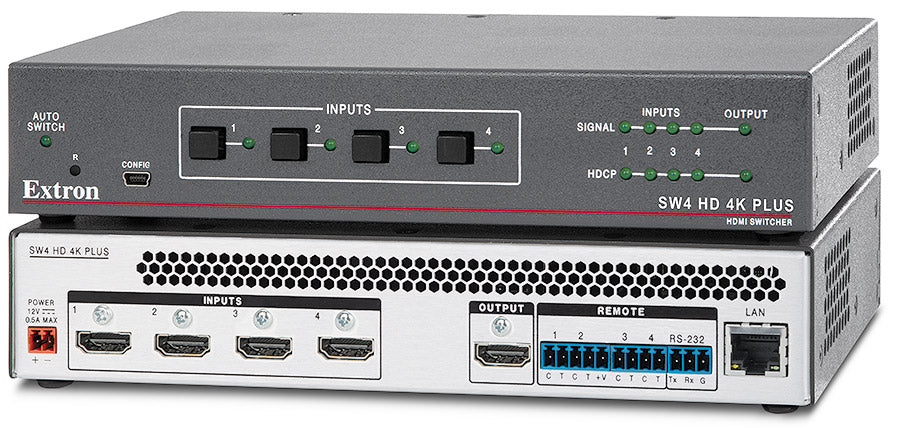

Extron SW4 HD 4K PLUS (part number 60-1604-01) — a 4x1 HDMI switcher built for full 4K60 4:4:4 signal paths with Ethernet and RS-232 control built in.

Four HDMI inputs handle up to 18 Gbps of bandwidth, enough for 4K at 60 Hz with 4:4:4 chroma sampling and up to 12-bit color, then route to a single HDMI output. Beyond simple switching, the SW4 HD 4K PLUS exposes RS-232, a front-panel USB control port, and a 10/100 Ethernet port running Extron's SIS protocol or Telnet, so it can be commanded directly from a room control processor or a browser-based interface without a separate control box.

Key Capabilities

  • 4x1 HDMI switching at up to 18 Gbps (4K60 4:4:4, 12-bit color)
  • RS-232, USB, and 10/100 Ethernet control in one chassis
  • Program via Extron SIS, Telnet, or a web browser over IP
  • Contact closure/tally outputs report the active input
  • External 12 VDC power supply, compact half-rack footprint
  • 1U half-rack metal enclosure, 1.2 lbs

Where It Is Used

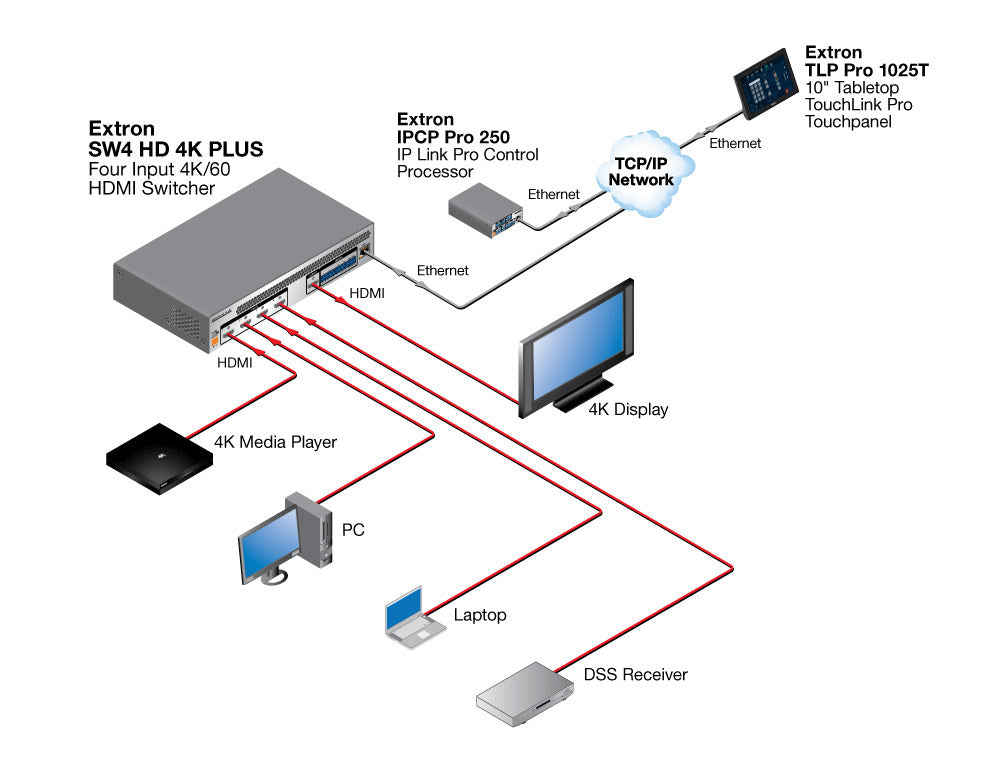

Fits huddle rooms and small conference spaces where four HDMI laptops or media players need clean 4K switching plus IP-based control integration with a room scheduling or automation system.

Specifications at a Glance

  • 4 HDMI inputs, 1 HDMI output
  • 18 Gbps max data rate, 4K @ 60 Hz 4:4:4
  • External 12 VDC power supply, 18 watts
  • 1.75" H x 8.75" W x 6.0" D half-rack enclosure
  • 3-year product warranty, 7-year Everlast power supply warranty

Also referenced as Extron SW4HD4KPLUS, SW4-HD-4K-PLUS, part number 60160401.
