Extron SW2 USB Pro Two Input USB 10G Switcher 60-1833-01
Extron SW2 USB Pro Two Input USB 10G Switcher 60-1833-01

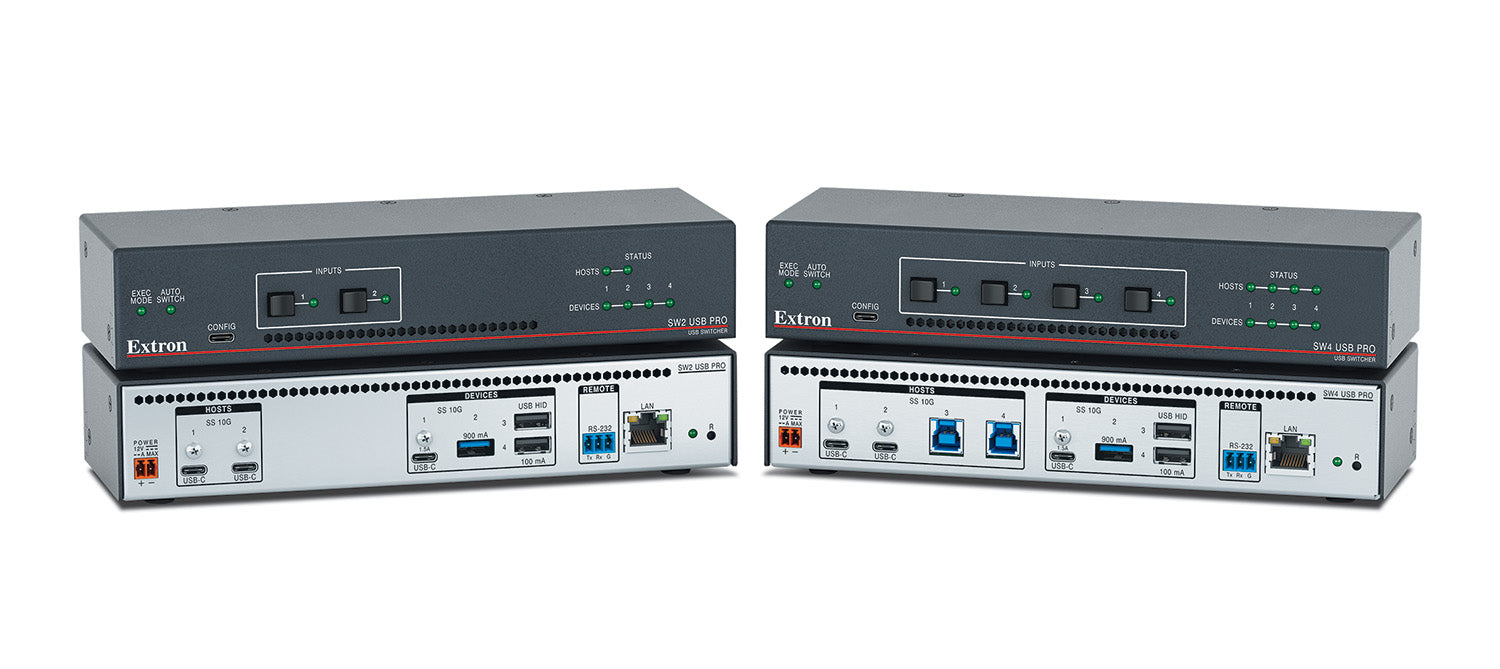

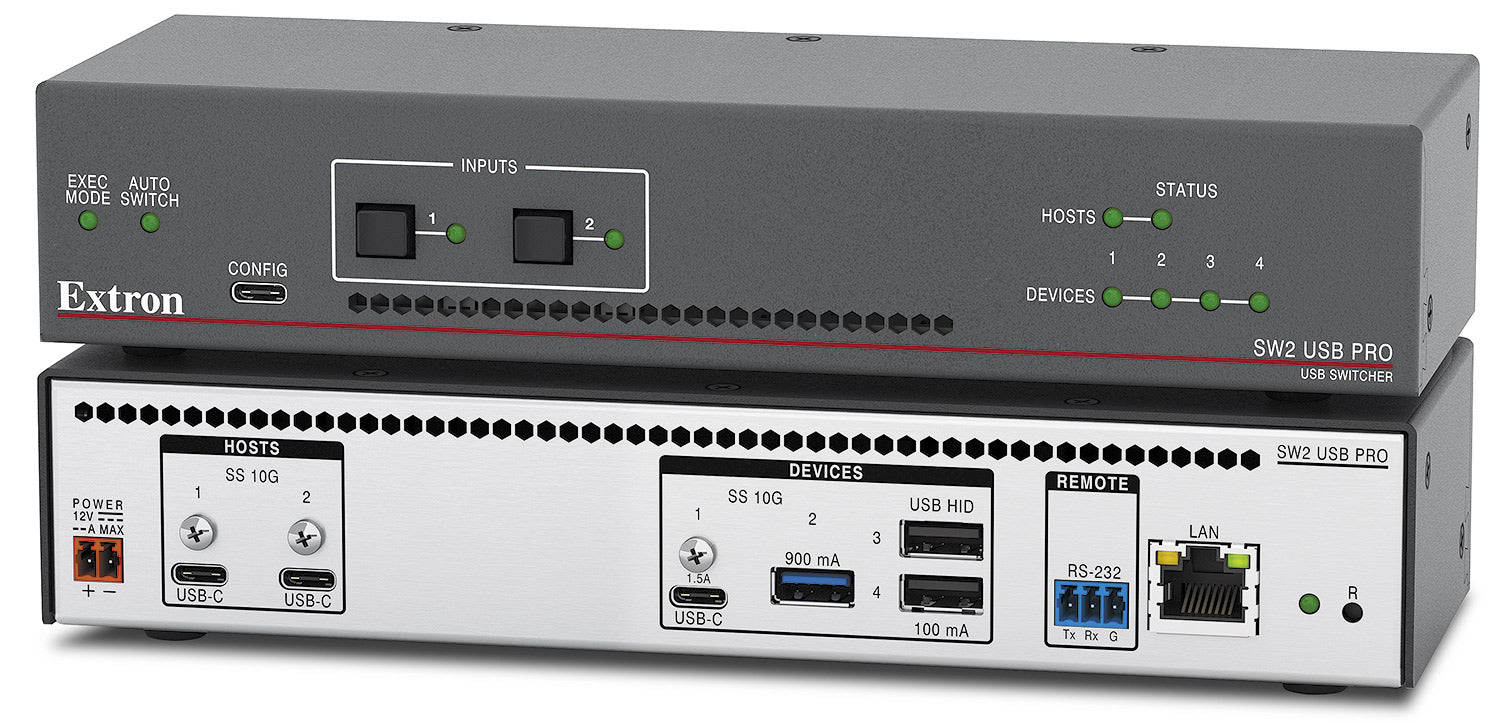

Extron SW2 USB Pro USB 10G Switcher
- • Switches 2 USB-C hosts to a shared set of peripherals at up to 10 Gbps
- • 4-port peripheral hub: 1 USB-C, 1 USB 3.2 Type-A, 2 USB 2.0 Type-A
- • Host and Peripheral Emulation Mode keeps devices enumerated through a switch
- • Hot Key, Auto, and manual switching from the front panel
- • RS-232 and Ethernet remote control
- • 3-year Extron warranty; 7-year Everlast power supply warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron SW2 USB Pro (part number 60-1833-01) — a two-input USB 10Gbps switcher for sharing peripherals between two host computers.
SW2 USB Pro lets two host PCs or laptops share one set of USB peripherals — camera, keyboard, mouse, and storage — switching between hosts at the front panel, over RS-232, or over Ethernet, at data rates up to USB 10Gbps and full backward compatibility to USB 1.1. Host and Peripheral Emulation Mode keeps both the host and connected peripherals continuously enumerated in the background, so switching between hosts doesn't force devices to re-enumerate or drop out. A built-in 4-port hub with USB-C and USB-A connectors gives the room's peripherals a single, stable connection point regardless of which host is active.
Key Capabilities
- Switches 2 USB-C hosts to a shared set of peripherals at up to 10 Gbps
- 4-port peripheral hub: 1 USB-C, 1 USB 3.2 Type-A, 2 USB 2.0 Type-A
- Host and Peripheral Emulation Mode keeps devices enumerated through a switch
- Hot Key, Auto, and manual switching from the front panel
- RS-232 and Ethernet remote control
Where It Is Used

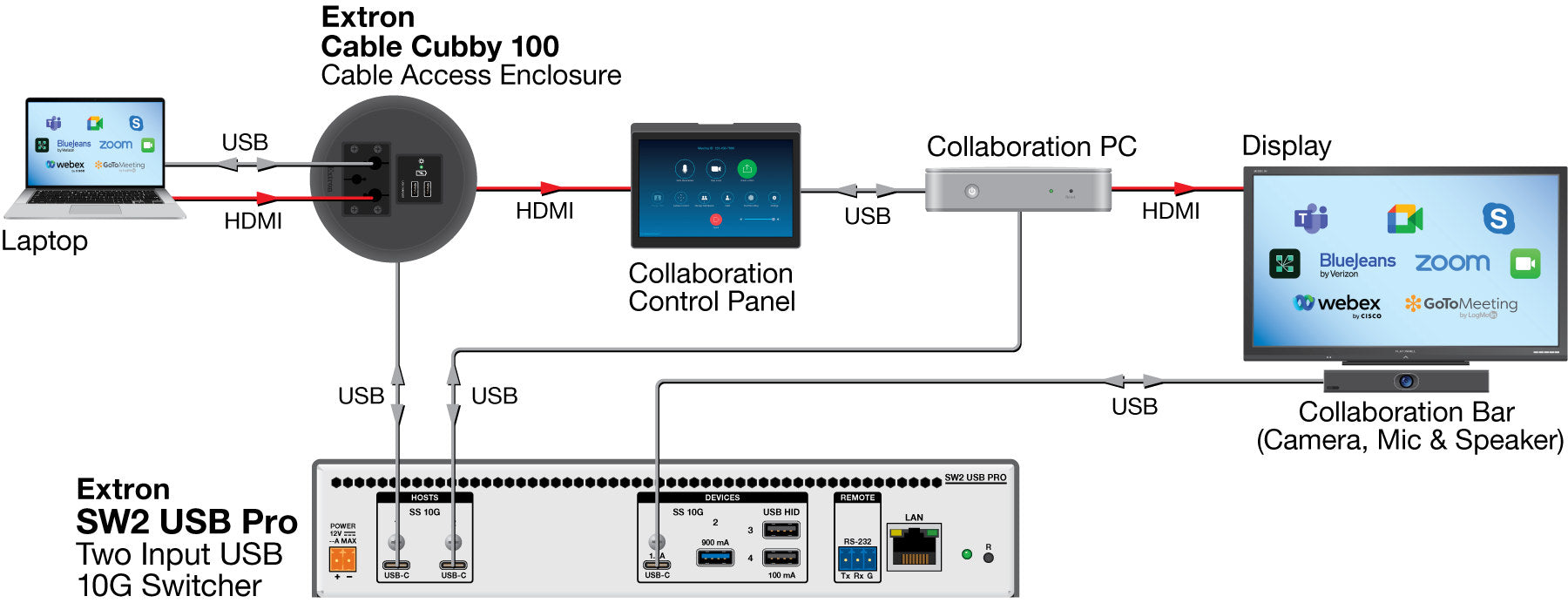

SW2 USB Pro is specified in huddle rooms, boardrooms, and classrooms where two computers need to share a USB-C webcam, speakerphone, or interactive display without users unplugging and replugging cables between meetings.
Specifications at a Glance
- USB host ports: 2, USB-C, up to 10 Gbps (USB 3.2 Gen 2)
- Peripheral hub: 4 ports (USB-C, USB 3.2 Type-A, 2x USB 2.0 Type-A)
- Control: RS-232 and Ethernet (10/100Base-T)
- Power: External 12 VDC, 24 W supply, 18.55 W device draw
- Enclosure: 1U half-rack, 1.75" H x 8.75" W x 3.0" D, 2.0 lbs (0.9 kg)
Also referenced as Extron SW2USBPro, SW2-USB-Pro, part number 60183301.
