Manufacturer: Extron

Type: Switchers

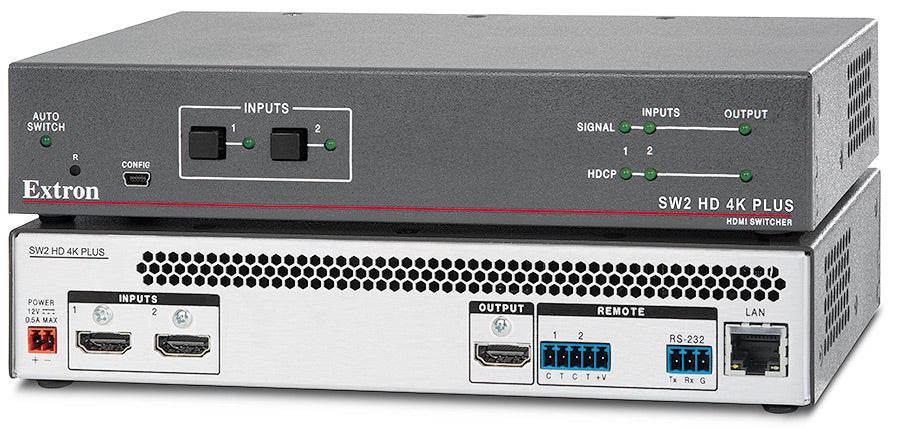

Extron SW2 HD 4K PLUS 60-1603-01 Two-Input HDMI Switcher

  • • 2-input HDMI switcher at 4K/60 4:4:4 and 18 Gbps
  • • 4K PLUS variant: full 4K/60 on both inputs and the output
  • • EDID Minder manages EDID to keep sources properly configured
  • • RS-232 and front panel control, compatible with Extron control systems
  • • Compact half-rack 1U metal enclosure

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-SW2HD4KPLUS-60160301

Details

Manufacturer: Extron | Model: SW2 HD 4K PLUS | Part number: 60-1603-01 (also written 60160301)

The Extron SW2 HD 4K PLUS (60-1603-01) is a two-input HDMI switcher at full 4K/60 4:4:4 on both inputs and its output. It accepts two HDMI 2.0 sources at 18 Gbps, routes one to the display, and manages EDID automatically so sources stay configured correctly even when the display is not active. Front-panel button, RS-232, and IR control are supported and it integrates with Extron control systems.

Key capabilities

  • Two HDMI 2.0 inputs and one HDMI output, all at 4K/60 4:4:4 at 18 Gbps
  • 4K PLUS: full 4K/60 on all ports — not just 4K/30 or 4:2:0
  • EDID Minder maintains EDID communication to connected sources at all times
  • SpeedSwitch for rapid input switching with HDCP 2.3 support
  • Front-panel, RS-232, and IR control; compatible with Extron control systems

Where it is used

Conference rooms, huddle spaces, and display enclosures where two HDMI sources need to share a single 4K display with reliable HDCP switching and no external control system required.

Specifications at a glance

  • Enclosure: 1U half-rack, metal
  • Video bandwidth: 18 Gbps per port
  • Power: external 12 VDC, 3.9 W device draw
  • Warranty: 3-year Extron product, 7-year Everlast power supply

Also referenced as Extron SW2HD4KPLUS, SW2-HD-4K-PLUS, part number 60160301.
