Details

Part number 60-946-21 — 12 Inputs, Two Outputs, & Audio

60-946-21 selects among 12 sources and sends the chosen video signal together with stereo audio to two separate outputs. This configuration meets the requirements of setups that include numerous computers or HDTV devices needing to connect with a pair of displays, because sensing at the inputs enables automatic switching and the 350 MHz bandwidth supports high-resolution signals.

Systems installed in conference rooms, boardrooms, classrooms or lecture halls commonly employ this type of device. Prior to purchase an integrator should verify that the unit accommodates both balanced and unbalanced stereo audio, supplies active buffering on the computer audio path, forwards ID bits from input 1 to the main output, and relies on convection cooling within its metal housing while delivering 350 MHz video bandwidth.

Specifications

Part Number: 60-946-21

Manufacturer: Extron

Condition: New

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensingOperating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Bandwidth: 350 MHz (-3 dB)

Baud rate and protocol: 9600 baud, 8 data bits, 1 stop bit, no parity

Compliances: CE, C-tick, FCC Class A, ICES, VCCI

Connectors: 2, 4, 6, 8, or 12 female 15-pin HD

Contact closure: SW2/4/6 VGA Series only: female 9-pin D connector (shared with RS-232)

Contact closure pin configuration: SW2/4/6 VGA Series only:1 = input 1, 4 = input 2, 6 = input 3, 7 = input 4, 8 = input 5, 9 = input 6; active when a pin momentarily shorts to ground

Cooling: Convection, no vents

Crosstalk: -68 dB @ 10 MHz

DC offset: ±5 mV with input at 0 offset

Enclosure type: Metal

Everlast power supply warranty: 7 years parts and labor

Frequency response: 20 Hz to 20 kHz, ±0.05 dB

Furniture mount: Yes, with optional under-desk or through-desk mounting kit

Gain: Unity

Gain error: SW8/12 VGA Series only: ±0.1 dB channel to channel

Horizontal frequency: 15 kHz to 145 kHz

Impedance: 75 ohms

Input coupling: DC

Input gain adjustment: SW 6 VGA A only: -15.0 dB to +9.0 dB, adjustable per input

Input impedance: 510 ohms

Input level: 1.0 V to 5.0 Vp-p

Input type: RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level sync

Maximum level (600 ohm): +21 dBm, balanced; +18 dBm, unbalanced at 1%THD+N

Maximum level (Hi-Z): +28 dBu, balanced; +20 dBV, unbalanced at 1%THD+N

Minimum/maximum levels: Analog: 0.3 V to 1.5 Vp-p with no offset

Nominal level: 1.0 Vp-p for Y of component video0.7 Vp-p for RGB and for R-Y and B-Y of component video

Number/signal type: 2, 4, 6, 8, or 12 (depending on the model) VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs computer video, and HDTV component video

Output impedance: 75 ohms

Output level: TTL: 5.0 Vp-p, unterminated

Output type: RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level sync (follows input)

Polarity: Positive or negative (follows input)

Power: 100 VAC to 240 VAC, 50-60 Hz, 10 watts, internal

Product warranty: 3 years parts and labor

Program control: Extron control/configuration program for Windows®Extron Simple Instruction Set (SIS™)

Return loss: -40 dB @ 5 MHz

S/N: >90 dB at maximum output (unweighted)

SW2/4/6 VGA Ars: 1 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs computer video, and HDTV component video (follows input type)

SW8/12 VGA Ars: 2 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs computer video, and HDTV component video (follows input type)

Safety: CE, c-UL, UL

Serial control pin configurations: 2 = Tx, 3 = Rx, 5 = GND

Show Me contact closure: Pin 5 of each VGA input connector. The input is active (selected) when pin 5 momentarily goes to ground.

THD + Noise: 0.01% @ 1 kHz at nominal level

Variable output's volume range: SW8/12 VGA Series only: 0 to 100 (-84 dB to 0 dB), default = 100 = 0 dB

Vertical frequency: 30 Hz to 170 Hz

Vibration: ISTA 1A in carton (International Safe Transit Association)

Diagram

Resources

Brochure | SW12 VGA Ars 60-946-21 | SW VGA Series

Brochure | SW12 VGA Ars 60-946-21 | Everlast Power Supplies

Brochure | SW12 VGA Ars 60-946-21 | Alimentatori Everlast

Brochure | SW12 VGA Ars 60-946-21 | Everlast 电源

Brochure | SW12 VGA Ars 60-946-21 | Everlast-Netzteile

Brochure | SW12 VGA Ars 60-946-21 | Fuentes de alimentación Everlast

Brochure | SW12 VGA Ars 60-946-21 | Sources d'alimentation Everlast

Brochure | SW12 VGA Ars 60-946-21 | SW 2 VGA ARs - Spec Sheet

Brochure | SW12 VGA Ars 60-946-21 | SW 2 VGA Rs - Spec Sheet

Brochure | SW12 VGA Ars 60-946-21 | SW 4 VGA ARs - Spec Sheet

Brochure | SW12 VGA Ars 60-946-21 | SW 4 VGA Rs - Spec Sheet

Brochure | SW12 VGA Ars 60-946-21 | SW 6 VGA ARs - Spec Sheet

Brochure | SW12 VGA Ars 60-946-21 | SW 6 VGA Rs - Spec Sheet

Brochure | SW12 VGA Ars 60-946-21 | SW 8 VGA Ars - Bid Sheet

Brochure | SW12 VGA Ars 60-946-21 | SW12 VGA Ars - Bid Sheet

Manual | SW12 VGA Ars 60-946-21 | Audio Connector Wiring Instruction Card

Manual | SW12 VGA Ars 60-946-21 | Cleaning Instruction Card

Manual | SW12 VGA Ars 60-946-21 | SW VGArs / Ars Setup Guide

Manual | SW12 VGA Ars 60-946-21 | SW VGArs /Ars

Manual | SW12 VGA Ars 60-946-21 | SW8/SW12 VGA Ars

Manual | SW12 VGA Ars 60-946-21 | SW8/SW12 VGA Ars setup guide

Specifications | SW12 VGA Ars 60-946-21 | SW2/4/6/8/12 VGA Ars Switchers

Panel Drawing | SW12 VGA Ars 60-946-21 | SW VGA

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

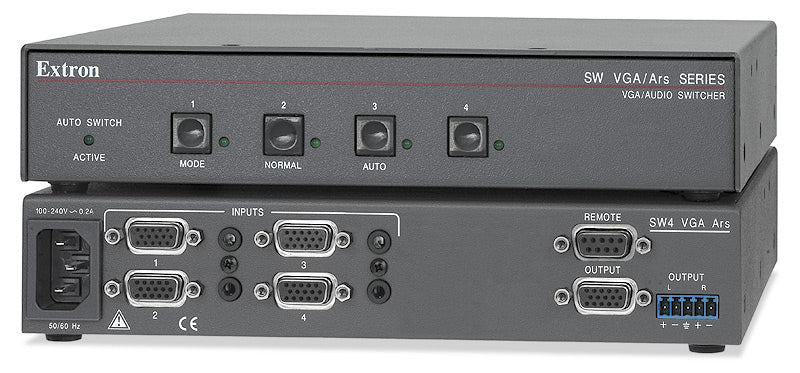

Extron SW12 VGA Ars 60-946-21

Name: Extron SW12 VGA Ars 60-946-21
Brand: Extron
SKU: EXTRON-SW12VGAARS-6094621
Availability: InStock

Manufacturer: Extron

Type: Switchers

Extron SW12 VGA Ars 60-946-21 12-Input VGA Switcher

• Switches high-resolution computer and HDTV signals
• Active computer audio buffering
• Multiple control methods including optional IR
• Internal Everlast power supply
• Furniture mountable with optional kit

Product discontinued.
