Extron STP22P/1000 (part number 22-158-03) — 1,000 ft of plenum-rated single-pair 22 AWG shielded control and audio cable on a bulk spool.

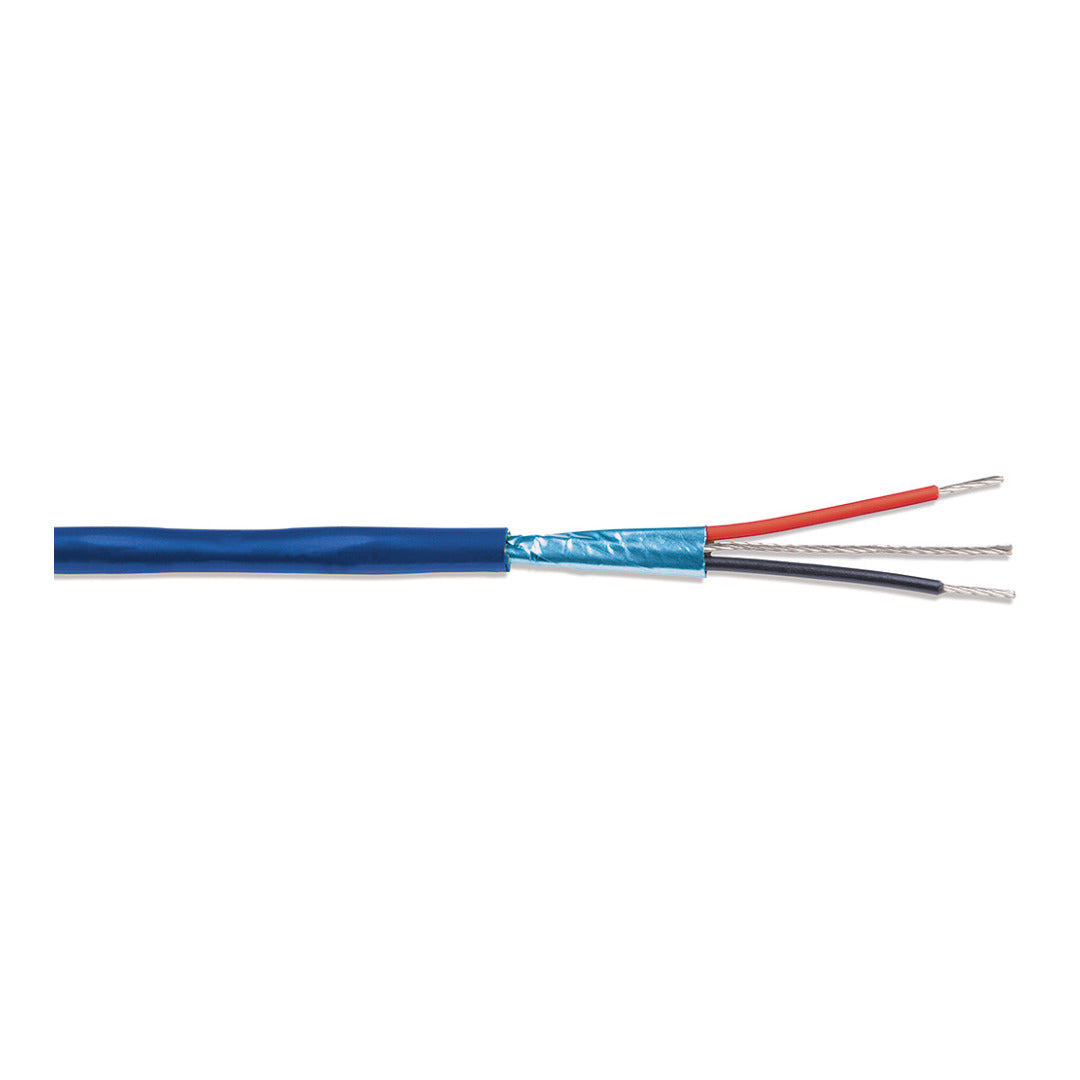

When a control or audio home run has to cross a return-air ceiling, the jacket rating stops being a detail and becomes the whole decision. The STP22P answers it with a blue fire-resistant PVC outer jacket carrying an NEC CMP listing, wrapped around one twisted pair of 22 AWG tinned copper conductors in foamed FEP insulation. A 100 percent aluminum foil shield and a bonded tinned copper drain wire handle noise rejection, and at a 0.118 in nominal diameter this is the thinnest cable in the STP Series — useful when a J-hook run is already crowded.

Key Capabilities

• NEC CMP plenum listing plus C(UL) 60 °C, so it can run in air-handling spaces without conduit.
• One 22 AWG shielded twisted pair, 0.030 in (0.76 mm) tinned copper, red and black.
• Foamed FEP insulation with a PVC inner jacket under the blue fire-resistant outer jacket.
• Aluminum foil shield at 100 percent coverage with a bonded tinned copper drain wire.
• Smallest overall diameter in the series at 0.118 in (3.00 mm) nominal.
• 1,000 ft (304.8 m) self-dispensing spool, 14 lb shipping weight, sequential footage markings on the jacket.

Where It Is Used

Plenum ceilings over open-plan offices, hospital corridors and patient floors, school and university buildings, transit hubs, and any jurisdiction where the inspector will not pass non-plenum cable above the tile. It is the standard choice for control and audio drops to ceiling-mounted projectors, speakers and sensors.

Specifications at a Glance

• Conductors: 1 shielded twisted pair, 22 AWG (7/30) tinned copper, 0.030 in (0.76 mm)
• Nominal core OD 0.042 in (1.07 mm); nominal overall OD 0.118 in (3.00 mm)
• Jacket: blue fire-resistant PVC, plenum; NEC CMP, C(UL) 60 °C
• Standard length 1,000 ft (304.8 m); shipping weight 14 lb (6.4 kg)

Also referenced as Extron STP22P1000, STP22P-1000, part number 2215803.
