Extron STP22-2/1000 (part number 22-160-03) — 1,000 ft of two-pair 22 AWG shielded control and audio cable on a non-plenum bulk spool.

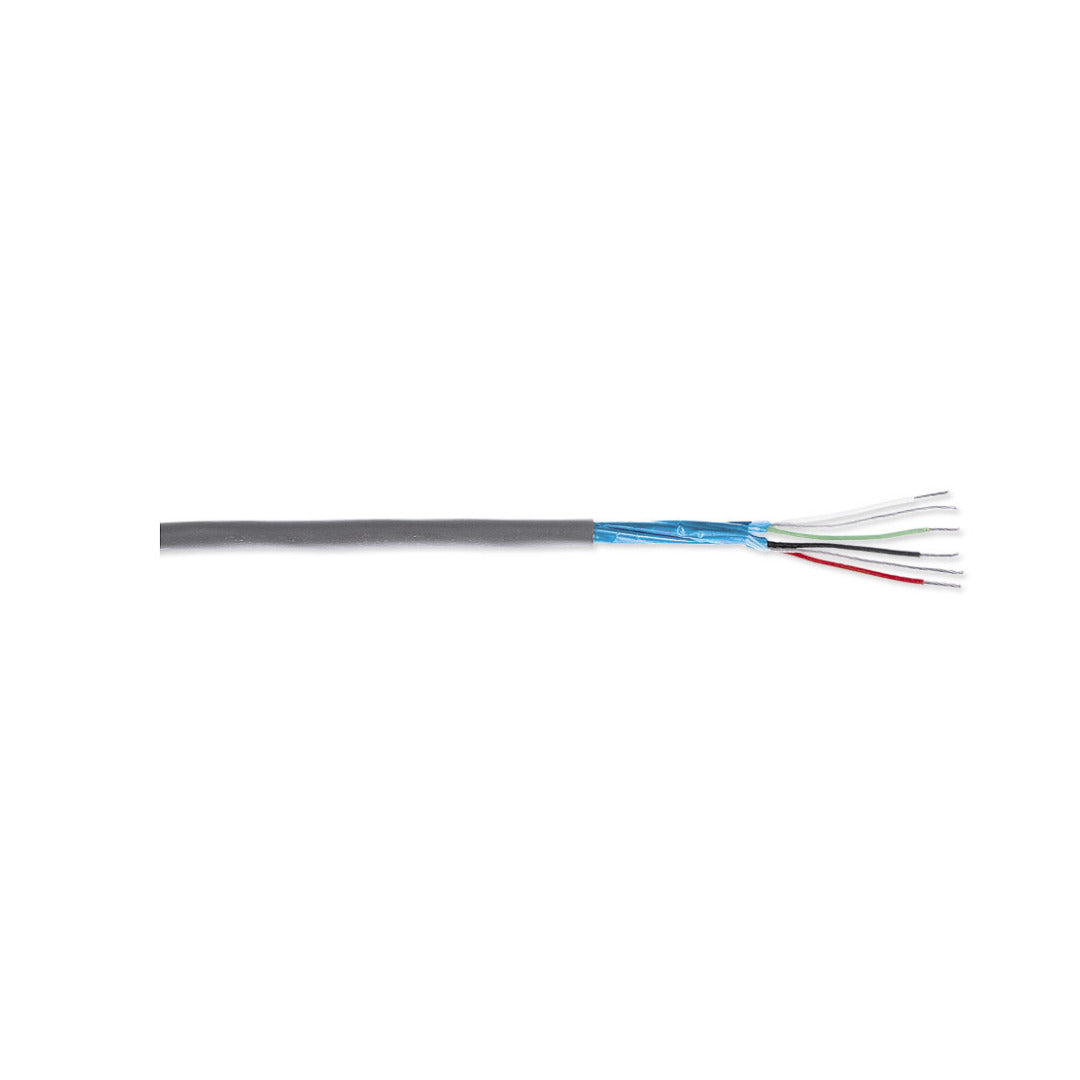

Two pairs in one jacket is what separates the STP22-2 from its single-pair sibling, and it is the reason integrators specify it: a bidirectional control link and a balanced audio feed, or a stereo pair, can share one pull instead of two. Four 22 AWG tinned copper conductors are grouped as two twisted pairs and color coded red/black and green/white so they stay identifiable at both terminations. An aluminum foil shield at 100 percent coverage and a tinned copper drain wire handle interference; polypropylene insulation, PVC inner jackets and a gray PVC outer jacket bring the assembly to 0.168 in nominal diameter.

Key Capabilities

• Two shielded twisted pairs of 22 AWG tinned copper in a single 0.168 in (4.27 mm) jacket.
• Color-coded conductors, red/black and green/white, for unambiguous pair identification.
• Aluminum foil shield at 100 percent coverage with a tinned copper drain wire.
• Non-plenum gray PVC construction rated NEC CM and C(UL) 60 °C.
• Nominal impedance of 45 ohms.
• 1,000 ft (304.8 m) self-dispensing spool, 34 lb shipping weight, sequential footage markings.

Where It Is Used

Any install where control and audio travel the same route through non-plenum space: conference and training rooms, divisible meeting suites, courtrooms, worship platforms, broadcast and post-production support areas, and rack backbones in medical imaging reading rooms and command centers.

Specifications at a Glance

• Conductors: 2 shielded twisted pairs, 22 AWG (7/30) tinned copper, 0.030 in (0.76 mm)
• Nominal core OD 0.046 in (1.17 mm); nominal overall OD 0.168 in (4.27 mm)
• Jacket: gray PVC, non-plenum; NEC CM, C(UL) 60 °C
• Standard length 1,000 ft (304.8 m); shipping weight 34 lb (15.4 kg)

Also referenced as Extron STP2221000, STP22-2-1000, part number 2216003.
