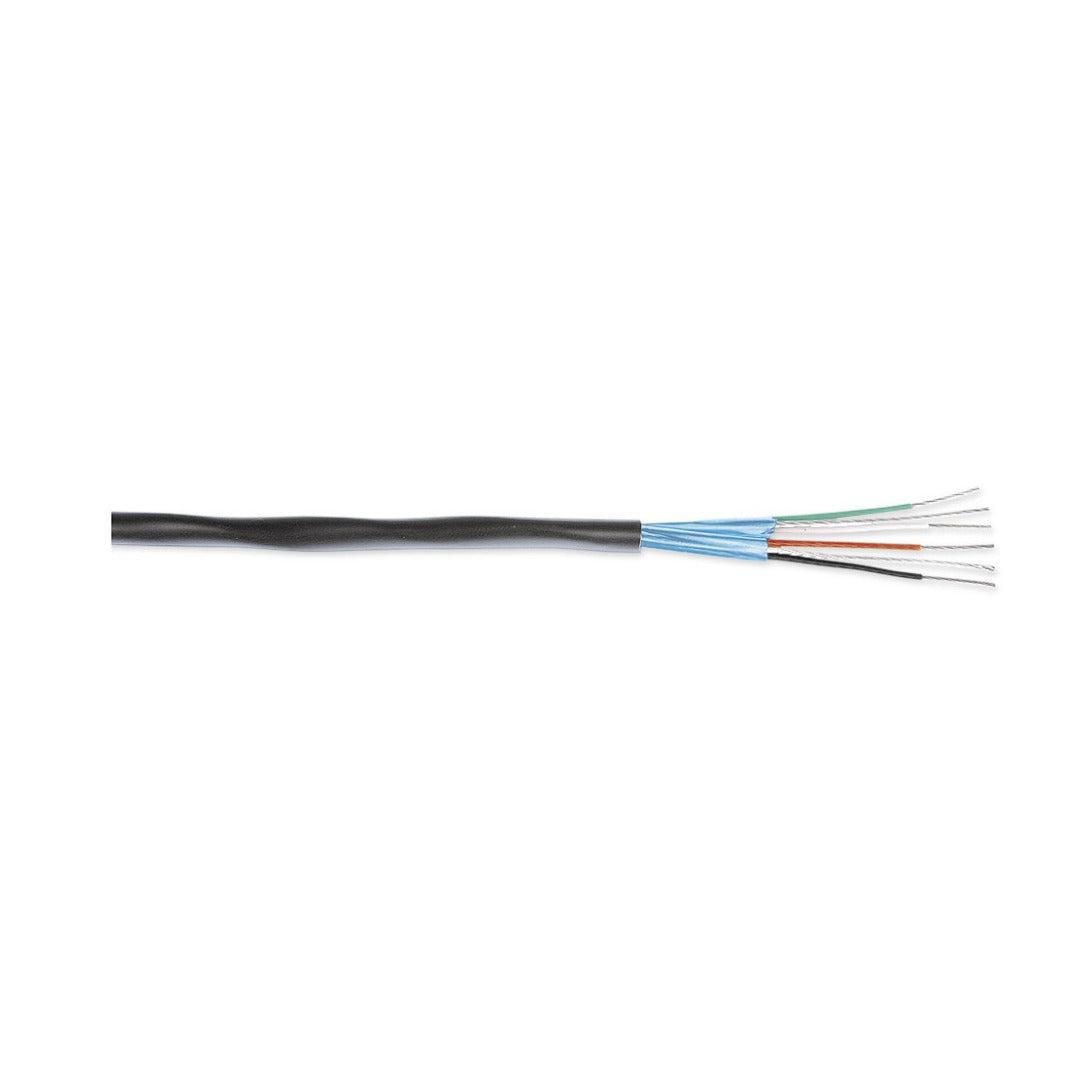

Extron STP20-2P/50 (part number 26-707-50) — a pre-cut 50 ft (15.2 m) length of plenum-rated two-pair 20 AWG shielded control and audio cable.

Not every plenum run justifies a 1,000 ft reel. This is the short-length option in the Extron STP20-2 family: the same construction as the full spool, cut to 50 ft so a single ceiling drop or rack-to-rack jumper does not tie up bulk stock. Four 20 AWG tinned copper conductors form two color-coded twisted pairs, red/black and green/white, with one tinned copper drain wire under an aluminum foil shield. Foamed FEP insulation, PVC inner jackets and a blue fire-resistant PVC outer jacket give it the NEC CMP listing needed above a return-air ceiling.

Key Capabilities

• Pre-cut 50 ft (15.2 m) length — no spool handling, no leftover partial reel.
• Two shielded twisted pairs of 20 AWG tinned copper, 0.038 in (0.97 mm) per conductor.
• NEC CMP plenum listing with C(UL) 60 °C for air-handling spaces.
• Aluminum foil shield at 100 percent coverage with a tinned copper drain wire.
• 0.150 in (3.81 mm) nominal outside diameter; 45 ohms nominal impedance.
• Blue fire-resistant PVC outer jacket over foamed FEP insulation and PVC inner jackets.

Where It Is Used

Single-room retrofits and service calls where a plenum path is required but the distance is short: a projector or speaker drop in a classroom or clinic, a control link between adjacent racks, a lectern-to-ceiling run in a training room, or a spare on-truck length for punch-list work in plenum-governed buildings.

Specifications at a Glance

• Length: 50 ft (15.2 m), pre-cut plenum
• Conductors: 2 shielded twisted pairs, 20 AWG tinned copper, 0.038 in (0.97 mm)
• Nominal core OD 0.050 in (1.27 mm); nominal overall OD 0.150 in (3.81 mm)
• Jacket: blue fire-resistant PVC, plenum; NEC CMP, C(UL) 60 °C

Note from Extron: the plenum bulk cable in this family is rated for North America and is not certified for use in most European countries.

Also referenced as Extron STP202P50, STP20-2P-50, part number 2670750.
