Extron STP20/1000 (part number 22-157-03) — 1,000 ft of single-pair 20 AWG shielded serial control and audio cable, supplied as a non-plenum bulk spool.

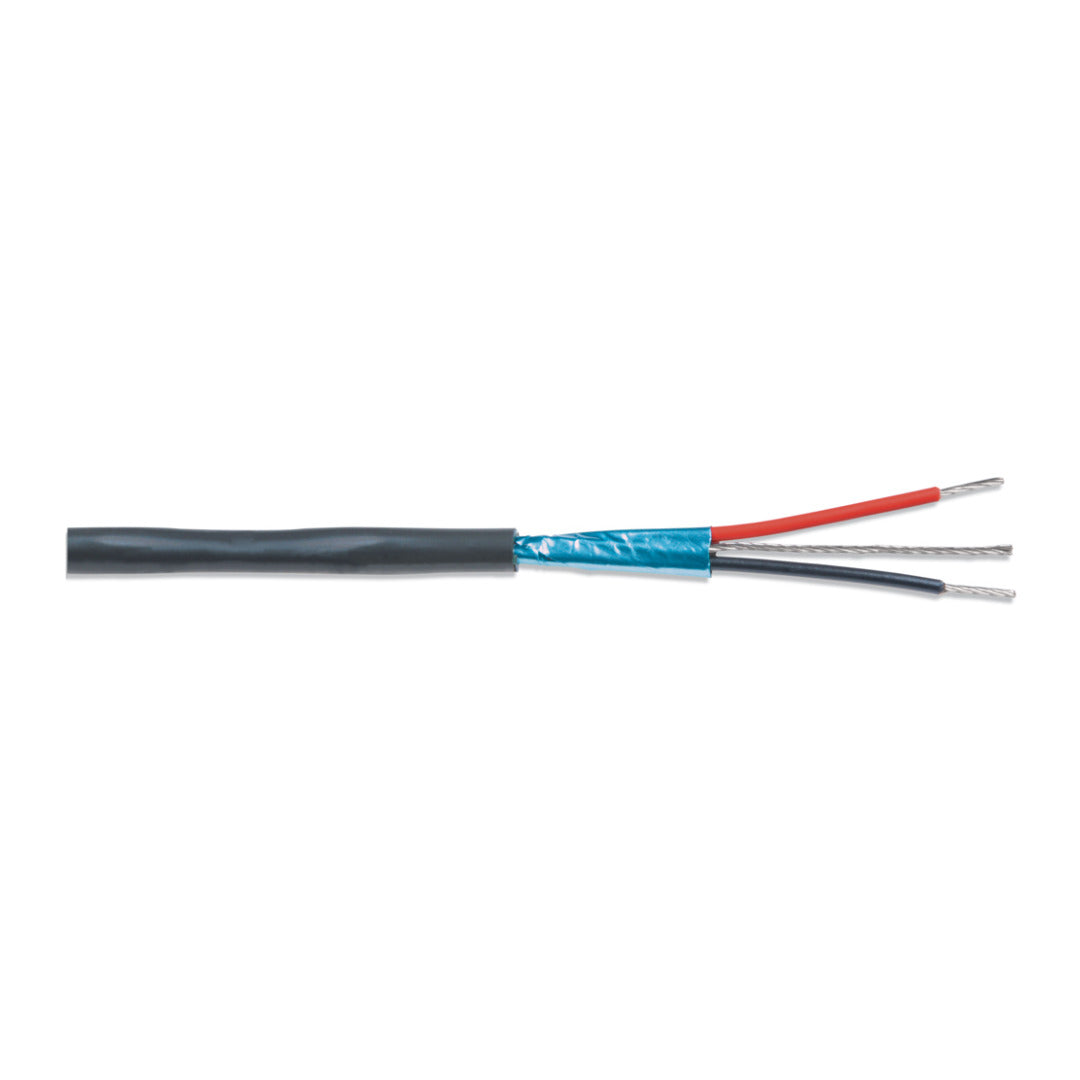

Where the 22 AWG members of the STP Series are chosen for tight pathways, the STP20 trades a little bulk for heavier copper: one twisted pair of 0.038 in tinned copper conductors, color coded red and black, riding inside a 100 percent aluminum foil shield. The tinned copper drain wire is bonded to the jacket, which means a single strip exposes both the pair and the ground path. Polypropylene insulation, a PVC inner jacket and a gray PVC outer jacket bring the finished cable to a 0.214 in nominal diameter.

Key Capabilities

• Heavier 20 AWG conductors, 0.038 in (0.97 mm) tinned copper, in one shielded twisted pair.
• Full 100 percent aluminum foil shield paired with a bonded tinned copper drain wire.
• Nominal impedance of 45 ohms.
• Non-plenum gray PVC jacket carrying NEC CM and C(UL) 60 °C ratings.
• 1,000 ft (304.8 m) on a self-dispensing spool with a 19 lb shipping weight.
• Sequential numbering printed on the SuperFlex jacket so length checks happen at the pull, not afterward.

Where It Is Used

This is the spool integrators keep on the truck for long RS-232 and audio home runs in ordinary construction: divisible ballrooms, university lecture capture, municipal chambers, house-of-worship platforms, and the equipment-room trunking that ties control processors to amplifiers and displays across a campus.

Specifications at a Glance

• Conductors: 1 shielded twisted pair, 20 AWG tinned copper, 0.038 in (0.97 mm)
• Nominal core OD 0.070 in (1.78 mm); nominal overall OD 0.214 in (5.44 mm)
• Jacket: gray PVC, non-plenum; NEC CM, C(UL) 60 °C
• Standard length 1,000 ft (304.8 m); shipping weight 19 lb (8.6 kg)

Also referenced as Extron STP201000, STP20-1000, part number 2215703.
