Extron SM 26 6.5 in Surface Mount Speaker Pair - Black 60-1308-02
Extron SM 26 6.5 in Surface Mount Speaker Pair - Black 60-1308-02
Extron SM 26 Surface Mount Speaker
- • 65 Hz to 19.2 kHz range, 115 degree horizontal / 55 degree vertical coverage
- • 60 W rms pink noise / 120 W rms program per pair
- • Patented SpeedMount concealed mounting - slide-on install, no exposed hardware
- • 6.5 in long-throw woofer with dual tuned bass reflex ports, 1.0 in silk dome tweeter
- • Built for division-of-labor installs between low-voltage and AV contractors
- • Black high-impact enclosure; optional yoke or pivot mount available
- • 5-year Extron parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

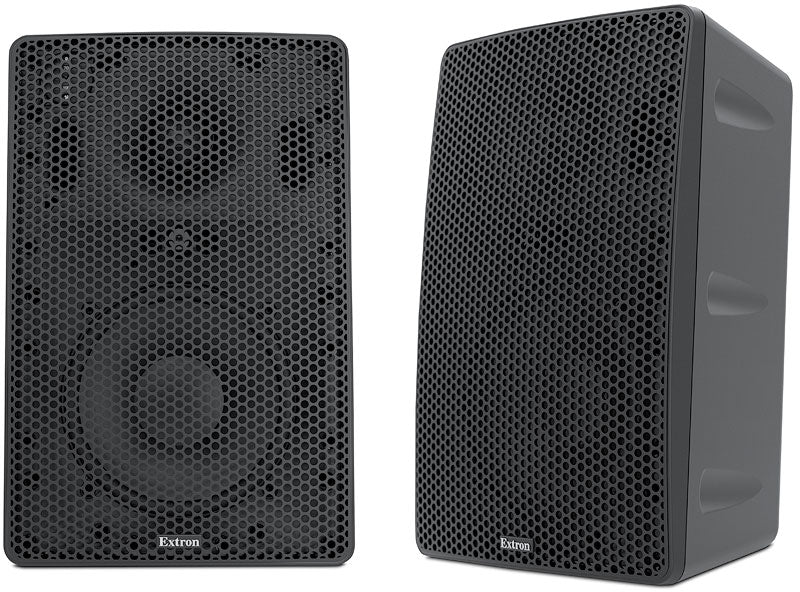

Extron SM 26 (part number 60-1308-02, black) — a 6.5 in two-way surface mount speaker pair built around Extron's patented SpeedMount concealed mounting system.

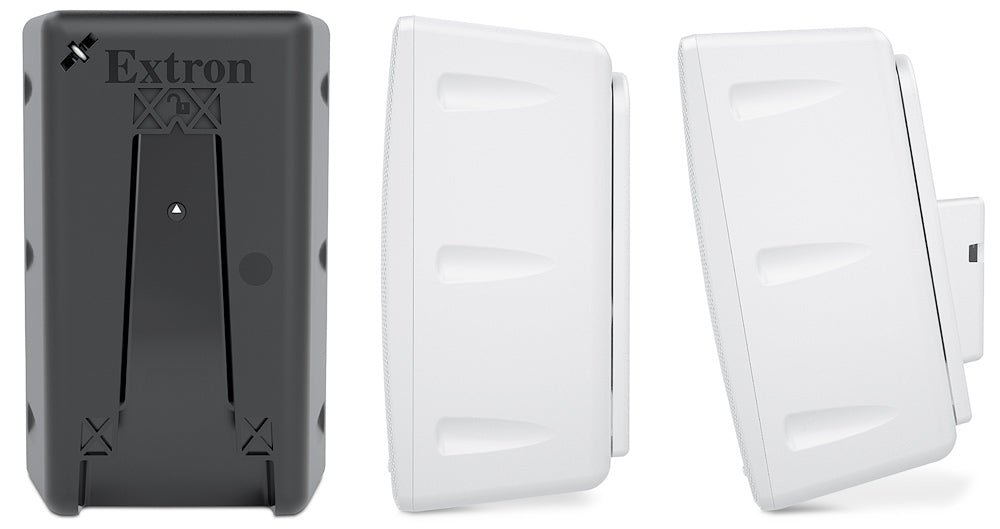

Surface-mount speakers usually mean visible screws and a low-voltage crew waiting on the AV integrator to finish wiring before the room can close up. The SM 26 splits that into two independent steps: a low-voltage contractor installs the mounting plate and terminates cable to its integrated contacts during rough-in, then the AV contractor simply slides the speaker onto the plate later, mating the electrical contacts automatically. A 6.5 in long-throw woofer with dual tuned bass reflex ports pairs with a 1.0 in silk dome tweeter for full-range coverage from a single enclosure.
Key Capabilities
- 65 Hz to 19.2 kHz frequency range (-10 dB, full space).
- 60 W rms pink noise / 120 W rms continuous program per pair.
- 115° horizontal / 55° vertical coverage from the 6.5 in woofer and 1.0 in tweeter.
- Patented SpeedMount slide-on mounting separates rough-in from final install.
- Includes 0° mounting plate and 10° mounting adapter for flexible orientation.
- Optional yoke or pivot mount for wider aiming angles.
Where It Is Used
Classrooms, conference rooms, exercise facilities and retail spaces that need a clean-looking surface speaker and a division-of-labor install between low-voltage and AV contractors.
Specifications at a Glance
- Enclosure (speaker only): 12.98 in H x 8.45 in W x 6.45 in D
- Weight: 7.5 lbs each (8.4 lbs with 0° mounting plate)
- Nominal impedance: 8 ohms; sensitivity 87 dB SPL, 1 W / 1 m
- Input: 2 recessed pins on speaker, Euro-style terminal block on mounting plate
- Warranty: 5 years parts and labor
Also referenced as Extron SM26, SM-26, part number 60130802.
