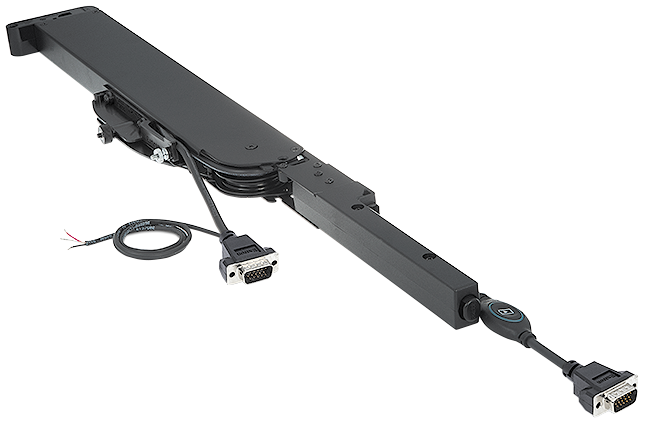

Extron Retractor SM VGA (part number 70-1065-15) — the analogue member of the Retractor SM family, fitted with a VGA Show Me cable on a variable-speed retraction mechanism.

Everything about the module is the same as its digital siblings except the signal it carries. A 15-pin HD cable pulls out of the enclosure to any length up to three feet and stays put; the Share button on the connector tells the collaboration switcher to take that input and lights so the room knows which position is live; a press of the release winds the cable back in. The mechanism is tested past 5,000 cycles, and the module weighs 3.5 lbs in a metal and plastic housing. Extron now lists this part as retired.

Key Capabilities

• VGA Show Me cable on a variable-speed retraction mechanism
• 15-pin HD male to 15-pin HD male, rated up to 1080p
• Cable extends up to 3 ft (90 cm) and holds at a user-set length

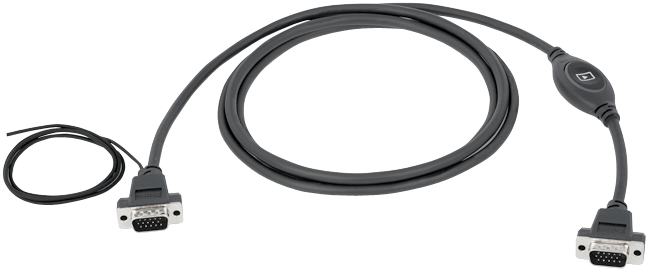

• 24 in control and tally pigtail with an illuminated Share button
• Mechanism tested to exceed 5,000 cycles
• 3 years parts and labour, including the preinstalled cable assembly

Where It Is Used

Collaboration tables in schools, libraries and meeting rooms that still have to accept VGA laptops, installed inside Cable Cubby enclosures alongside digital Retractor SM modules so a single table serves both source types.

Specifications at a Glance

• Enclosure: 4.3 in H x 1.2 in W x 26.9 in D, metal and plastic
• Product weight: 3.5 lbs (1.6 kg)
• Cable: 30 V, UL rated, 80 °C temperature rating
• Regulatory: RoHS, WEEE

Also referenced as Extron RetractorSMVGA, Retractor-SM-VGA, part number 70106515.
