Extron Retractor SM HDMI (part number 70-1065-46) — a variable-speed cable retraction module with a pre-loaded HDMI Show Me cable, built for collaboration tables that get used all day.

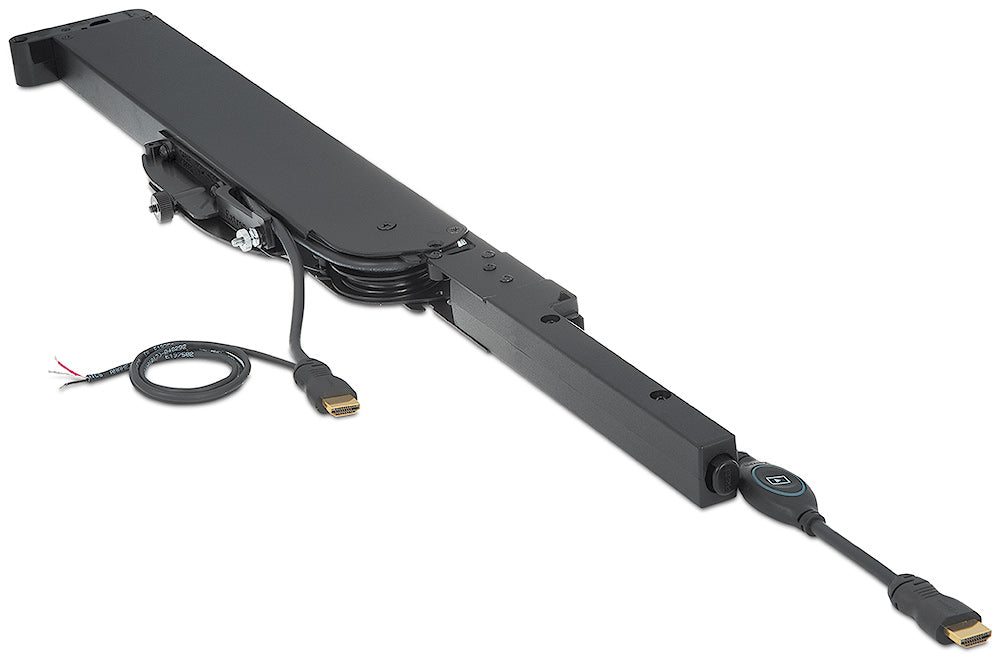

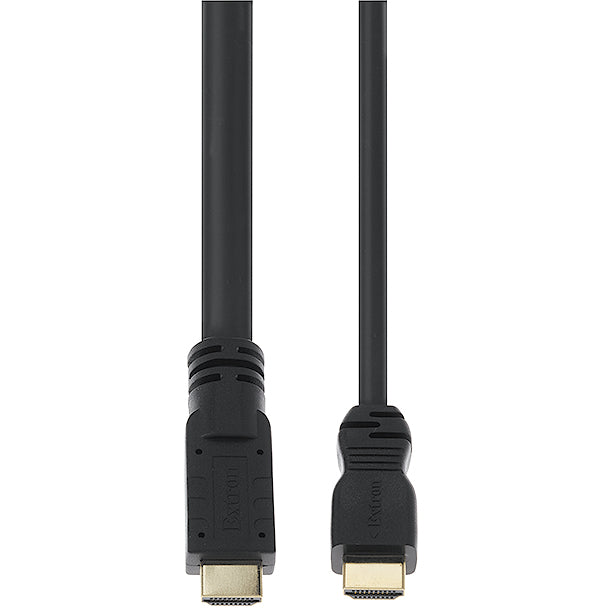

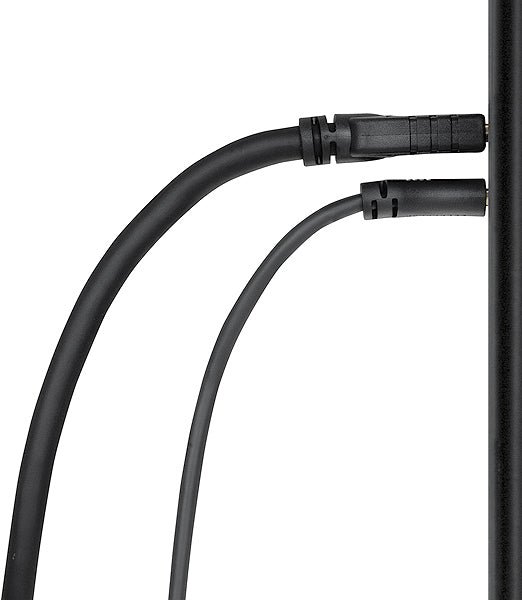

The module lives below the work surface inside a cable access enclosure and presents one thing to the user: a cable and a lit button. Pull the cable out to any length up to three feet and it holds there; press the Share button and the switcher selects that input, with the button staying lit as confirmation; press the release and the cable draws back in. The cable is continuous and pre-installed, so extension length has no effect on performance, and Extron tests the mechanism to more than 5,000 cycles. A six-foot pigtail on the system end reaches under-table electronics or a floor box without a joint.

Key Capabilities

• Passes video signals up to 4096 x 2160 at 30 Hz
• Cable extends up to 3 ft (90 cm) and holds at any position
• Share button lights as it switches the source to the main display
• Mechanism tested to exceed 5,000 retraction cycles
• 6 ft (1.8 m) system-end pigtail for under-table connection
• 3 years parts and labour, including the preinstalled cable assembly

Where It Is Used

Schools, university libraries, huddle rooms and conference tables running Extron collaboration systems, mounted inside Cable Cubby Series, NBP 1200C or TLP Pro 835C enclosures, or under the surface using the TMK 120 R Table Mount Kit. A Cable Cubby mount kit is required to complete a Cable Cubby installation.

Specifications at a Glance

• Enclosure: 4.3 in H x 1.2 in W x 26.9 in D, metal and plastic, 3.5 lbs (1.6 kg)
• Standards: HDMI 2.0, DisplayPort 1.2, HDCP 1.4 and 2.3
• Maximum HDMI data rate: 10.2 Gbps, 3.4 Gbps per colour
• Regulatory: RoHS, WEEE

Also referenced as Extron RetractorSMHDMI, Retractor-SM-HDMI, part number 70106546.
