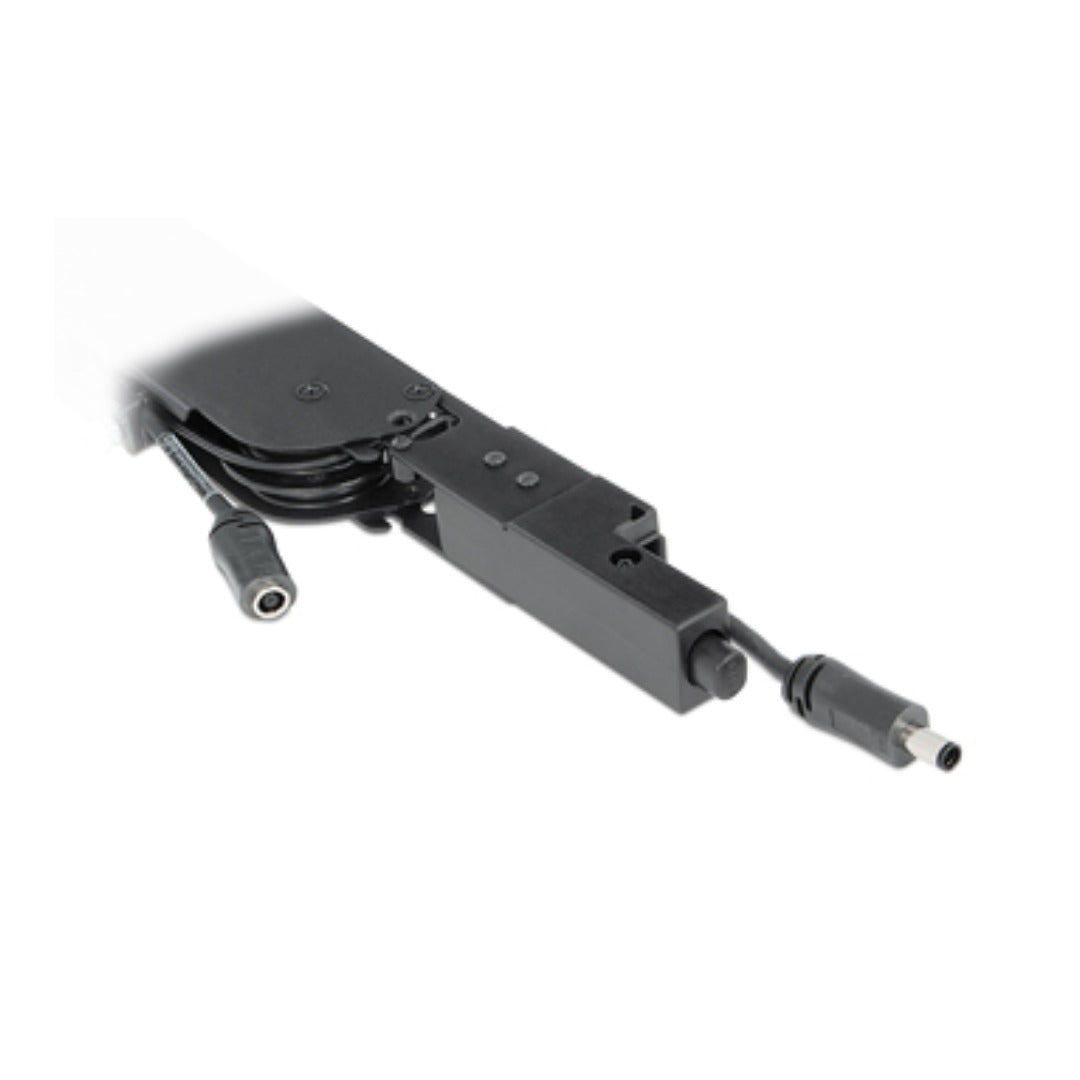

Extron Retractor DC (part number 70-1065-10) — the DC power version of Extron's retracting cable module for table enclosures.

Most Retractor modules carry signal. This one carries DC power, so a device on the table can be fed from a supply mounted underneath without a permanent cable draped across the surface. The module fits the same Cable Cubby, AVEdge 100 and TMK 120 R hardware as the rest of the series, uses the same push-button release, and offers the same commissioning-time speed adjustment — more than 50 steps between 1.5 and 4.0 seconds. Extron tests the mechanism to exceed 7,500 cycles and warrants the pre-installed cable with the module.

Key Capabilities

• DC power cable that extends up to 3 feet (90 cm) and holds at the set length
• Push-button release winds the cable back into the enclosure
• Retraction speed adjustable across 50-plus steps, 1.5 to 4.0 seconds
• Mounts vertically, horizontally or 30 degrees off-vertical in a Cable Cubby
• Metal and plastic enclosure, 22.7 in H x 1.2 in W x 4.7 in D, 2.8 lbs
• Tested to exceed 7,500 extension and retraction cycles

Where It Is Used

Conference tables, lecterns, courtroom benches and collaboration furniture where a display, camera or control panel on the surface needs DC power from a supply hidden below. It keeps the power run tidy and lets the table return to a clean top between sessions.

Specifications at a Glance

• Cable extension: up to 3 feet (90 cm)
• Enclosure: 22.7 in H x 1.2 in W x 4.7 in D
• Weight: 2.8 lbs (1.3 kg)
• Life expectancy: tested to exceed 7,500 cycles
• Warranty: 3 years parts and labor, including the pre-installed cable assembly

Also referenced as Extron Retractor-DC, part number 70106510.
