Extron PVS 201D (part number 42-307-13) — a 2+2 input PoleVault Digital classroom AV system that mounts the electronics on the projector pole.

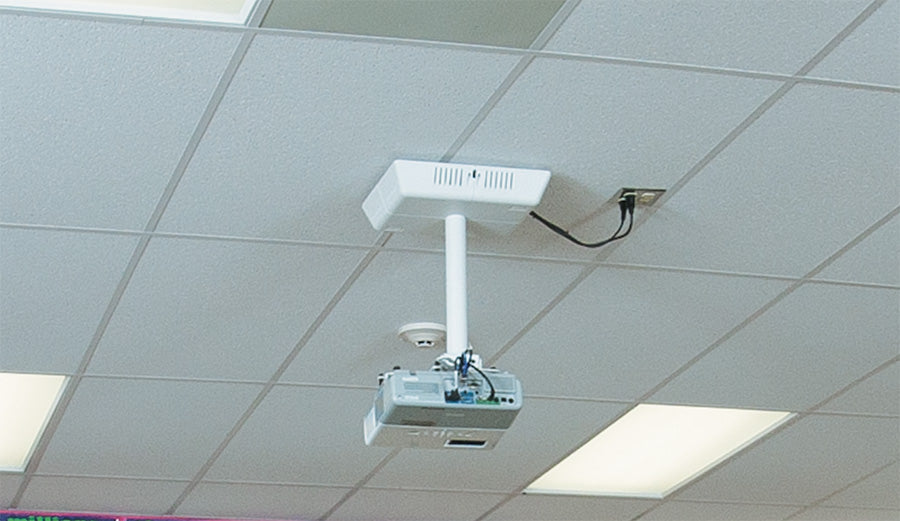

PoleVault put the switcher where the projector already is. The PMK 560 kit clamps the PVS 407D and its power supply to a standard 1.5 in NPT projector pole, or to any pole between 1.85 and 1.95 in outside diameter, and covers them with high-impact plastic plates. That removes the need for a rack, a ceiling enclosure or a wall cabinet: the room needs only a control panel, input wallplates and speakers.

Key Capabilities

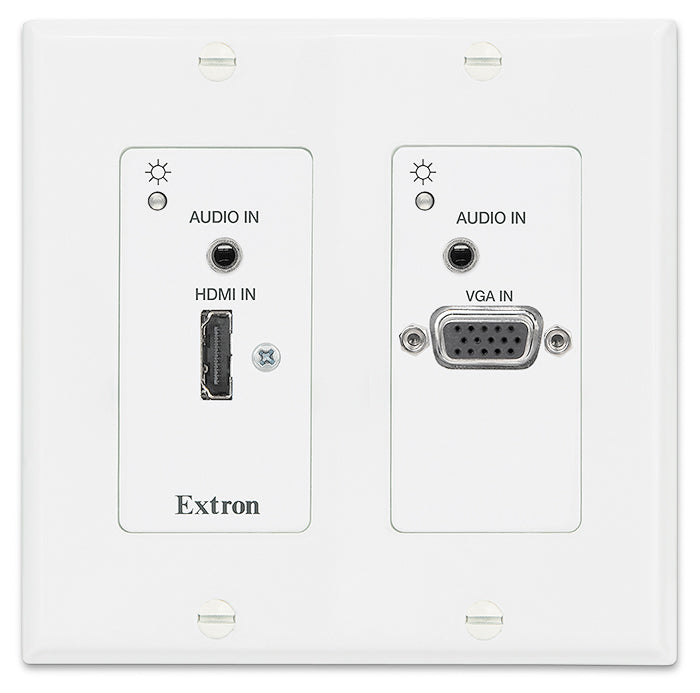

Two local HDMI inputs plus two twisted pair wallplate inputs cover up to six classroom sources
Video to 4096x2160 at 30 Hz, or 4K/UHD at 60 Hz with 4:2:0 chroma subsampling
Class D amplifier rated 25 watts rms per channel into 4 or 8 ohms, 20 Hz to 20 kHz
Draws 23.5 watts at 12 VDC, or 27.1 watts including the external power supply
PMK 560 pole kit takes 15 lbs (6.8 kg) and weighs just 2.4 lbs (1.1 kg)
Wallplate links reach 150 ft (46 m) at 2K, or 130 ft (40 m) at 4K/30 Hz over XTP DTP 24 cable
Switcher is UL 2043 listed for use in plenum airspaces, power supply excluded

Where It Is Used

Projector-based classrooms and training rooms of the kind found across school districts, community colleges, corporate learning centres and hospital education departments — rooms where the projector hangs from a drop pole and the AV electronics may as well hang with it.

Specifications at a Glance

Configuration: 2+2 input digital PoleVault
Switcher: Extron PVS 407D, 1.9 x 13.5 x 3.5 in (48 x 343 x 89 mm), 2.9 lbs (1.3 kg)
PMK 560 pole mount: 3.0 x 15.4 x 11.9 in (76 x 391 x 302 mm), 2.4 lbs (1.1 kg)
Controller: MLC Plus 100 button panel
Warranty: 3 years parts and labor

Also referenced as Extron PVS201D, PVS-201D, part number 4230713. Extron has retired this system; the suggested replacement is the PlenumVault Digital range.

Specifications

Part Number: 42-307-13

Manufacturer: Extron

Model: PVS 201D

Condition: New

Configuration: 2+2 input digital PoleVault

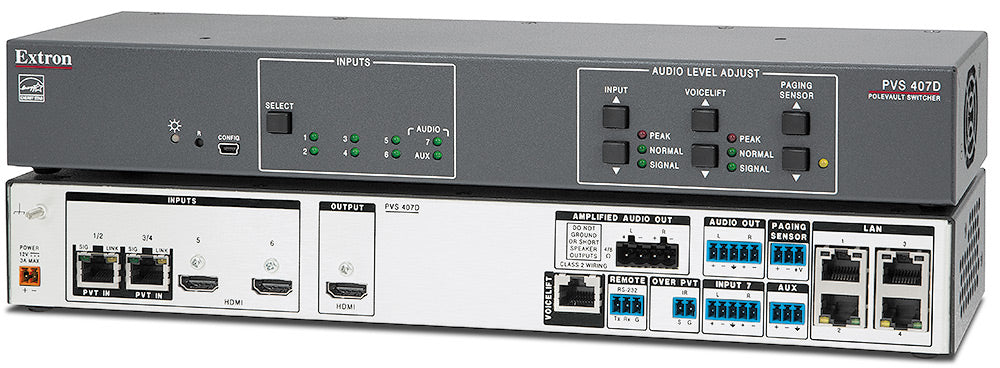

System Switcher: Extron PVS 407D switcher/power amplifier

Video Inputs: Inputs 1-6 HDMI (or DVI) digital video; inputs 2 and 4 can be analog RGB

Video Input Connectors: 2 female RJ-45, 2 female HDMI type A

Resolution Range: Up to 4096x2160 @ 30 Hz, 3840x2160 @ 30 Hz; 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling

Maximum Data Rate: 10.2 Gbps (3.4 Gbps per color)

Maximum Pixel Clock: 300 MHz

Frame Rate: 24, 25, 30, 50 or 60 fps

Chroma Sampling: 4:4:4, 4:2:2 or 4:2:0

Color Bit Depth: 8 bits per color

Video Standards: DVI 1.0, HDMI 1.4, HDCP 1.4, CEA-861E

Video Output: 1 single link HDMI (or DVI-D), 1 female HDMI type A

Audio Inputs: 2 proprietary signals from Extron PVT Series wallplate transmitters; 1 stereo balanced/unbalanced (input 7)

Audio Input Connectors: 2 female RJ-45; 1 female 3.5 mm captive screw connector, 5 pole

VoiceLift Receiver Input: 1 female RJ-45, -10 dBV (316 mVrms) nominal level

Aux Input: 1 female 3.5 mm captive screw connector, 3 pole

Amplifier Type: Class D

Amplifier Output Power: 25 watts (rms) per channel (1 watt tolerance) at 4/8 ohms, 20 Hz to 20 kHz, 1% THD

Amplifier Impedance: 4/8 ohms single channel; 4/8 ohms stereo

Ethernet Switch: Unmanaged; 4 female RJ-45; 10/100Base-T with autodetect

Control: MLC Plus 100 MediaLink Plus button panel controller

Twisted Pair Transmission: Up to 150' (46 m) for 2K, or up to 130' (40 m) for 4K/30 Hz, using Extron XTP DTP 24 cable

Included Cable Length: 35' (11 m)

Cable Requirements: Solid conductor, 24 AWG or better; 400 MHz bandwidth and above; STP

Termination Standard: TIA/EIA T568A or T568B; included Extron cables are T568B

Power Supply: External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 4 A, 48 watts or 12 VDC, 4.2 A, 50 watts

Power Input Requirements: 12 VDC, 3 A

Power Consumption: Device 23.5 watts at 12 VDC; device and power supply 27.1 watts at 110-240 VAC, 50-60 Hz

Switcher Mounting: Pole mount, with included pole mounting kit

Switcher Enclosure Dimensions: 1.9 in H x 13.5 in W x 3.5 in D (48 x 343 x 89 mm)

Switcher Weight: 2.9 lbs (1.3 kg) including power supply (1.1 lbs / 0.5 kg)

PMK 560 Pole Mount Kit: Mounts to round projector poles - standard 1.5 in (38 mm) NPT pipe, or pipe of 1.85 in to 1.95 in (47 to 50 mm) outside diameter; 15 lbs (6.8 kg) maximum load; aluminum base plate with high impact plastic covers; 3.0 in H x 15.4 in W x 11.9 in D (76 x 391 x 302 mm); 2.4 lbs (1.1 kg)

PCM 340 Projector Drop Ceiling Mount: 50.0 lbs (22.7 kg) maximum load; 1.5 in to 23.0 in drop with 21.5 in adjustability in 0.5 in steps; 25 in pipe, 1.5-11.5 NPT; 4.5 lbs (2.1 kg); OSHPD anchorage pre-approval

UPB 125 Projector Bracket: 40 lbs (18.1 kg) maximum load; plus or minus 5 degrees roll, plus or minus 20 degrees pitch, 360 degrees yaw; 3.2 in H x 7.0 in W x 7.0 in D; arm radius extension 7.8 in (198 mm) from the corner attachment; 2.7 lbs (1.2 kg)

FF 120 Flat Field Speakers: 16 W (rms) continuous pink noise, 32 W (rms) continuous program; 170 degree conical coverage; 8 ohms per speaker; drops into a 2' x 2' or 2' x 4' suspended tile

Regulatory Compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI; UL listed for plenum airspaces per UL 2043 (excluding the power supply); UL 60065 safety; RoHS, WEEE

Warranty: 3 years parts and labor

Lifecycle Status: Retired by Extron; suggested replacement is the PlenumVault Digital Systems range
