Extron PS 910P Power Supply
- • Dedicated 9 VDC, 1 A output at 9 watts
- • Coaxial DC plug output, tip positive
- • Universal 100-240 VAC input, 50-60 Hz
- • Draws just 11.2 W at full load, 0.3 W idle
- • 1,000,000 hour rated MTBF
- • ZipClip 100 mount for rack, table, or pole
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

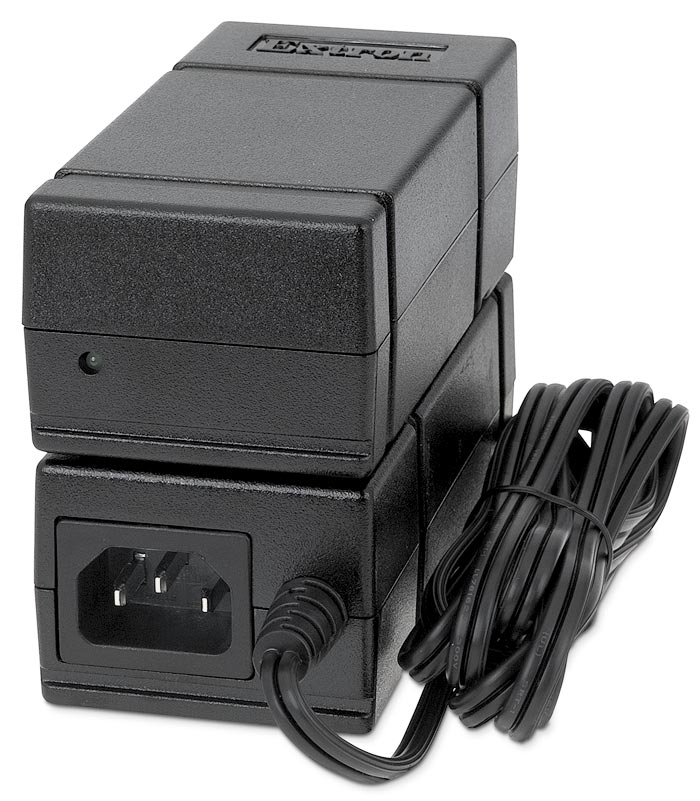

Extron PS 910P (part number 70-777-01) — a single-output 9 VDC, 1 A external supply terminated in a coaxial DC plug.
The 910P is the entry-voltage member of Extron's compact external supply family, sized for accessories and interfaces that call for exactly 9 volts through a barrel jack rather than a screw terminal. Tip is positive, sleeve is negative. It runs from universal 100-240 VAC input, draws roughly a third of a watt with nothing connected, and stays around 11 watts at full load.
Key Capabilities
- 9 VDC output at 1 A, 9 watts rated
- Coaxial DC plug output, tip positive
- Universal 100-240 VAC, 50-60 Hz input
- Full-load draw of just 11.2 watts, 0.3 A
- Rated MTBF of 1,000,000 hours

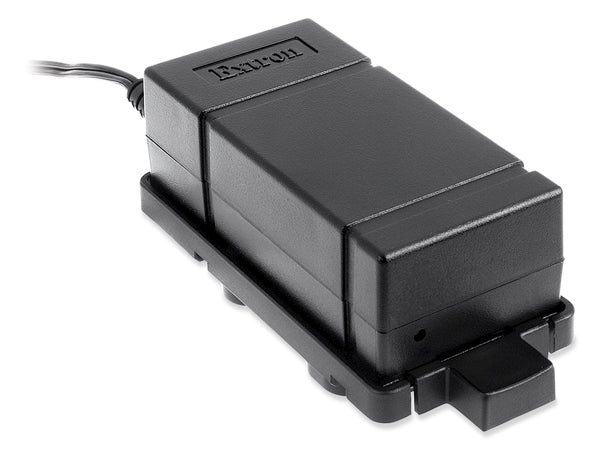

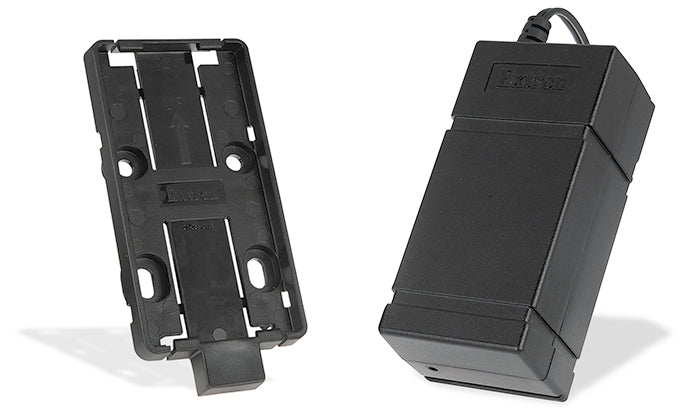

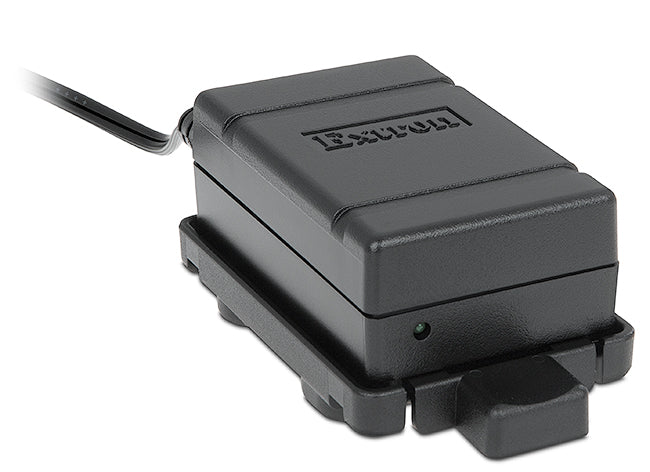

- Mounts to racks, furniture, or poles with the included ZipClip 100
Where It Is Used
Replacement or spares work on Extron interfaces and small accessories that need a dedicated 9 volt barrel-jack supply — equipment closets, lecterns, and under-table AV enclosures.
Specifications at a Glance
- Output: 9 VDC, 1 A, 9 W, coaxial DC plug
- Input: 100-240 VAC, 50-60 Hz
- Enclosure: 1.7 in H x 2.2 in W x 4.5 in D, plastic
- Weight: 0.5 lb (0.3 kg)
- Warranty: 3 years parts and labor
Also referenced as Extron PS910P, PS-910P, part number 7077701.
