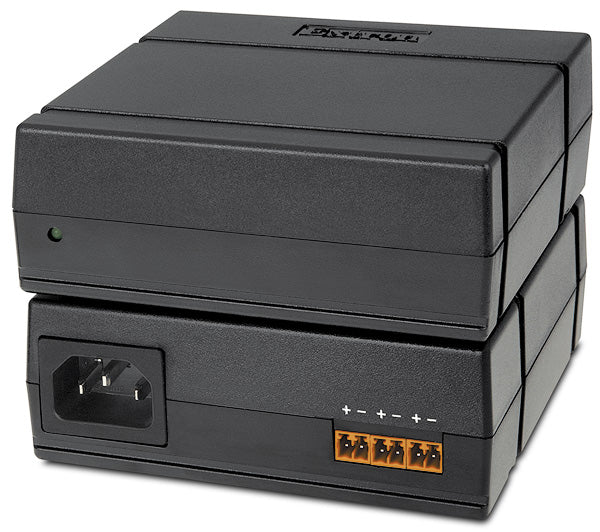

Extron PS 1242 (part number 70-1246-01) — the three-port, 50 watt member of the PS Series desktop power supply range.

One AC outlet, three DC feeds, no per-port ceiling. That last point is what separates the PS 1242 from a multi-way splitter: the full 4.2 amps at 12 volts is available across the three 2-pole captive screw ports in any combination the design calls for. Extron packs the supply into a quarter-rack 1U plastic case with a patent pending enclosure profile, ships it with a ZipClip 200 bracket, and includes a detached 6 foot DC cable with pre-sliced ends, three orange 3.5 mm captive screw connectors and a DC plug so the installer can make up whichever output leads the job needs. Average efficiency is 90.75%.

Key Capabilities

• 12 VDC at 4.2 A, 50 watts shared across all three outputs.
• Three 2-pole captive screw ports with no per-port current limitation.
• Universal 100 to 240 VAC input; 56 watts and 1.5 A maximum at full load.
• Average efficiency 90.75%, and 88.48% at a 10% load on 230 VAC.
• Quarter-rack 1U enclosure, 1.7 in H x 4.3 in W x 4.5 in D, 0.8 lb.
• Supplied with a 6 ft DC cable, three orange captive screw connectors and a DC plug.

Where It Is Used

Dense AV racks where three low-power Extron endpoints would otherwise need three separate bricks, lecterns and podiums with limited outlet access, control room consoles, digital signage cabinets, and classroom builds trying to keep the number of mains connections down.

Specifications at a Glance

• Power output: 12 VDC, 4.2 A, 50 watts, shared between all three outputs
• Power input: 100-240 VAC, 50-60 Hz; 56 watts, 1.5 A max at full power
• Enclosure: high impact plastic, 1.7 in H x 4.3 in W x 4.5 in D, quarter rack
• Product weight: 0.8 lb (0.4 kg); MTBF 280,000 hours
• Product warranty: 7 years parts and labor

Also referenced as Extron PS1242, PS-1242, part number 70124601.
