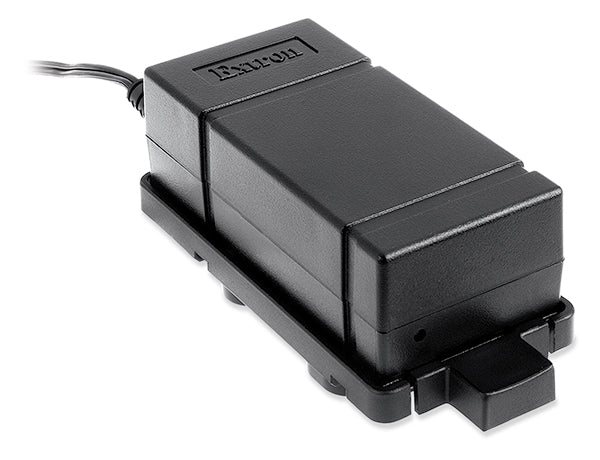

Extron PS 1220 (part number 70-1259-01) — the eighth-rack, 2 amp member of the PS Series desktop power supply line.

Two amps at 12 volts, 24 watts in total, out of a case only 2.2 inches wide. That combination is what makes this the workhorse of the range: it drives Extron endpoints that outgrow a 1.5 A supply while still leaving room for eight units side by side across a single rack shelf. Standby draw is 0.04 watts, the lowest in the PS 12xx family, and Extron measures average efficiency at 91.11%. A ZipClip 100 bracket is included, and threaded inserts in the base let the unit bolt straight to an Extron rack shelf.

Key Capabilities

• 12 VDC at 2 A, 24 watts, on a captive screw connector.
• Attached 3 ft (0.94 m) DC cord on this one-eighth rack 1U model.
• Standby consumption of just 0.04 watts; 27.5 watts at full load.
• Average efficiency 91.11%, and 85.8% at 10% load on 230 VAC.
• ZipClip 100 mounting clip included for rails, furniture and poles.
• Convection cooled with no vents, in high impact plastic.

Where It Is Used

Multi-device AV racks where several eighth-rack supplies share one shelf, lecterns and podiums, control room consoles, digital signage cabinets, and classroom retrofits that need a compliant, mechanically mounted replacement for an aging wall wart.

Specifications at a Glance

• Power output: 12 VDC, 2 A, 24 watts
• Power input: 100-240 VAC, 50-60 Hz; 27.5 watts, 0.6 A max at full power
• Enclosure: high impact plastic, 1.7 in H x 2.2 in W x 4.5 in D, 1U eighth rack
• Product weight: 0.5 lb (0.3 kg)
• Product warranty: 7 years parts and labor

Also referenced as Extron PS1220, PS-1220, part number 70125901.
