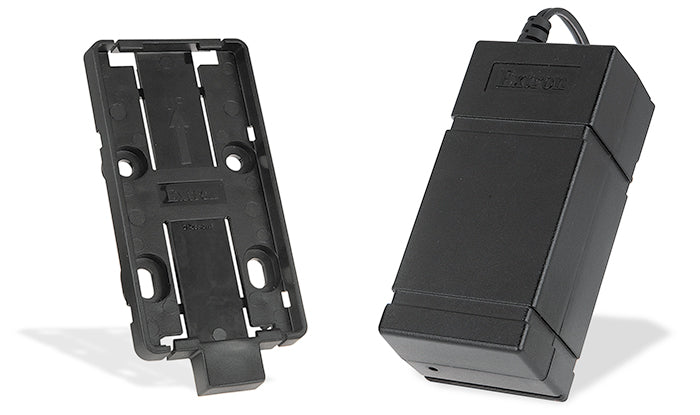

Extron PS 1215 C (part number 70-1174-01) — an eighth-rack PS Series desktop supply delivering 12 VDC at 1.5 A.

This is the middle rung of Extron's 12 volt desktop range: 18 watts on a single captive screw output, enough headroom for devices the 0.5 A PS 1205 C cannot carry, without stepping up to a quarter-rack chassis. The 1U eighth-rack enclosure is high impact plastic, cooled by convection with no vents, and it snaps into the supplied ZipClip 100 bracket for a mechanical mount on a rack rail, a lectern or a table leg. Idle consumption is 0.05 watts, and Extron measures average efficiency at 87.7%.

Key Capabilities

• 12 VDC at 1.5 A, 18 watts, terminated in a captive screw connector.
• Universal 100 to 240 VAC, 50-60 Hz input; 20.2 watts at full load.
• Efficiency of 87.7% average and 82.87% at a 10% load on 230 VAC.
• Attached 3 ft (0.94 m) DC cord on this one-eighth rack 1U model.
• ZipClip 100 bracket included; also mounts to an Extron rack shelf.
• Calculated MTBF of 400,000 hours with a 7 year Extron warranty.

Where It Is Used

AV racks in classrooms, boardrooms and control rooms; lectern and credenza builds; digital signage enclosures; and retrofit work where a failed third-party brick is being replaced with a supply that can be fixed in place and audited for energy compliance.

Specifications at a Glance

• Power output: 12 VDC, 1.5 A, 18 watts
• Power input: 100-240 VAC, 50-60 Hz; 20.2 watts, 0.5 A max at full power
• Enclosure: high impact plastic, 1.7 in H x 2.2 in W x 4.5 in D, 1U eighth rack
• Product weight: 0.5 lb (0.3 kg); MTBF 400,000 hours
• Product warranty: 7 years parts and labor

Also referenced as Extron PS1215C, PS-1215-C, part number 70117401.
