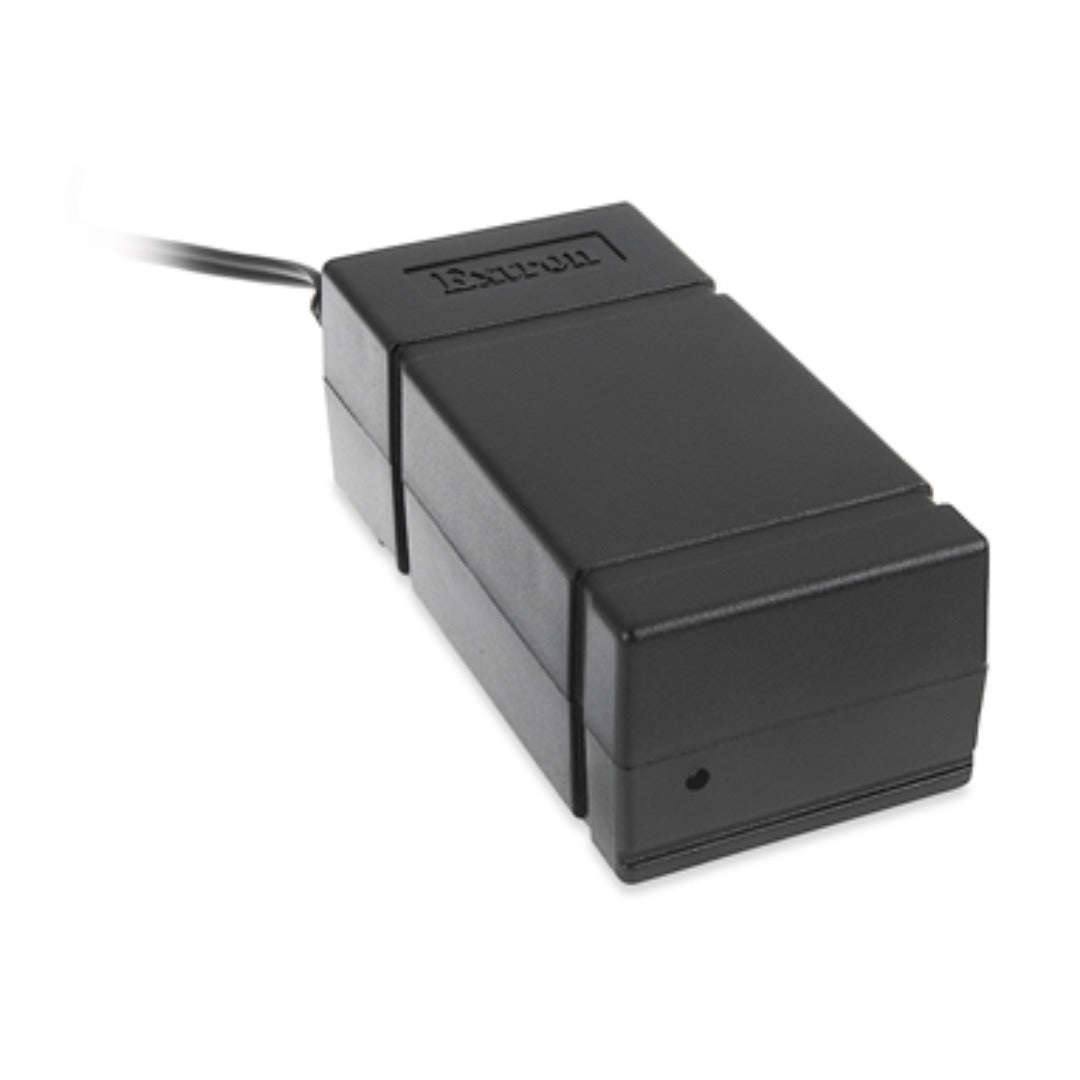

Extron PS 1210P Power Supply
- • Dedicated 12 VDC, 1 A output at 12 watts
- • Coaxial DC plug output, tip positive
- • Universal 100-240 VAC input, 50-60 Hz
- • Draws just 14.6 W at full load, 0.3 W idle
- • 1,000,000 hour rated MTBF
- • ZipClip 100 mount for rack, table, or pole
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron PS 1210P (part number 70-778-01) — a single-output 12 VDC, 1 A external supply terminated in a coaxial DC plug.
This is the barrel-connector counterpart to the PS 1210C: same 12 volt, 1 amp, 12 watt output, but wired to a tip-positive DC plug instead of a screw terminal, for Extron and third-party gear that expects a coaxial jack. It runs from universal 100-240 VAC input, idles under a third of a watt, and stays under 15 watts at full load.
Key Capabilities
- 12 VDC output at 1 A, 12 watts rated
- Coaxial DC plug output, tip positive
- Universal 100-240 VAC, 50-60 Hz input
- Full-load draw of just 14.6 watts, 0.3 A
- Rated MTBF of 1,000,000 hours
- Mounts to racks, furniture, or poles with the included ZipClip 100
Where It Is Used
Replacement or new-build power for Extron interfaces and accessories that terminate in a barrel jack rather than a screw block — lecterns, equipment closets, and under-table AV enclosures.
Specifications at a Glance
- Output: 12 VDC, 1 A, 12 W, coaxial DC plug
- Input: 100-240 VAC, 50-60 Hz
- Enclosure: 1.7 in H x 2.2 in W x 4.5 in D, plastic
- Weight: 0.5 lb (0.3 kg)
- Warranty: 3 years parts and labor
Also referenced as Extron PS1210P, PS-1210P, part number 7077801.
