Extron Power Supply Kit (part number 70-710-02) — the replacement internal power supply for the DMS 1600 modular DVI matrix switcher frame.

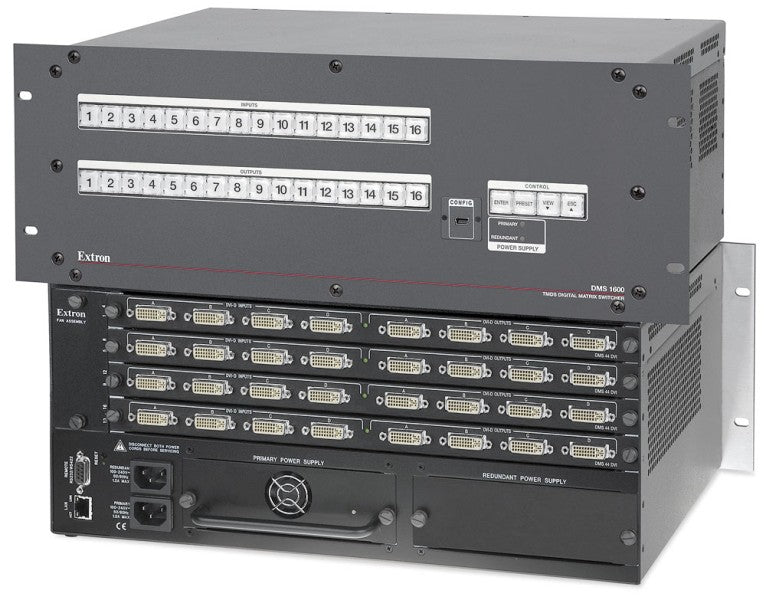

Extron lists this kit against the DMS 1600 specifically: a 4U, four-slot frame that scales from 4x4 up to 16x16 as DVI or fiber boards are added. The frame runs on one internal supply, with a second available as a redundant unit, and Extron builds the DMS 1600 with hot-swappable supplies for continuous-duty installations. Ordering the kit either restores a failed module or adds the redundant half to a frame that shipped with a single supply.

Key Capabilities

• Direct replacement supply for the Extron DMS 1600 modular DVI matrix switcher
• Hot-swappable in the DMS 1600, so routing does not stop for the exchange
• Universal mains input: 100-240 VAC at 50-60 Hz
• Adds or restores the optional redundant supply in a dual-input DMS 1600 frame
• Covers a frame drawing 97 W on one supply and 107 W on the pair, fully loaded with four 4x4 boards

Where It Is Used

DMS 1600 frames route uncompressed DVI in commercial, medical, military and government facilities where a fully digital path matters — imaging review rooms, simulation suites, control rooms and secure briefing spaces. Those sites keep a supply on the shelf so redundancy is never left degraded.

Specifications at a Glance

• Extron part number: 70-710-02
• Fits: Extron DMS 1600, 4U four-slot DVI matrix frame
• AC input: 100-240 VAC, 50-60 Hz
• Frame draw: 97 W primary only, 107 W primary plus redundant

Also referenced as Extron PowerSupplyKit, Power-Supply-Kit, part number 7071002.
