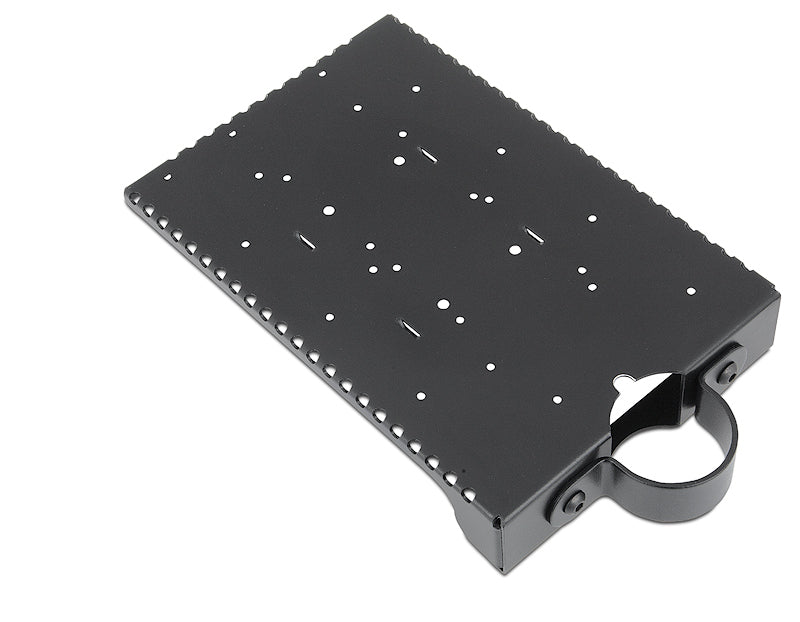

Extron PMK 155 (part number 70-739-12) — a black low profile pole mount kit that hangs a half-, quarter- or eighth-rack device and its power supply from a projector pole.

Extron built the PMK 155 for the tight space between a suspended projector and the ceiling, where a full rack shelf will not fit. A steel plate clamps to a round pole or pipe with an outer diameter of 1.85 to 1.95 inches, and the device bolts to the plate while its external power supply is tie-wrapped underneath, out of the sightline. Extron's own installation guide lists what fits: one 3-inch-deep half-rack device, one 6-inch-deep half-rack device, two 3-inch-deep quarter-rack devices, four 4.5-inch-deep eighth-rack devices, or a single MPA 401 amplifier, all within a 5 lb (2.3 kg) limit.

Key Capabilities

• Clamps to round poles or pipes 1.85 in to 1.95 in (4.7-5.0 cm) outer diameter
• Holds one 3 in or 6 in deep half-rack device, two 3 in quarter-rack devices, four 4.5 in eighth-rack devices, or one MPA 401
• Carries the device's external power supply on tie wraps beneath the plate
• 5 lb (2.3 kg) maximum combined load
• Steel construction, black finish, all mounting hardware included
• Passes ISTA 1A vibration testing in carton

Where It Is Used

Above suspended projectors in classrooms, boardrooms and training spaces, where a scaler, receiver, audio amplifier or similar small device has to travel with the projector rather than sit in a distant rack.

Specifications at a Glance

• Model: Extron PMK 155, part number 70-739-12 (Black)
• Dimensions: 1.6 in H x 9.50 in W x 6.25 in D (4.0 x 24.1 x 15.8 cm)
• Maximum load capacity: 5 lbs (2.3 kg)
• Product weight: 1.6 lbs (0.7 kg); steel
• CE safety; 3 years parts and labor warranty

Also referenced as Extron PMK155, PMK-155, part number 7073912.
