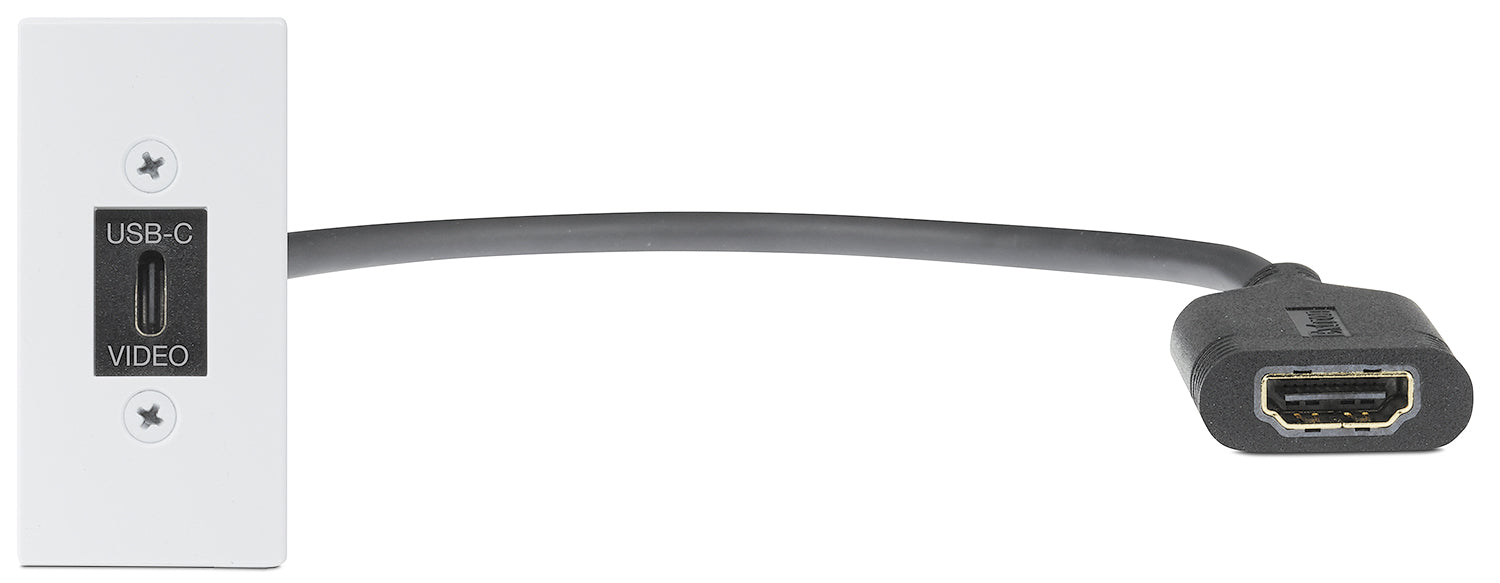

Extron One USB-C Female to HDMI Female on Pigtail (part number 70-1243-13) — the white Flex55 half-size plate that lets a USB-C source running DisplayPort Alt Mode drive an HDMI display at up to 4K/60 with 4:4:4 colour.

Do not confuse this with the MAAP version of the same module. This one is a Flex55 plate: plastic, 2.17" H x 1.08" W x 0.29" D, mounting to Flex55 frames and enclosures or to a EU junction box fitted with a Flex55 mounting kit. The signal path is the same as its MAAP counterpart — HDMI 2.0b, HDCP 2.3, 18 Gbps maximum data rate at 6 Gbps per colour, with EDID, HDCP and audio carried between source and display.

Key Capabilities

• White Flex55 half-size Quick Connect plate for light-scheme installations
• USB-C DisplayPort Alt Mode in, HDMI Type A out, with EDID and HDCP passed
• Up to 4K at 60 Hz with 4:4:4 processing; 18 Gbps maximum data rate
• Chroma sampling 4:4:4, 4:2:2 or 4:2:0 at 8, 10 or 12 bits per colour
• 13.5" (343 mm) pigtail; supports up to 12 ft (3.7 m) each side
• Mounts to Flex55 hardware or a EU box with the Flex55 mounting kit

Where It Is Used

The half-size Flex55 footprint suits joinery and back boxes where a full AAP or MAAP frame will not fit — slim table edges, lectern faces, wall boxes on EU-standard back boxes. In white, it is typically going into a room already finished with white plate hardware and now being upgraded for USB-C laptops.

Specifications at a Glance

• Signal: HDMI 2.0b, HDCP 2.3; 1 DisplayPort (Alt Mode) input on 1 female USB-C
• Resolution: up to 4K at 60 Hz, 4:4:4 processing
• Faceplate: 2.17" H x 1.08" W x 0.29" D (55.0 mm x 27.5 mm x 7.3 mm), plastic
• Pigtail: 13.5" (343 mm), 0.22" (5.5 mm) outer diameter
• Warranty: 3 years parts and labour; RoHS and WEEE compliant

Leave 2" (51 mm) of depth for cable management behind the plate, and keep the pigtail within that bend allowance.

Also listed as One-USB-C-Female-to-HDMI-Female-on-Pigtail, Extron part number 70124313.
