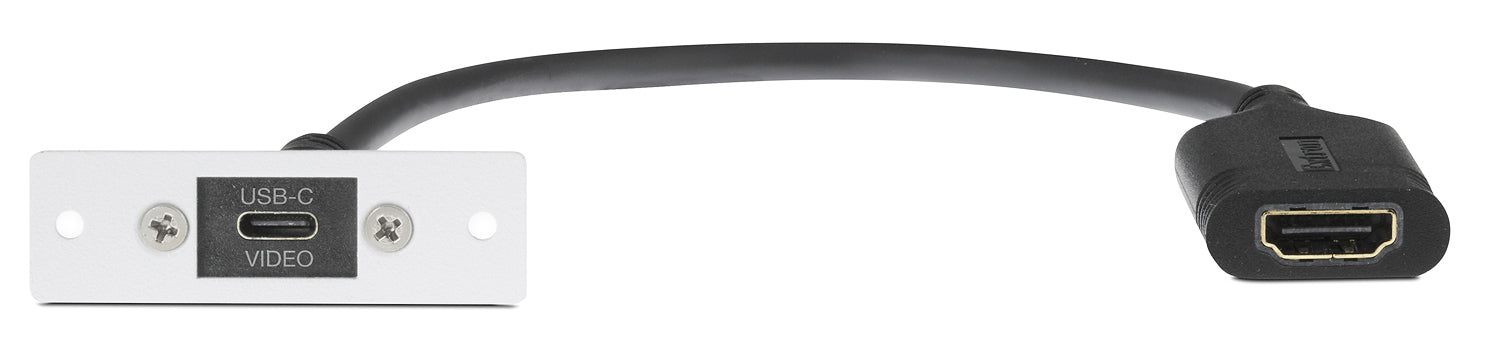

Extron One USB-C Female to HDMI Female on Pigtail (part number 70-1242-13) — the white single-space MAAP module that converts a USB-C source running DisplayPort Alt Mode into an HDMI feed, up to 4K at 60 Hz with 4:4:4 colour.

Identical in function to the black version, this one is finished for rooms specified in light hardware. A USB-C female connector sits at the plate face; a 13.5" (343 mm) lead behind it terminates in an HDMI Type A female connector. EDID, HDCP and audio are carried through, so the display negotiates with the laptop as though the connection had been HDMI end to end. The module handles HDMI 2.0b and HDCP 2.3, with a ceiling of 18 Gbps — 6 Gbps per colour.

Key Capabilities

• White finish for classrooms, training rooms and light-scheme plate arrays
• USB-C DisplayPort Alt Mode in, HDMI Type A out, EDID and HDCP passed through
• Up to 4K at 60 Hz with 4:4:4 processing; 18 Gbps maximum data rate
• Chroma sampling 4:4:4, 4:2:2 or 4:2:0 at 8, 10 or 12 bits per colour
• Supports 12 ft (3.7 m) of cable on both the input and the output side
• Metal single-space MAAP plate weighing under 0.10 lb

Where It Is Used

Rooms that standardised on white Extron plate hardware and are now fitting USB-C-only laptops are the natural home for this part. It goes into table boxes, lectern plates, wall plates and rack plates wherever a MAAP opening exists and the display side of the system is still HDMI.

Specifications at a Glance

• Signal: HDMI 2.0b, HDCP 2.3; 1 DisplayPort (Alt Mode) input on 1 female USB-C
• Resolution: up to 4K at 60 Hz, 4:4:4 processing
• Pigtail: 13.5" (343 mm), 0.22" (5.5 mm) outer diameter
• Faceplate: 0.7" H x 2.2" W x 0.1" D (18 mm x 56 mm x 3 mm)
• Warranty: 3 years parts and labour; RoHS and WEEE compliant

Leave 2" (51 mm) behind the plate for cable management, and keep the pigtail inside that bend allowance.

Also listed as One-USB-C-Female-to-HDMI-Female-on-Pigtail, Extron part number 70124213.
