Extron One USB-C Female to HDMI Female on Pigtail (part number 70-1242-12) — the black single-space MAAP module that takes a USB-C source running DisplayPort Alt Mode and hands it to an HDMI display, at up to 4K/60 with full 4:4:4 colour.

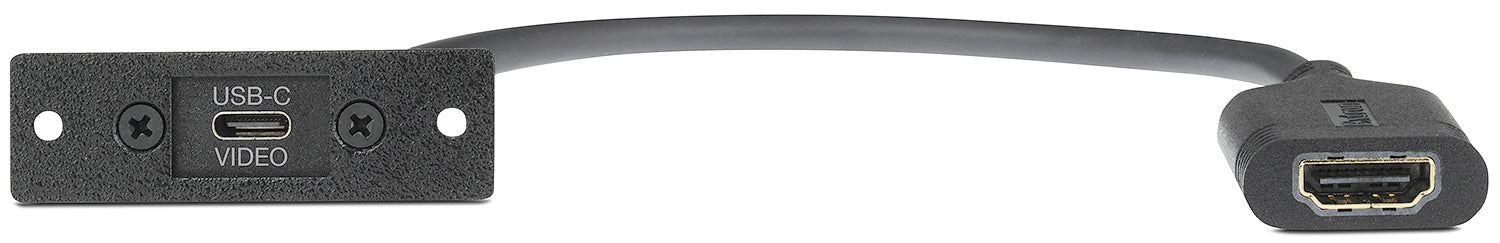

The plate presents a USB-C female connector at the surface. Behind it, a 13.5" (343 mm) lead ends in an HDMI Type A female connector that plugs into the display feed inside the enclosure. EDID, HDCP and audio all pass between source and display, so a laptop with a USB-C output behaves exactly as it would on a native HDMI port. Maximum video data rate is 18 Gbps — 6 Gbps per colour — and the module supports HDMI 2.0b with HDCP 2.3.

Key Capabilities

• USB-C DisplayPort Alt Mode input to HDMI Type A output, EDID and HDCP passed through
• Up to 4K at 60 Hz with 4:4:4 processing; 18 Gbps maximum video data rate
• Chroma sampling 4:4:4, 4:2:2 or 4:2:0 at 8, 10 or 12 bits per colour
• Frame rates of 24, 25, 30, 50 or 60 fps
• Supplies up to 1.1 watts on the HDMI port for active cables
• Metal single-space MAAP plate, 0.7" H x 2.2" W x 0.1" D, under 0.10 lb

Where It Is Used

This is the module that gets specified when a room's laptop population has moved to USB-C but the display infrastructure is still HDMI. It lives in conference table boxes, lectern plates, huddle-room walls and rack plates — anywhere a MAAP opening can be cut and a single connector has to serve both video and the handshake that goes with it.

Specifications at a Glance

• Signal: HDMI 2.0b, HDCP 2.3; 1 DisplayPort (Alt Mode) input on 1 female USB-C
• Resolution: up to 4K at 60 Hz, 4:4:4 processing
• Pigtail: 13.5" (343 mm), 0.22" (5.5 mm) outer diameter
• Input and output cable length supported: up to 12 ft (3.7 m)
• Warranty: 3 years parts and labour; RoHS and WEEE compliant

Allow 2" (51 mm) of depth behind the plate for cable management, and do not bend the pigtail beyond that recommended depth.

Also listed as One-USB-C-Female-to-HDMI-Female-on-Pigtail, Extron part number 70124212.
