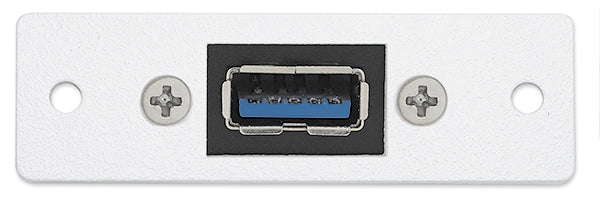

Extron One USB A Female to One USB B Female on Pigtail (part number 70-383-15) — the RAL9010 White single-space MAAP module with a USB A port on the plate and a USB B female connector on a short pigtail behind it.

Extron builds this as a Quick Connect module, meaning the flying lead already ends in a finished USB B female connector. The cable inside the enclosure plugs in; there is no punch-down block, no solder joint and no captive screw terminal to get wrong. Extron's 2012 MAAP catalogue records this part number under the fuller name One USB A Female to One USB B Female on 10" Pigtail, and that is where the pigtail length below comes from.

Key Capabilities

• USB A female at the plate, USB B female on a 10" pigtail behind it
• RAL9010 White — Extron lists 70-383-15 against that finish
• Extron Quick Connect module in the single-space MAAP size
• Pre-terminated lead: no field termination required
• Mounts into an optional Extron MAAP mounting frame
• Retired part number — the family now ships as 70-1236-02 and 70-1236-03

Where It Is Used

Extron puts MAAP modules into walls, tables, podiums, floor boxes and racks. A RAL9010 White example is generally bought to keep a finished room consistent — replacing a single failed USB position in a table box, or holding spares for a site whose plate hardware was specified in that colour from the outset.

Specifications at a Glance

• Connectors: one USB A female to one USB B female
• Pigtail: 10" (per Extron's catalogue listing for this part number)
• Module type: Quick Connect
• Module size: single space (MAAP)
• Finish: RAL9010 White

A note on USB speed. Extron's live specification sheet for this family (4707-D7) reads USB 3.2 Gen 1 / SuperSpeed, but it is published alongside the current part numbers 70-1236-02 and 70-1236-03. No USB generation, data rate, cable dimension, weight or warranty term is published against the retired 70-383-15, so this listing states none. Contact Ampronix if the speed grade matters to your design.

Also listed as One-USB-A-Female-to-One-USB-B-Female-on-Pigtail, Extron part number 7038315.
