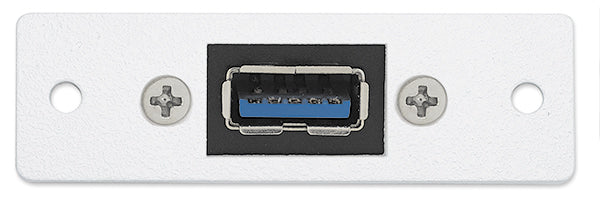

Extron One USB A Female to One USB B Female on Pigtail (part number 70-383-13) — the white single-space MAAP module carrying a USB A port on the plate face and a USB B female connector on a short pigtail behind it.

This is Extron's Quick Connect approach to USB in architectural plates. Rather than asking the installer to terminate anything, the module arrives with a finished USB B female connector on the end of a flying lead; the cable inside the table box or rack plugs straight into it. Extron's 2012 MAAP catalogue lists the same module as One USB A Female to One USB B Female on 10" Pigtail against this part number, which is the source for the pigtail length quoted below.

Key Capabilities

• USB A female at the plate, USB B female on a 10" pigtail behind it
• White finish — Extron lists 70-383-13 as the white version
• Extron Quick Connect module in the single-space MAAP size
• Pre-terminated: nothing to punch down, solder or screw
• Mounts into an optional Extron MAAP mounting frame
• Retired by Extron and superseded by 70-1236-03 in the same family

Where It Is Used

White MAAP hardware is normally specified for classrooms, training rooms and light-finished meeting spaces. In those rooms this module gives a presenter a USB A port at the table or wall while the device end of the run — a room PC, a display, a soundbar or a camera — sits hidden and connects on the B side.

Specifications at a Glance

• Connectors: one USB A female to one USB B female
• Pigtail: 10" (per Extron's catalogue listing for this part number)
• Module type: Quick Connect
• Module size: single space (MAAP)
• Finish: white

A note on USB speed. The specification sheet Extron currently publishes for this product family (4707-D7) quotes USB 3.2 Gen 1 / SuperSpeed, but it belongs to the active part numbers 70-1236-02 and 70-1236-03. Extron publishes no USB generation, data rate, cable dimension, weight or warranty figure against the retired 70-383-13, so none is stated here. Ask Ampronix if the speed grade is critical to your build.

Also listed as One-USB-A-Female-to-One-USB-B-Female-on-Pigtail, Extron part number 7038313.
