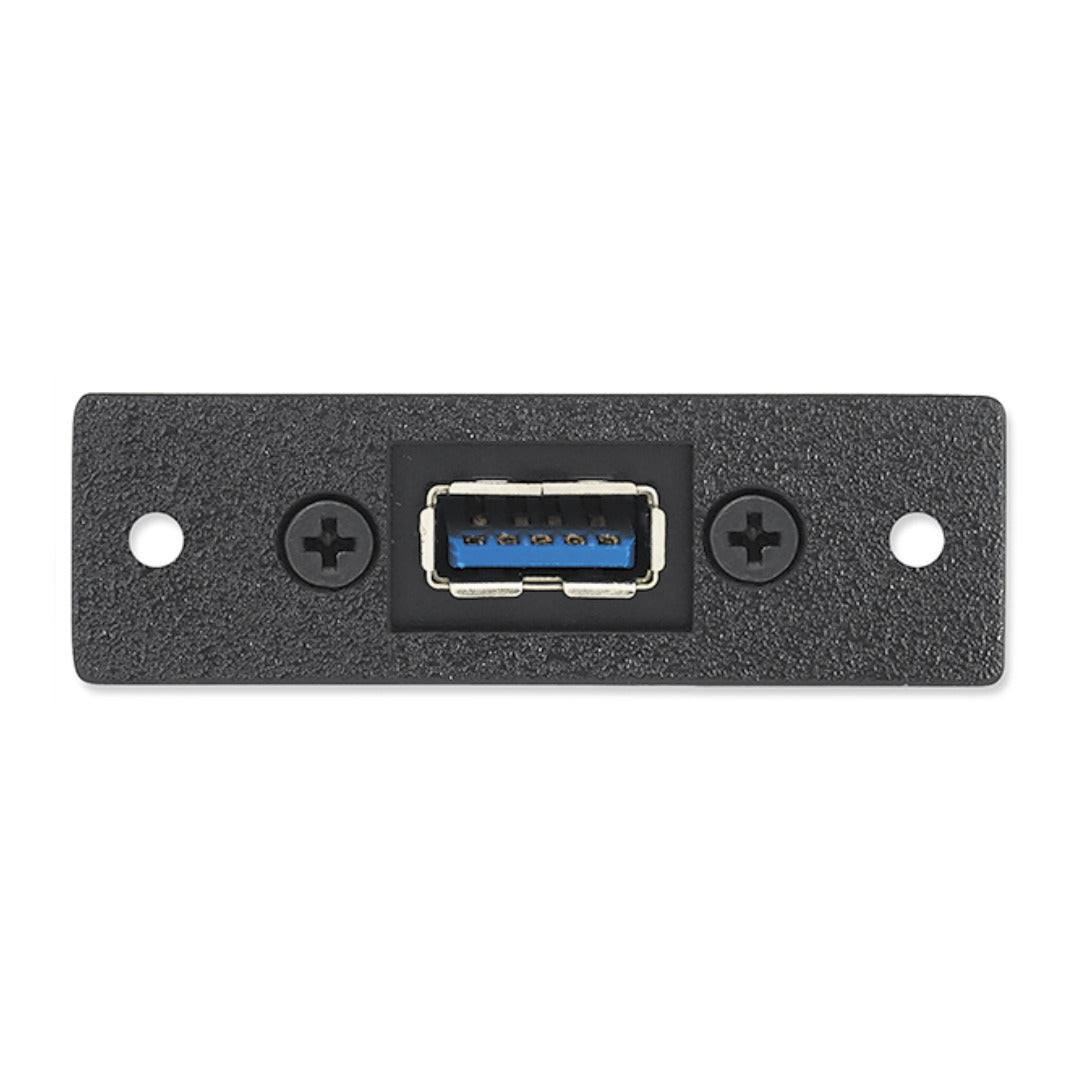

Extron One USB A Female to One USB B Female on Pigtail (part number 70-383-12) — the black single-space MAAP module that presents a USB A port on the plate and hands a USB B connector back into the enclosure on a short flying lead.

Extron classes this as a Quick Connect module: the pigtail already carries a finished USB B female connector, so the cable inside the furniture or rack simply plugs in. Nothing is punched down, soldered or landed on screws. In Extron's 2012 MAAP catalogue the module is listed as One USB A Female to One USB B Female on 10" Pigtail, which is where the pigtail length comes from; Extron's current product page shortens the name to the form used in this listing.

Key Capabilities

• USB A female on the plate face, USB B female on a 10" pigtail behind it
• Extron Quick Connect module in the single-space MAAP size
• Black finish — Extron lists 70-383-12 as the black version
• Terminated pigtail: no punch-down, no soldering, no captive screws
• Mounts into an optional Extron MAAP mounting frame
• Retired by Extron and superseded by 70-1236-02 in the same product family

Where It Is Used

MAAP positions are built into walls, conference tables, lecterns, floor boxes and rack plates. This module is the standard way to give a room a USB A port at the surface while the run behind it terminates on a device-side B connector — a touch display, a room PC, a DSP or a USB-connected camera bar sitting out of sight.

Specifications at a Glance

• Connectors: one USB A female to one USB B female
• Pigtail: 10" (per Extron's catalogue listing for this part number)
• Module type: Quick Connect
• Module size: single space (MAAP)
• Finish: black

A note on USB speed. Extron's current specification sheet for this product family (document 4707-D7) states USB 3.2 Gen 1 / SuperSpeed, but that sheet accompanies the active part numbers 70-1236-02 and 70-1236-03. Extron does not publish a USB generation, data rate, cable diameter, weight or warranty term against the retired 70-383-12, so this listing does not claim any. If your application depends on the speed grade, contact Ampronix before ordering.

Also listed as One-USB-A-Female-to-One-USB-B-Female-on-Pigtail, Extron part number 7038312.
