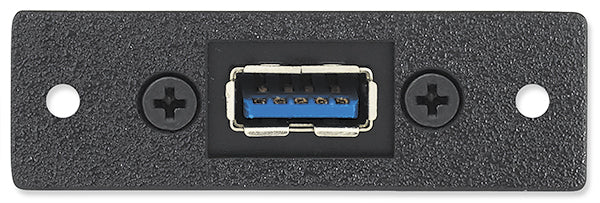

Extron One USB A Female to USB B Female on 10" Pigtail (part number 70-1236-03) — a SuperSpeed USB module for MAAP openings.

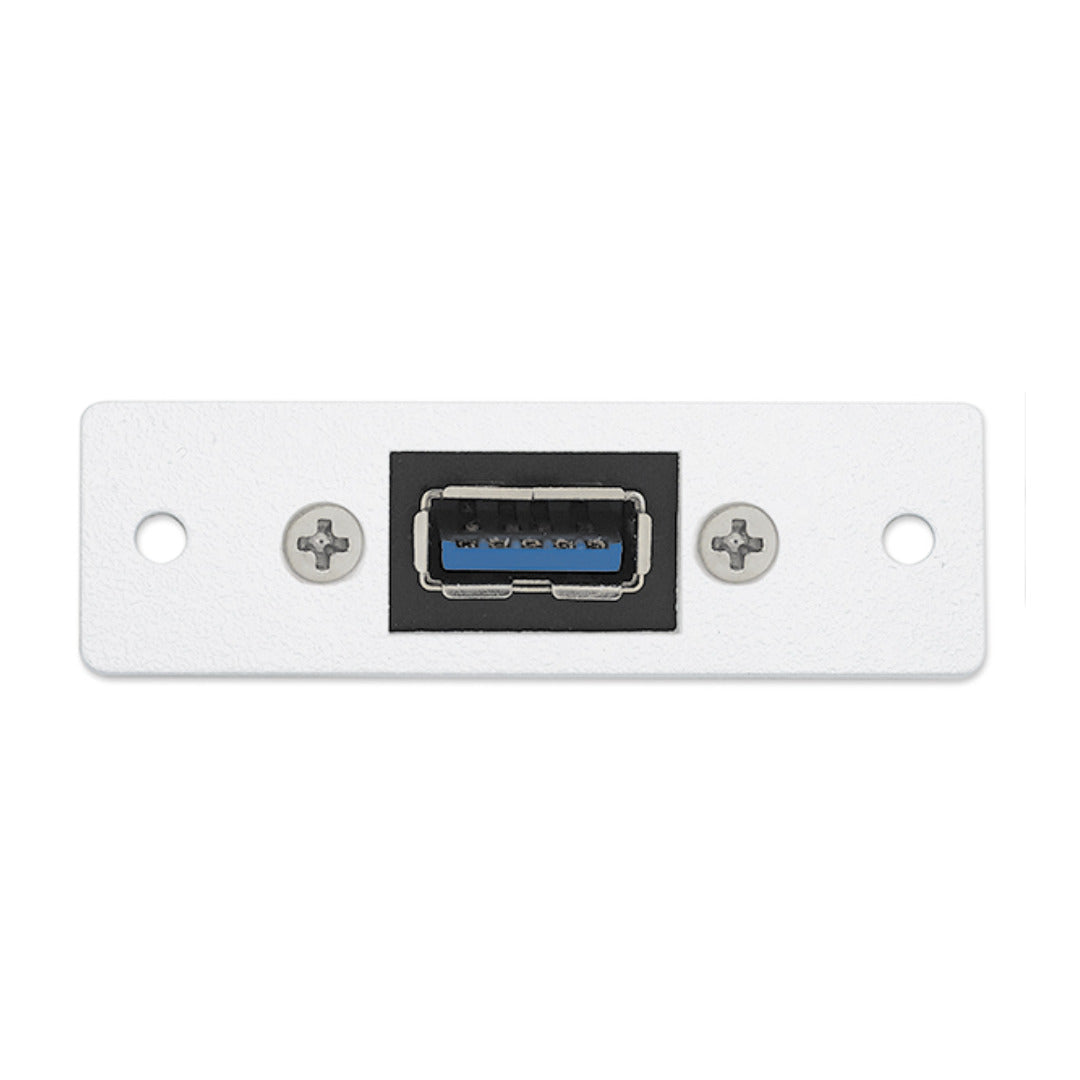

Extron builds this as a factory-terminated assembly so USB never has to be crimped on site. The plate carries a USB Type-A female jack; the 12.90 in pigtail behind it ends in a Type-B female, which Extron describes as reversible. The whole path is rated to USB 3.2 Gen 1, meaning SuperSpeed at 5 Gbps rather than the 480 Mbps a USB 2.0 plate would give you. Physically it is a standard single-space MAAP plate, 2.2 in wide, in a metal body weighing under a tenth of a pound.

Key Capabilities

• USB 3.2 Gen 1 at SuperSpeed, 5 Gbps
• Type A female on the plate, reversible Type B on the pigtail
• Pigtail measures 12.90 in (328 mm), 0.25 in outer diameter
• MAAP faceplate of 0.7 in H x 2.2 in W x 0.1 in D
• Metal enclosure, RoHS compliant
• Allow up to 2.3 in (58 mm) behind the plate for cable management

Where It Is Used

Video-conferencing tables, classroom and lecture-hall lecterns, collaboration furniture and control positions where a shared USB host has to reach peripherals through the surface. It is the SuperSpeed option when a camera or dock needs more than USB 2.0 bandwidth.

Specifications at a Glance

• Connector type: USB 3.2 Gen 1 Type A female to Type B, reversible
• Cable length: 12.90 in (328 mm)
• Enclosure: metal
• Weight: under 0.10 lb
• Warranty: 3 years parts and labor

Also referenced as Extron USB A-B Pigtail MAAP, part number 70123603.
