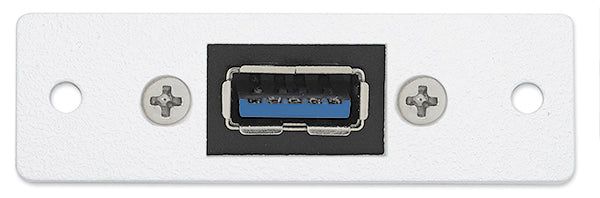

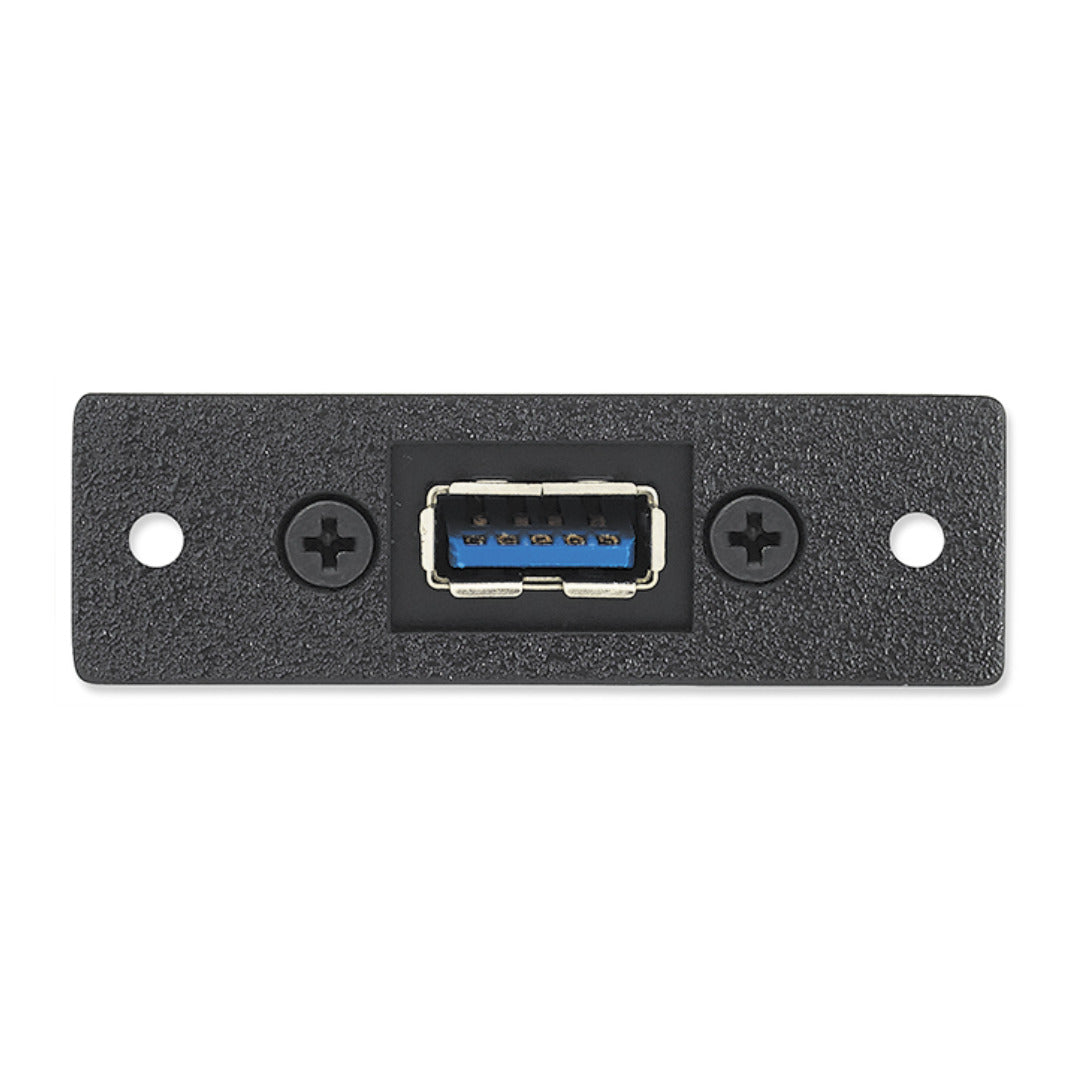

Extron One USB A Female to USB B Female on 10" Pigtail (part number 70-1236-02) — a USB 3.2 Gen 1 host-to-device module in single-space MAAP format.

This module handles the connection a room PC or USB hub needs: a Type-A female jack on the user-facing plate and, on the 12.90 in pigtail behind it, a Type-B female connector. Extron specifies the pair as reversible, and the link runs at USB 3.2 Gen 1 SuperSpeed, 5 Gbps — enough headroom for a USB camera or a soft-codec peripheral chain that USB 2.0 would throttle. The plate is metal and the pigtail is 0.25 in in diameter, so allow up to 2.3 in of depth behind the plate for the bend.

Key Capabilities

• USB 3.2 Gen 1 Type A female to Type B, reversible
• SuperSpeed data rate of 5 Gbps
• 12.90 in (328 mm) pigtail, 0.25 in (6.4 mm) outer diameter
• Single-space MAAP faceplate: 0.7 in H x 2.2 in W x 0.1 in D
• Metal enclosure weighing under 0.10 lb
• Mounts into an optional Extron MAAP mounting frame

Where It Is Used

Soft-codec meeting rooms, boardroom tables feeding a room PC, training suites with USB cameras and content-sharing appliances, and lecterns that must hand a laptop to shared USB peripherals. The 5 Gbps rating matters where a USB 2.0 plate would bottleneck the camera.

Specifications at a Glance

• Standard: USB 3.2 Gen 1
• Data rate: SuperSpeed, 5 Gbps
• Cable management depth: allow up to 2.3 in (58 mm)
• Compliance: RoHS
• Warranty: 3 years parts and labor

Also referenced as Extron USB A-B Pigtail MAAP, part number 70123602.
