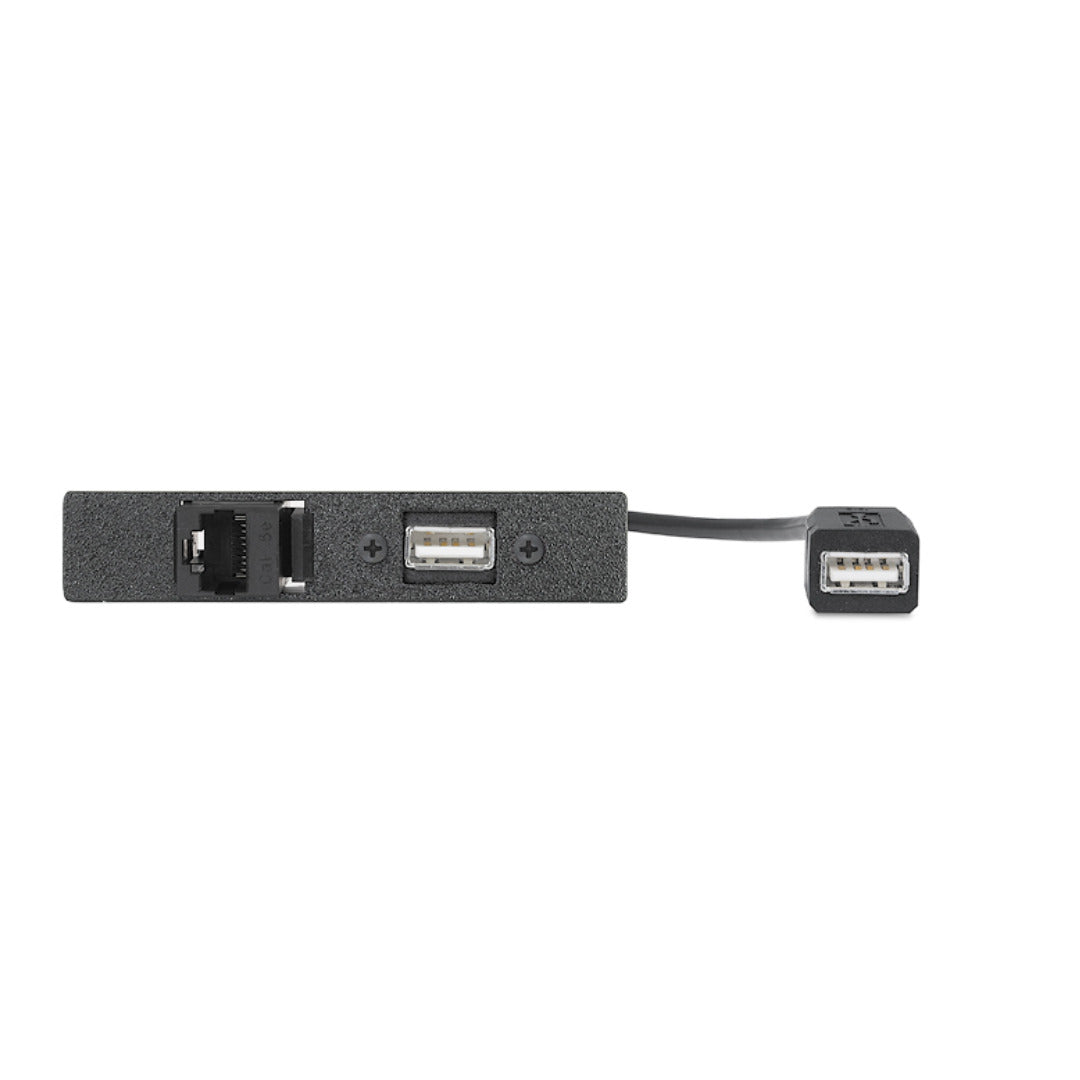

Extron One USB A Female to Female on 10" Pigtail, One RJ-45 Female to Female Barrel - CAT 5e (part number 70-609-12) — a single-space black AAP module that puts a USB port and a network port side by side on one 3.5" wide plate.

Two independent paths share the plate. The USB side is a Type A female presented at the face, wired through to a second Type A female on a 12.30" (312 mm) flying lead, so the cable inside the enclosure plugs straight in. The network side is a straight RJ-45 female-to-female barrel for CAT 5e. Neither path is active — nothing is amplified, buffered or powered — which is exactly why the module tends to outlive the equipment it was installed for.

Key Capabilities

• USB A female to USB A female on a 12.30" (312 mm) pigtail
• RJ-45 female to female barrel for CAT 5e on the same plate
• USB 2.0 at high speed — 480 Mbps
• Single-space AAP plate, 0.7" H x 3.5" W x 0.1" D, metal enclosure
• Weighs under 0.1 lb; complies with RoHS and WEEE requirements
• Backed by Extron's 3-year parts and labour warranty

Where It Is Used

AAP openings appear in Extron interfaces, mounting frames, table boxes, lecterns and rack plates. A combined USB and network position suits a podium that has to feed a laptop both a data port and a wired network drop, a control-room console that needs a spare Ethernet run brought to the surface, or a classroom plate serving a document camera alongside a hard-wired link.

Specifications at a Glance

• Standards: USB 2.0
• USB data rate: high speed (480 Mbps)
• Cable: 12.30" (312 mm) long, 0.18" (4.6 mm) outer diameter
• Faceplate: 0.7" H x 3.5" W x 0.1" D (18 mm x 89 mm x 3 mm)
• Warranty: 3 years parts and labour

Allow at least 1.6" (40 mm) of depth behind the plate for the connector and the cable bend radius, and do not bend the pigtail tighter than that.

Also listed as One-USB-A-Female-to-Female-on-10-Pigtail-One-RJ-45-Female-to-Female-Barrel-CAT-5e, Extron part number 7060912.
