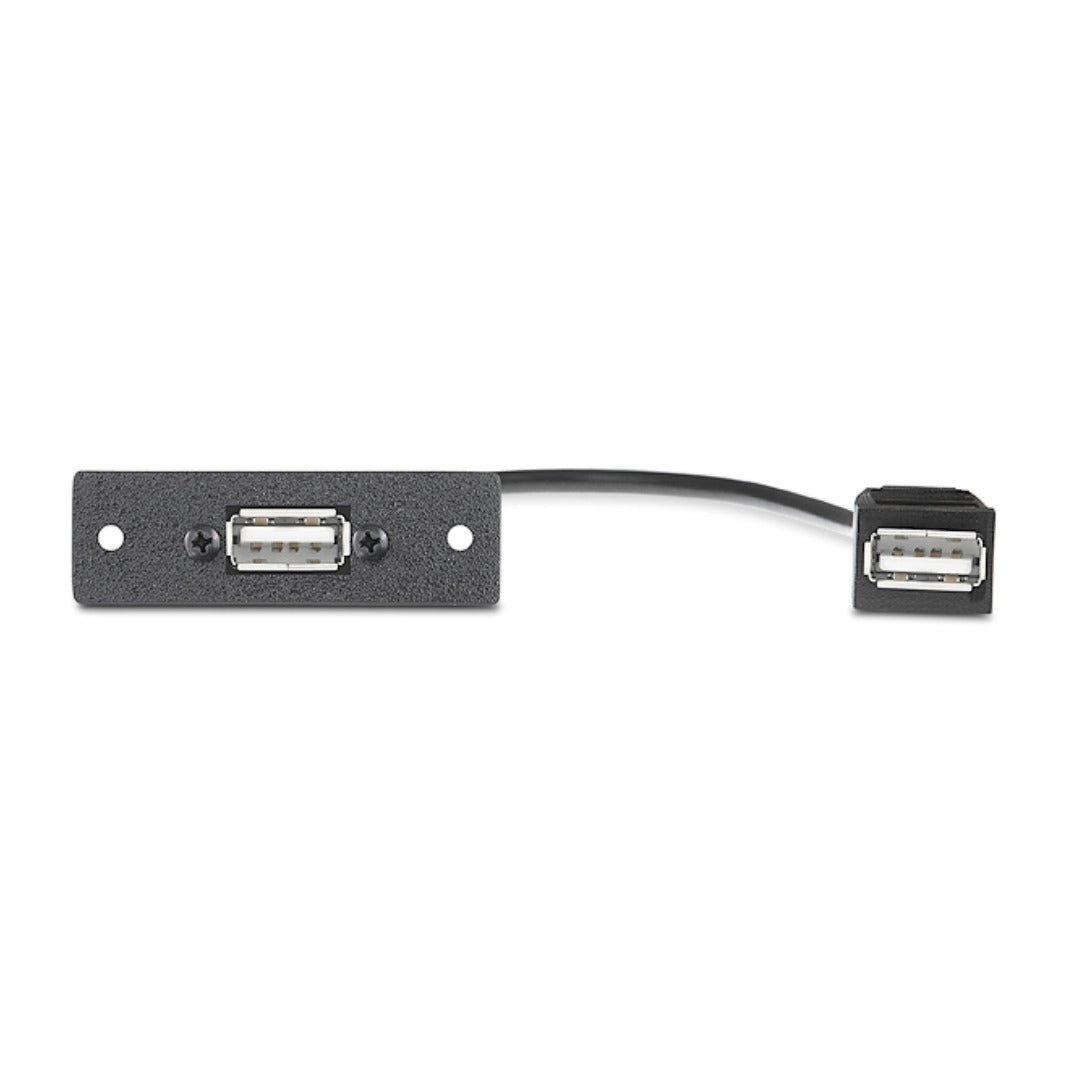

Extron One USB A Female to Female on 10" Pigtail (part number 70-455-15) — a single-space MAAP module giving a USB 2.0 Type-A jack on an architectural surface.

Behind the plate is a 12.30 in factory-terminated pigtail ending in a second Type-A female connector, so the cable run is made with an ordinary USB cable inside the enclosure. The plate itself is metal, 2.2 in wide, and sits flush in a MAAP frame. The pigtail is thin — 0.18 in outer diameter — which matters in shallow table boxes, though Extron still asks for up to 1.6 in of depth so the cable is not bent past its limit.

Key Capabilities

• USB 2.0 Type-A female to Type-A female throughput
• High-speed data rate of 480 Mbps
• 0.18 in (4.6 mm) cable outer diameter on a 12.30 in pigtail
• Single-space MAAP plate, 0.7 in H x 2.2 in W x 0.1 in D
• Metal enclosure under 0.10 lb, RoHS compliant
• Fits an optional Extron MAAP mounting frame

Where It Is Used

Boardroom and classroom furniture, lectern faces, control-room consoles and AV rack panels. Specify it where a USB peripheral or host connection must be presented cleanly to the user while the cable stays inside the furniture.

Specifications at a Glance

• Standard: USB 2.0
• Cable length: 12.30 in (312 mm)
• Cable management depth: allow up to 1.6 in (40 mm)
• Weight: under 0.10 lb
• Warranty: 3 years parts and labor

Also referenced as Extron USB-A F-F 10in Pigtail MAAP, part number 7045515.
