Extron One USB A Female to Female on 10" Pigtail (part number 70-455-13) — a USB 2.0 feed-through module in Extron's compact MAAP plate format.

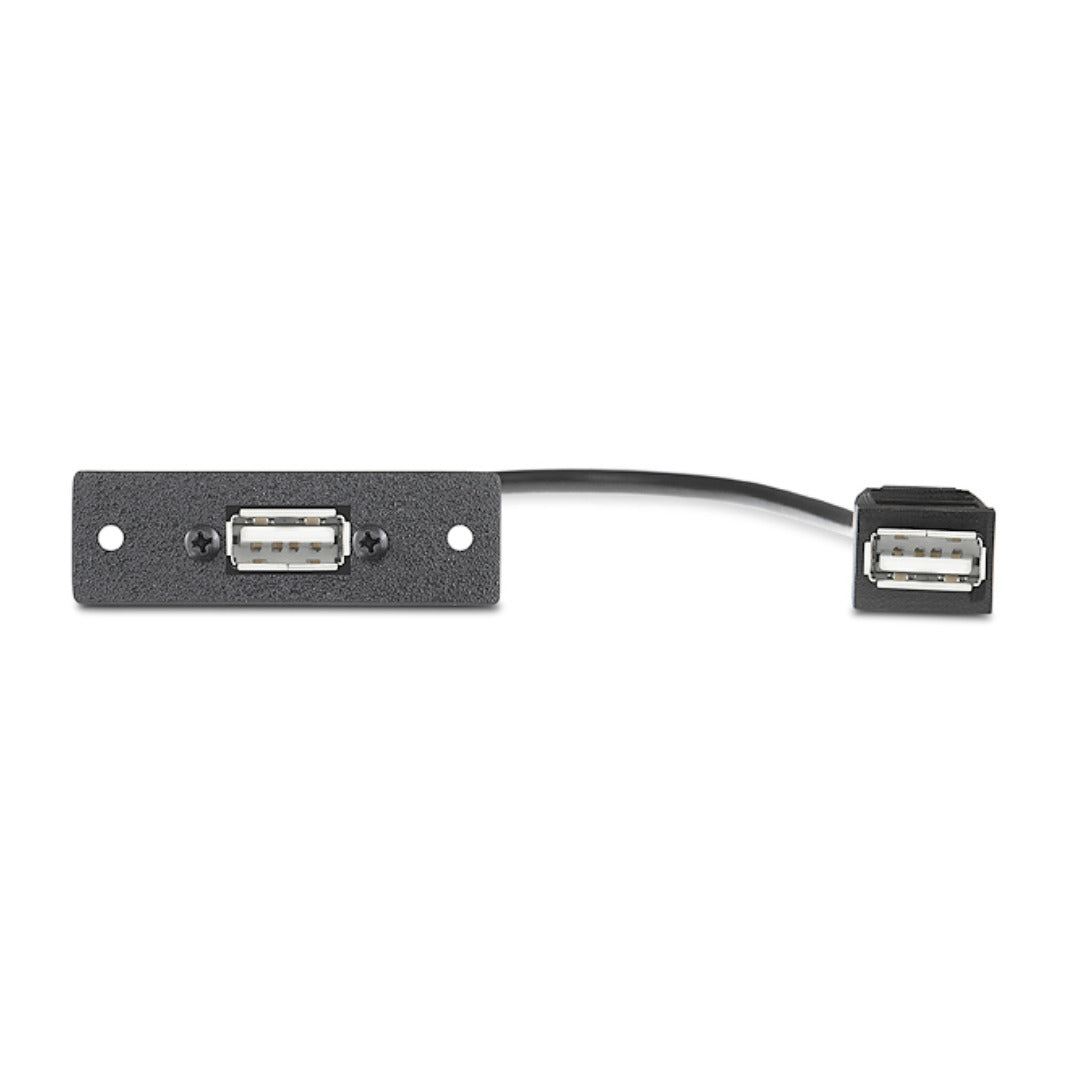

USB is not a connector anyone wants to terminate on site. Extron's answer here is a factory-assembled module: a Type-A female jack on the visible face of a metal MAAP plate, and a 12.30 in pigtail behind it ending in a second Type-A female. The installer plugs a manufactured USB cable into that pigtail inside the back box or furniture enclosure and closes up. The plate measures 2.2 in wide by 0.7 in tall, the standard single-space MAAP footprint, and the assembly weighs less than a tenth of a pound.

Key Capabilities

• USB 2.0 Type-A female to Type-A female connection
• 480 Mbps high-speed USB data rate
• Pigtail measures 12.30 in (312 mm) with a 0.18 in cable diameter
• MAAP faceplate: 0.7 in H x 2.2 in W x 0.1 in D
• Allow up to 1.6 in (40 mm) of depth for cable management
• Metal build; RoHS compliant; 3-year Extron warranty

Where It Is Used

Meeting-room table boxes, teaching-wall plates, lectern panels and furniture enclosures. Common wherever a room PC, USB camera or interactive display has to be reachable from a user-facing connection point without exposing the cable run.

Specifications at a Glance

• Connector type: USB 2.0 Type A female to Type A female
• Faceplate: 0.7 in H x 2.2 in W x 0.1 in D
• Enclosure: metal
• Weight: under 0.10 lb
• Warranty: 3 years parts and labor

Also referenced as Extron USB-A F-F 10in Pigtail MAAP, part number 7045513.
