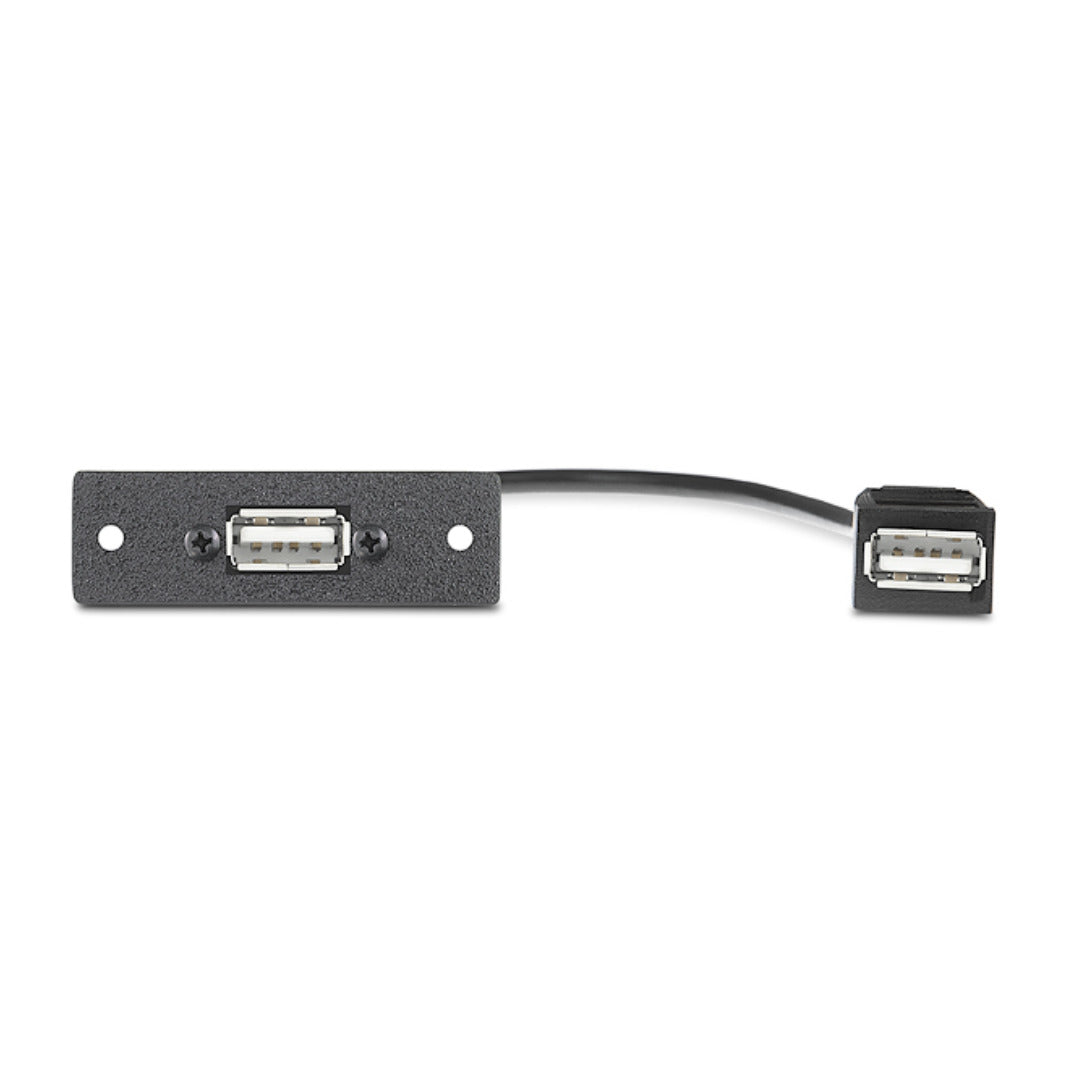

Extron One USB A Female to Female on 10" Pigtail (part number 70-455-12) — a single-space MAAP module that carries a USB 2.0 Type-A connection through a finished surface.

The module presents a USB Type-A female jack on the face of the plate and a 12.30 in pigtail behind it, terminated in a second Type-A female. That lets the installer mate a standard off-the-shelf USB cable inside the enclosure rather than terminating USB in the field. The body is metal and the plate is the standard 2.2 in single-space MAAP width. Extron asks for up to 1.6 in of clearance behind the plate so the cable can turn without being kinked.

Key Capabilities

• USB 2.0 Type-A female to Type-A female pass-through
• High-speed USB data rate of 480 Mbps
• 12.30 in (312 mm) pigtail with a 0.18 in (4.6 mm) outer diameter
• Single-space MAAP faceplate: 0.7 in H x 2.2 in W x 0.1 in D
• Metal enclosure weighing under 0.10 lb
• Mounts into an optional Extron MAAP mounting frame

Where It Is Used

Conference-table connectivity plates, classroom lecterns, huddle-room enclosures and equipment-rack panels. Typical uses include reaching a USB camera, touch panel, or a room PC's front ports from a tidy user-facing jack instead of a cable run across the surface.

Specifications at a Glance

• Standard: USB 2.0
• Data rate: high speed, 480 Mbps
• Cable: 12.30 in (312 mm), 0.18 in OD
• Compliance: RoHS
• Warranty: 3 years parts and labor

Also referenced as Extron USB-A F-F 10in Pigtail MAAP, part number 7045512.
