Extron One USB 2.0 Type-A Connector to Captive Screw (part number 70-312-11) — a black single-space MAAP module that turns a bare USB run into a finished, panel-mounted Type-A port.

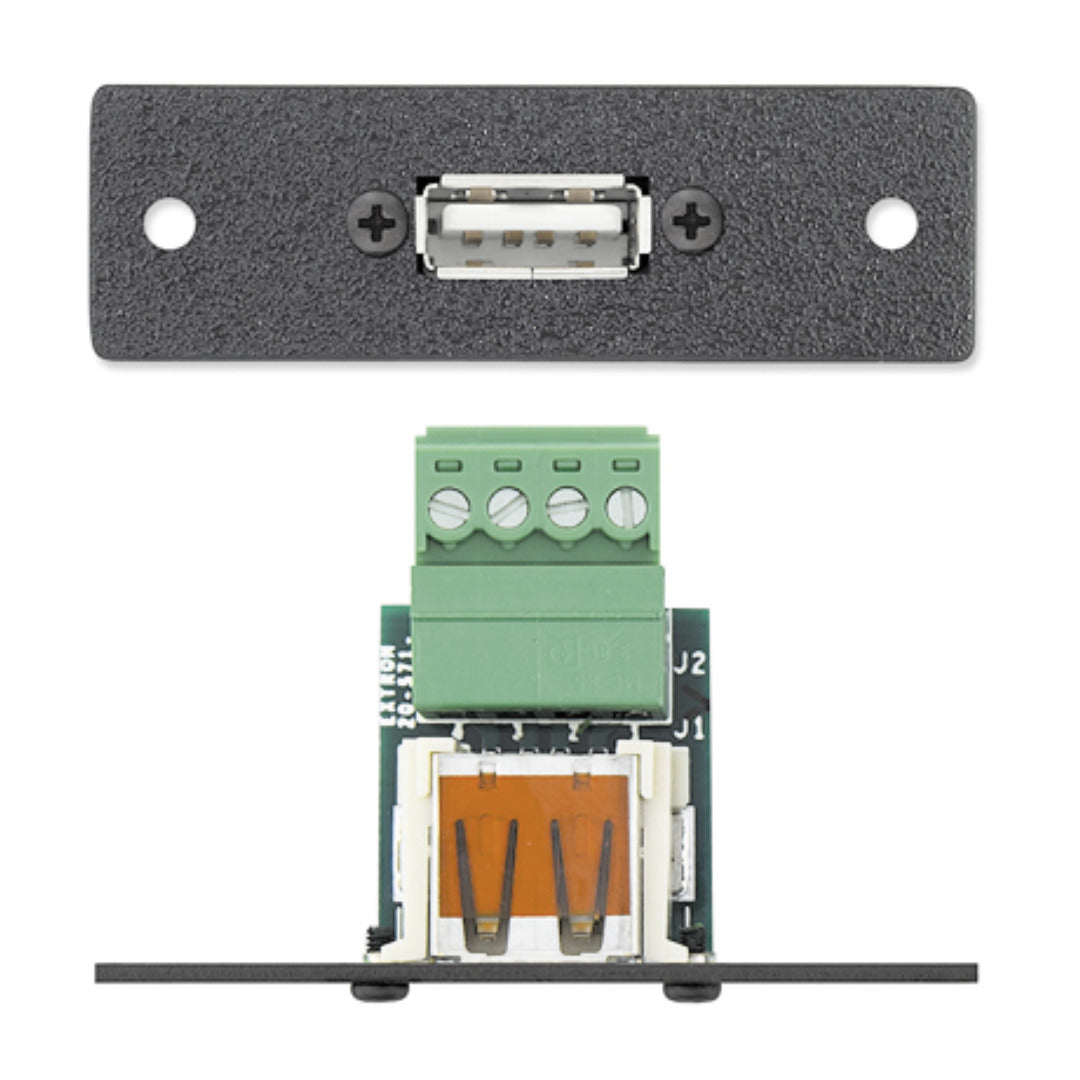

Extron catalogues this module under product ID IN9467. A USB 2.0 Type-A receptacle sits on the face of the metal plate; behind it, a four-pin captive screw terminal accepts the conductors of an ordinary USB cable. The installer removes the Type-B (or mini-B) end from an A-to-B lead, strips roughly 0.5" (1.3 cm) of jacket, confirms each conductor with an ohm meter, and lands them in order: pin 1 carries +5 V (Vbus), pin 2 Data-, pin 3 Data+, pin 4 ground. No soldering, no drilling, no external junction box.

Key Capabilities

• USB 2.0 Type-A receptacle wired through to a 4-pin captive screw terminal
• Extron Quick Connect module in the single-space MAAP size
• Published pin order: +5 V (Vbus), Data-, Data+, ground
• Terminated on site from any standard USB A-to-B or A-to-mini-B cable
• Drops into Extron interfaces, MAAP mounting frames and other MAAP-ready products
• Custom engraving offered by Extron for clear connector labelling

Where It Is Used

MAAP modules go wherever the connection point has to become part of the room: conference table boxes, lectern and podium plates, classroom and huddle-room wall plates, floor boxes and equipment racks. This one suits any position where a laptop, camera or touchpanel needs a USB host port that was terminated on site rather than ordered as a moulded assembly.

Specifications at a Glance

• Signal: USB 2.0
• Connectors: one USB Type-A receptacle to one 4-pin captive screw terminal
• Module type: Quick Connect
• Module size: single space (MAAP)
• Finish: black

Extron's wiring card also restates the USB cable-length ceiling that governs whatever lead you terminate here: 16 feet 4.8 inches (5.0 m) between full-speed devices, and 9 feet 10 inches (3.0 m) for low-speed devices.

Also listed as Extron IN9467, One-USB-2.0-Type-A-Connector-to-Captive-Screw, part number 7031211.
