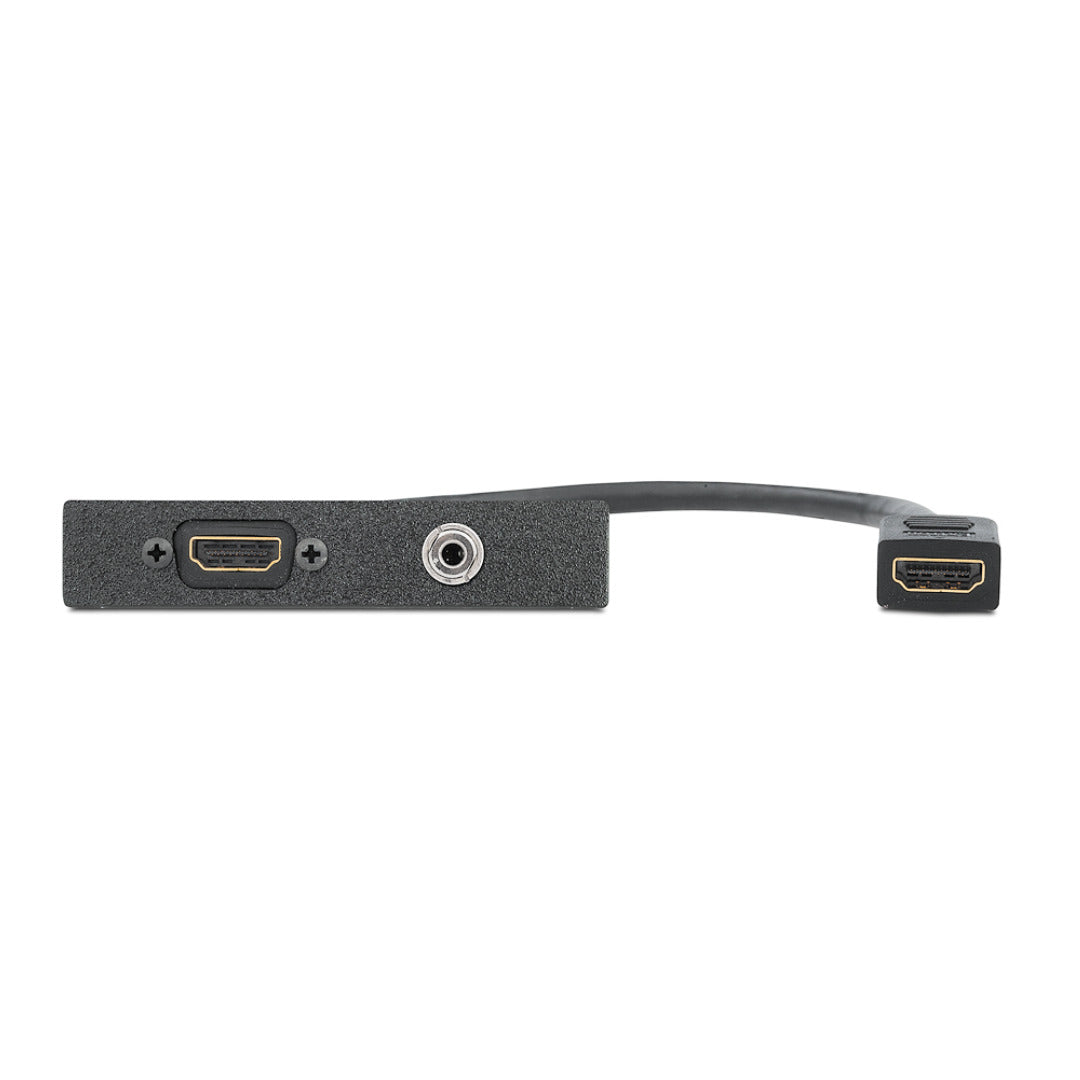

Extron One HDMI female to female on 10" Pigtail, One 3.5 mm Stereo Mini Jack to Captive Screw (part number 70-1017-03) — a combined HDMI and analog audio Architectural Adapter Plate.

One plate, two independent paths. The HDMI connection is presented as a female jack on the face of the module and reappears behind it as a female connector on a 12.75 in pigtail, which the installer mates to a manufactured HDMI cable inside the back box. Alongside it, a 3.5 mm stereo mini jack terminates to captive screw terminals, giving the audio contractor a direct landing point for a balanced or unbalanced run into a DSP or amplifier. The plate is metal, 3.50 in wide, and weighs 0.33 lbs.

Key Capabilities

• HDMI female to female on a 12.75 in (324 mm) pigtail, no field termination
• 3.5 mm stereo mini jack wired to captive screw terminals
• HDMI 1.4, up to 10.2 Gbps (3.4 Gbps per color)
• Carries 4096 x 2160 at 30 Hz 4:4:4 8-bit, or 4K at 60 Hz 4:2:0
• Single-space AAP faceplate measuring 3.50 in wide
• Metal build, RoHS and WEEE compliant

Where It Is Used

University lecture theatres, corporate boardrooms with a dedicated audio system, training suites, courtrooms and briefing rooms. Specify it wherever a single user connection point has to feed video to the display chain and audio to a separate processor.

Specifications at a Glance

• Faceplate: 0.69 in H x 3.50 in W x 0.05 in D
• Depth allowance: 2.00 in (51 mm)
• Weight: 0.33 lbs (0.15 kg)
• Compliance: RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron HDMI-Pigtail-Audio-AAP, part number 70101703.
