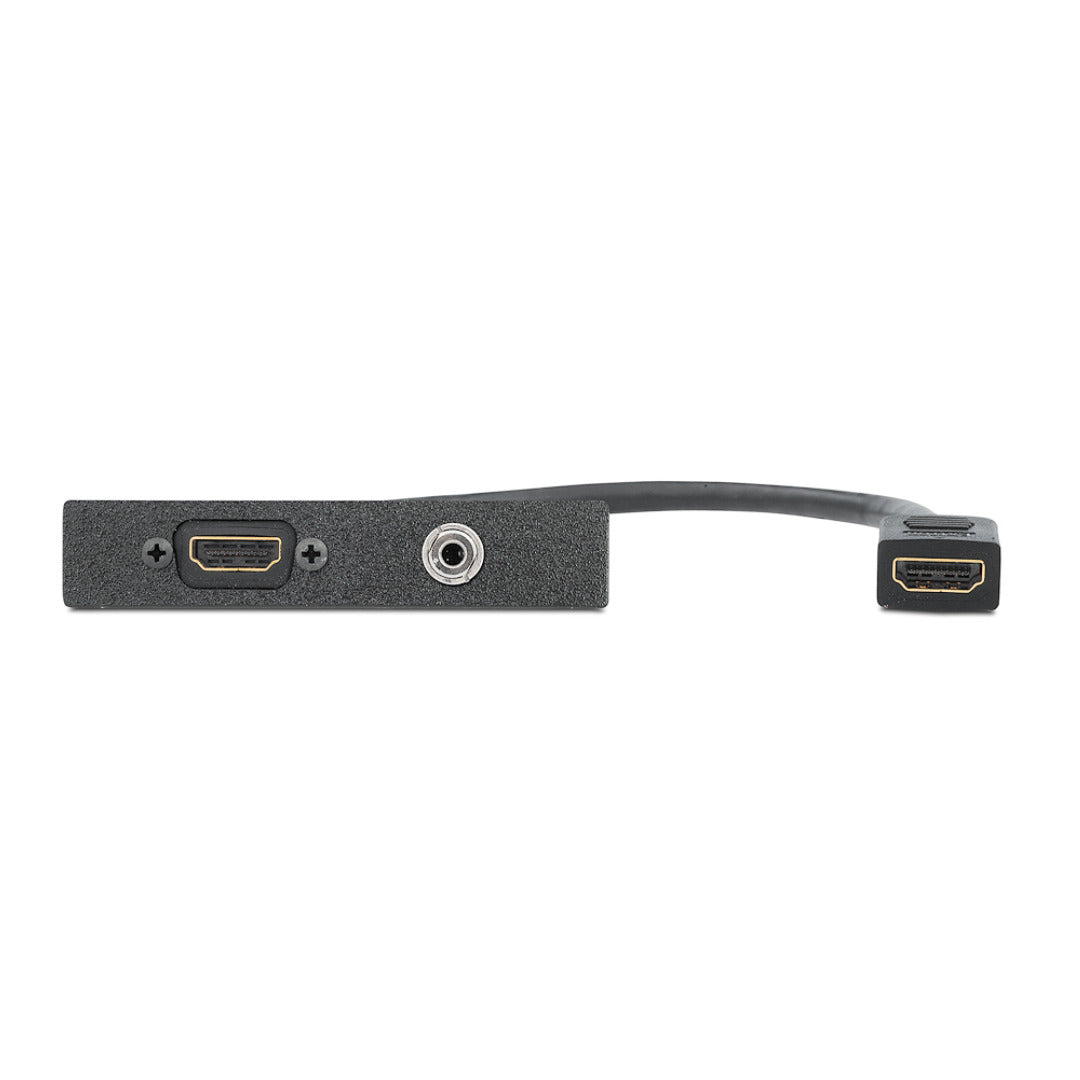

Extron One HDMI female to female on 10" Pigtail, One 3.5 mm Stereo Mini Jack to Captive Screw (part number 70-1017-02) — a single-space AAP that carries both video and separate analog audio.

Some rooms need the audio path kept away from the HDMI stream — a laptop feeding a projector over HDMI while its headphone output goes to the room DSP, for example. This AAP handles both on one plate. The HDMI side is a female jack with a 12.75 in pigtail terminated in a second HDMI female, so no field termination is required. The audio side is a 3.5 mm stereo mini jack landing on captive screw terminals behind the plate, which an installer wires directly into the audio run.

Key Capabilities

• One HDMI female to female path on a 12.75 in (324 mm) pigtail
• One 3.5 mm stereo mini jack terminating to captive screws
• HDMI 1.4 at a 10.2 Gbps maximum video data rate
• Single-space AAP plate, 0.69 in H x 3.50 in W x 0.05 in D
• Metal construction, 0.33 lbs (0.15 kg)
• Allow 2.00 in (51 mm) of depth for cable management

Where It Is Used

Lecture halls and classrooms with separate house audio, boardrooms running a DSP, training rooms and courtroom benches. It suits any position where the video and the audio need to take different routes from the same user connection point.

Specifications at a Glance

• Signal type: HDMI 1.4
• Max. video data rate: 10.2 Gbps (3.4 Gbps per color)
• Cable outer diameter: 0.24 in (6.0 mm)
• Weight: 0.33 lbs (0.15 kg)
• Warranty: 3 years parts and labor

Also referenced as Extron HDMI-Pigtail-Audio-AAP, part number 70101702.
