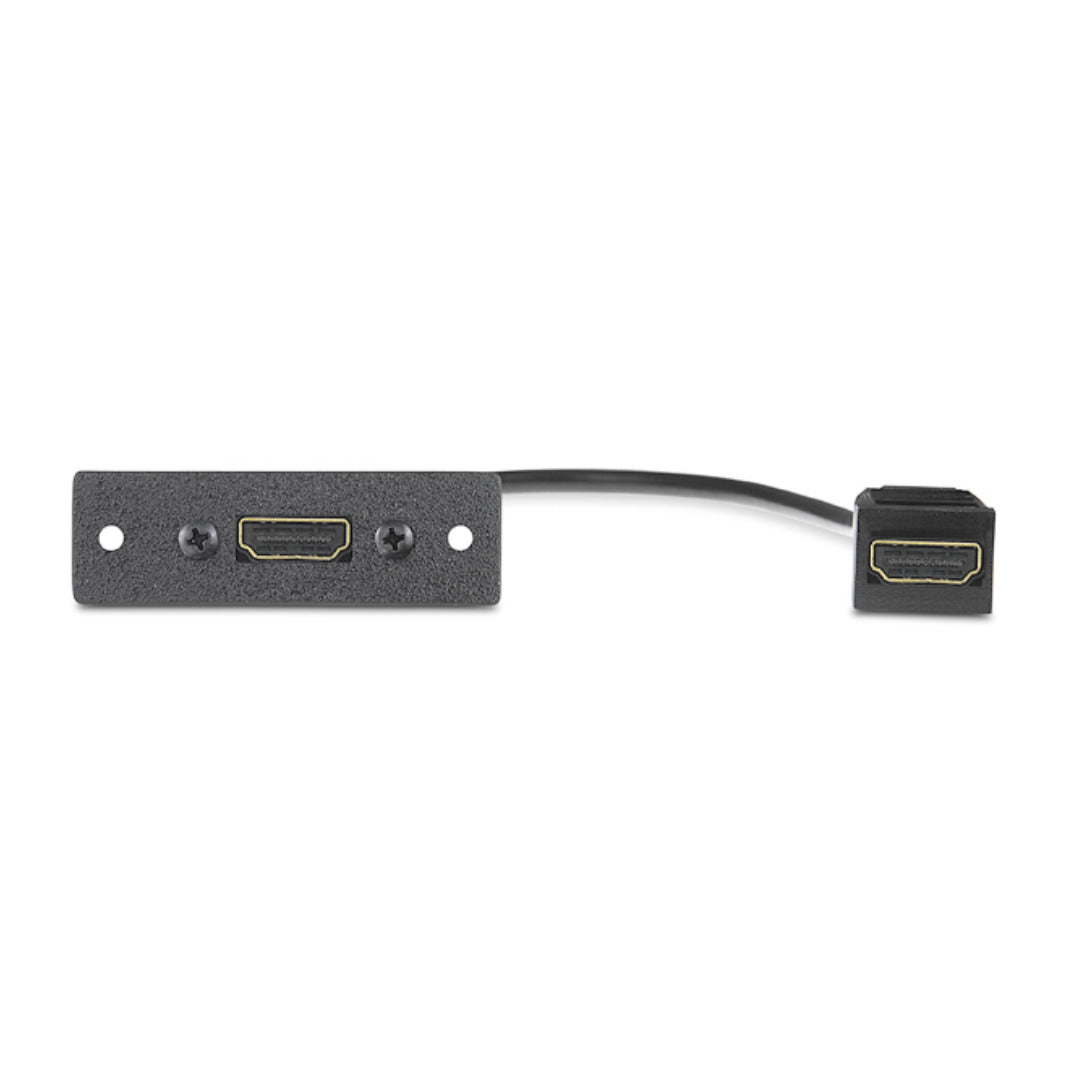

Extron One HDMI Female to Female on 10" Pigtail (part number 70-617-15) — Extron's MAAP-format HDMI feed-through module with a pre-terminated pigtail.

Behind every clean HDMI jack on a conference table is a decision about how the cable gets there. This module is Extron's standard answer for MAAP openings: a metal plate 2.20 in wide, an HDMI female connector on the visible face, and a 12.75 in pigtail behind it ending in a second HDMI female. Field termination is avoided entirely — the installer simply mates a manufactured HDMI cable to the pigtail inside the enclosure and allows 2.00 in of depth for the bend.

Key Capabilities

• Single-space MAAP plate: 0.69 in H x 2.20 in W x 0.05 in D
• HDMI female to HDMI female on a 12.75 in (324 mm) pigtail
• HDMI 1.4 with a 10.2 Gbps maximum video data rate
• Chroma sampling of 4:4:4, 4:2:2 or 4:2:0 at 8 bits per color
• Metal enclosure for optional Extron MAAP frames
• 0.24 in cable outer diameter; RoHS and WEEE compliant

Where It Is Used

Meeting-room table boxes, furniture enclosures, teaching-wall plates and lectern panels. It suits any MAAP opening that needs to present HDMI to a user while keeping the actual cable run concealed inside the furniture or wall.

Specifications at a Glance

• Signal type: HDMI 1.4
• Max. 4K: 4096 x 2160 at 30 Hz, 4:4:4, 8 bit
• Cable length: 12.75 in (324 mm)
• Weight: 0.1 lb
• Warranty: 3 years parts and labor

Also referenced as Extron HDMI F-F 10in Pigtail MAAP, part number 7061715.
