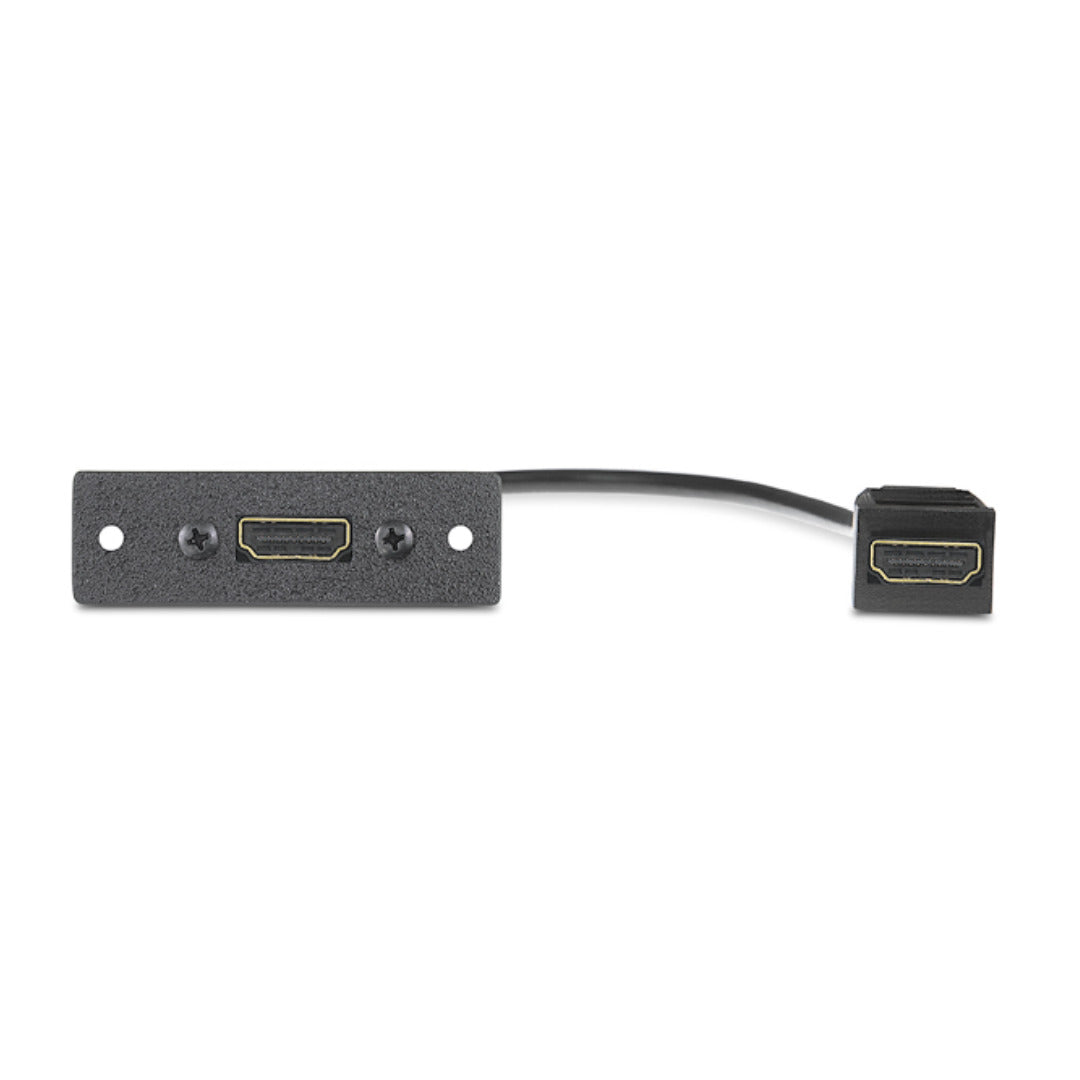

Extron One HDMI Female to Female on 10" Pigtail (part number 70-617-13) — a compact MAAP-format HDMI pass-through module with a factory-terminated pigtail.

This module solves a small but persistent installation problem: HDMI connectors are bulky and cannot be terminated on site, yet the connection has to appear on a finished surface. Extron's answer is a metal MAAP plate with an HDMI female jack on the front and a 12.75 in pigtail on the back ending in another HDMI female. The installer mates a standard HDMI cable to that pigtail inside the enclosure. The plate is 2.20 in wide — MAAP format, not the wider AAP format — so confirm the frame before ordering.

Key Capabilities

• MAAP single-space plate, 0.69 in H x 2.20 in W x 0.05 in D
• HDMI female to HDMI female, 12.75 in (324 mm) pigtail
• HDMI 1.4 at up to 10.2 Gbps, 3.4 Gbps per color
• Frame rates of 24, 25, 30, 50 and 60 fps at 8 bits per color
• Metal construction; mounts into optional Extron MAAP frames
• RoHS and WEEE compliant with a 3-year Extron warranty

Where It Is Used

Boardroom and classroom table boxes, Cable Cubby enclosures, lectern connectivity panels and compact wall plates. Typical in rooms where a guest laptop needs to reach the display system through a tidy architectural connection point.

Specifications at a Glance

• Faceplate: 0.69 in H x 2.20 in W x 0.05 in D
• Cable outer diameter: 0.24 in (6.0 mm)
• Depth allowance: 2.00 in (51 mm)
• Weight: 0.1 lb
• Warranty: 3 years parts and labor

Also referenced as Extron HDMI F-F 10in Pigtail MAAP, part number 7061713.
