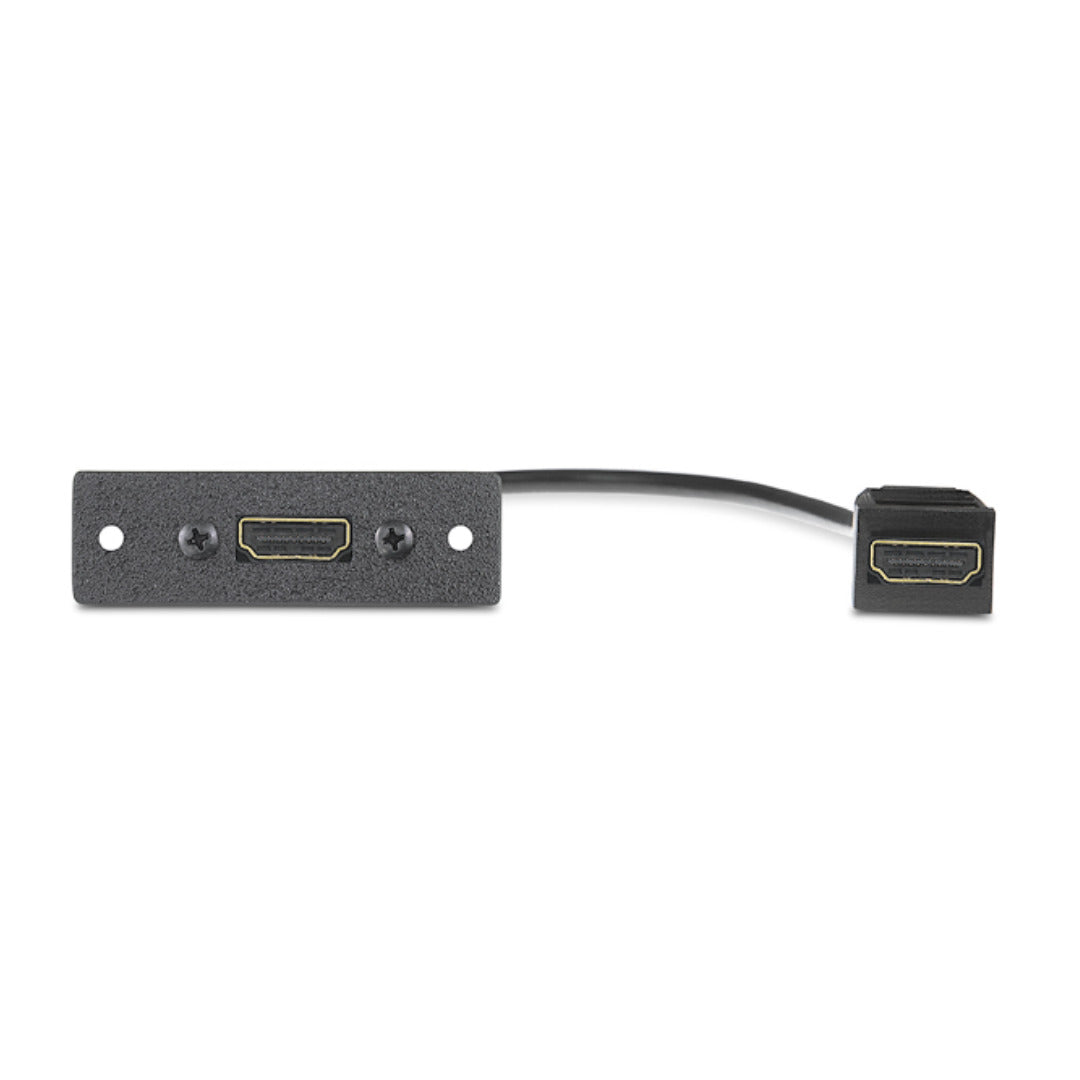

Extron One HDMI Female to Female on 10" Pigtail (part number 70-617-12) — the MAAP version of Extron's HDMI feed-through module, on a narrower 2.20 in plate.

MAAP is Extron's mini adapter plate format. Electrically this module matches the wider AAP version — HDMI female on the front, a 12.75 in pigtail terminated in a second HDMI female behind — but the faceplate is 2.20 in wide instead of 3.50 in, so it fits MAAP frames and the compact openings used in modern table boxes and enclosures. Choosing the right format matters: an AAP module will not seat in a MAAP frame.

Key Capabilities

• Single-space MAAP faceplate, 0.69 in H x 2.20 in W x 0.05 in D
• HDMI female to HDMI female on a 12.75 in (324 mm) pigtail
• HDMI 1.4 signalling, 10.2 Gbps maximum video data rate
• Handles 4096 x 2160 at 30 Hz 4:4:4 8-bit, and 4K at 60 Hz 4:2:0
• Metal body, roughly 0.1 lb, for optional Extron MAAP frames
• Allow 2.00 in behind the plate for cable management

Where It Is Used

Conference-table connectivity plates, Cable Cubby and similar furniture enclosures, compact wall boxes and lectern panels where the wider AAP footprint will not fit but an HDMI input is still required.

Specifications at a Glance

• Signal type: HDMI 1.4
• Max. video data rate: 10.2 Gbps (3.4 Gbps per color)
• Cable: 12.75 in (324 mm), 0.24 in outer diameter
• Compliance: RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron HDMI F-F 10in Pigtail MAAP, part number 7061712.
