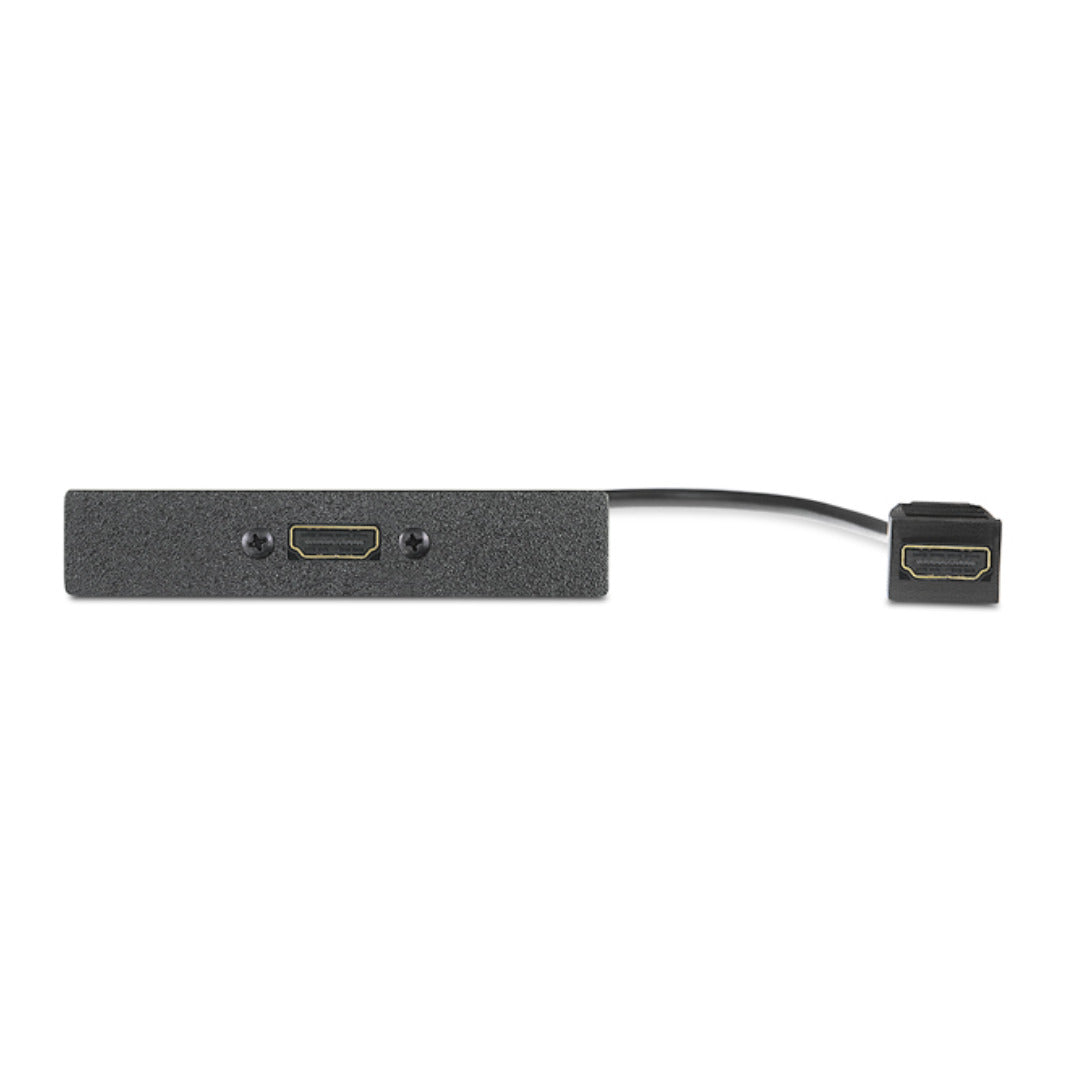

Extron One HDMI Female to Female on 10" Pigtail (part number 70-616-13) — a single-space Architectural Adapter Plate carrying an HDMI feed-through on a short pigtail.

Field-terminating HDMI is not practical, so Extron does not ask you to. This AAP puts an HDMI female jack on the visible face of the plate and hands you a 12.75 in pigtail behind it, terminated in a second HDMI female. The installer plugs a pre-made HDMI cable into that pigtail inside the back box and closes up the panel. The plate itself is metal and measures 3.50 in across, the standard single-space AAP width, and the module weighs about a tenth of a pound.

Key Capabilities

• HDMI female to HDMI female through a 12.75 in (324 mm) pigtail
• Single-space AAP plate: 0.69 in H x 3.50 in W x 0.05 in D
• HDMI 1.4, maximum video data rate 10.2 Gbps
• Supports 24, 25, 30, 50 and 60 fps at 8 bits per color
• Mountable into optional Extron AAP frames; metal body
• RoHS and WEEE compliant, 3-year Extron warranty

Where It Is Used

Wall plates in teaching spaces, conference-table connectivity panels, podium and lectern faces, and furniture-mounted enclosures. It is the standard way to present a clean HDMI input at a finished surface without exposing cable ends.

Specifications at a Glance

• Faceplate: 0.69 in H x 3.50 in W x 0.05 in D
• Cable outer diameter: 0.24 in (6.0 mm)
• Depth allowance: 2.00 in (51 mm) for cable management
• Weight: 0.1 lb (0.1 kg)
• Warranty: 3 years parts and labor

Also referenced as Extron HDMI F-F 10in Pigtail AAP, part number 7061613.
