Extron One HDMI Female to Female on 10" Pigtail (part number 70-616-12) — a single-space AAP module that brings an HDMI connection to a wall plate, lectern or table panel.

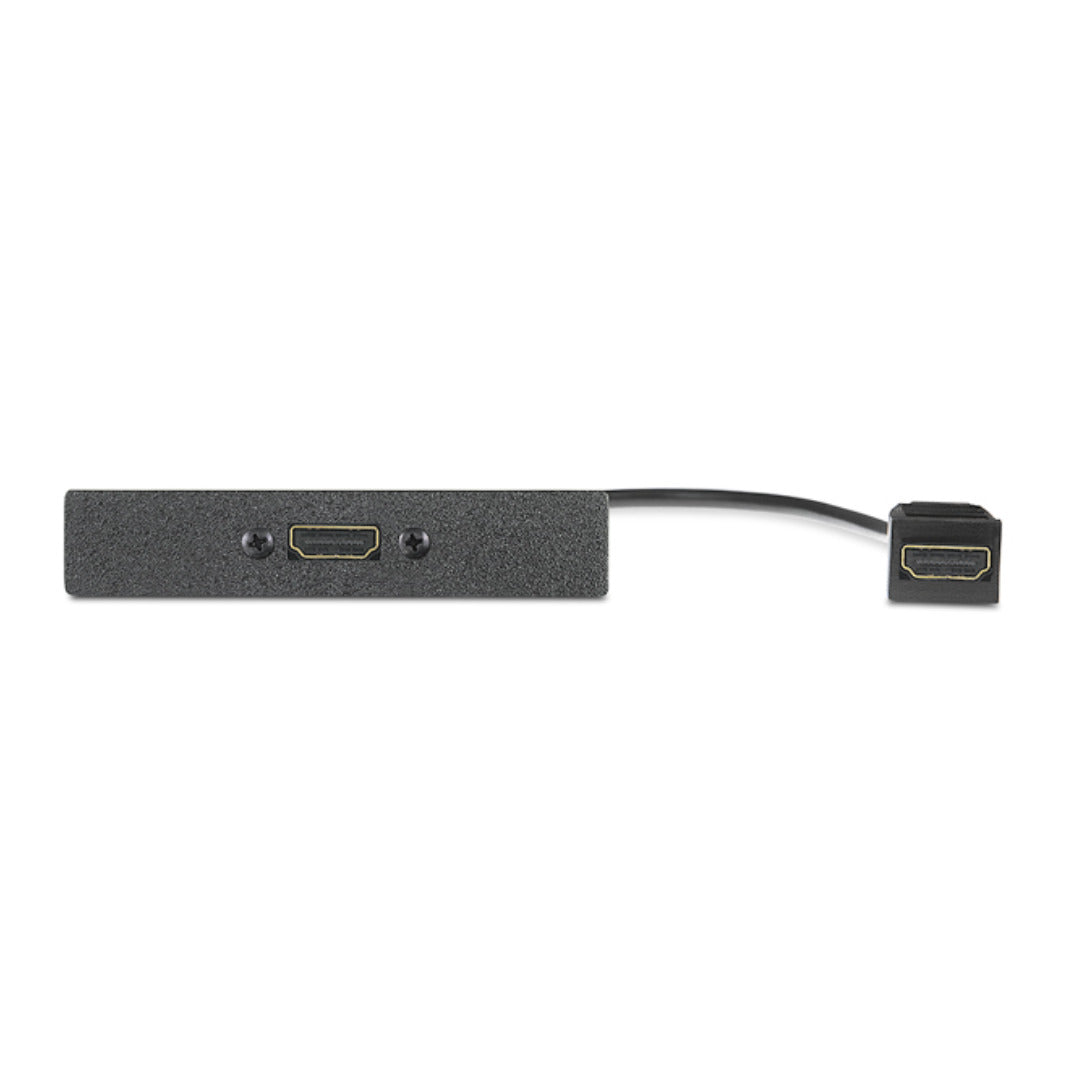

The module is a metal AAP plate with an HDMI female jack on the front and a 12.75 in factory-terminated pigtail on the back, ending in a second HDMI female connector. That arrangement matters on site: the installer runs a standard HDMI cable up to the plate and mates it behind the panel, instead of trying to terminate HDMI in the field or fight a rigid connector inside a shallow back box. Allow 2.00 in of depth behind the plate for the cable to turn.

Key Capabilities

• Single-space AAP faceplate, 0.69 in H x 3.50 in W x 0.05 in D
• HDMI female to HDMI female, with a 12.75 in (324 mm) pigtail
• HDMI 1.4 signalling at up to 10.2 Gbps, 3.4 Gbps per color
• Carries 4096 x 2160 at 30 Hz 4:4:4 8-bit, or 4K at 60 Hz 4:2:0
• Metal construction, 0.1 lb, mounts into optional Extron AAP frames
• Cable outer diameter of 0.24 in for predictable back-box routing

Where It Is Used

Classroom and lecture-hall wall plates, boardroom table panels, lectern faces and Cable Cubby enclosures. Any position where a laptop or document camera has to hand HDMI to the room system through a finished architectural surface rather than a loose cable.

Specifications at a Glance

• Signal type: HDMI 1.4
• Max. video data rate: 10.2 Gbps (3.4 Gbps per color)
• Cable length: 12.75 in (324 mm)
• Weight: 0.1 lb (0.1 kg)
• Warranty: 3 years parts and labor

Also referenced as Extron HDMI F-F 10in Pigtail AAP, part number 7061612.
