Details

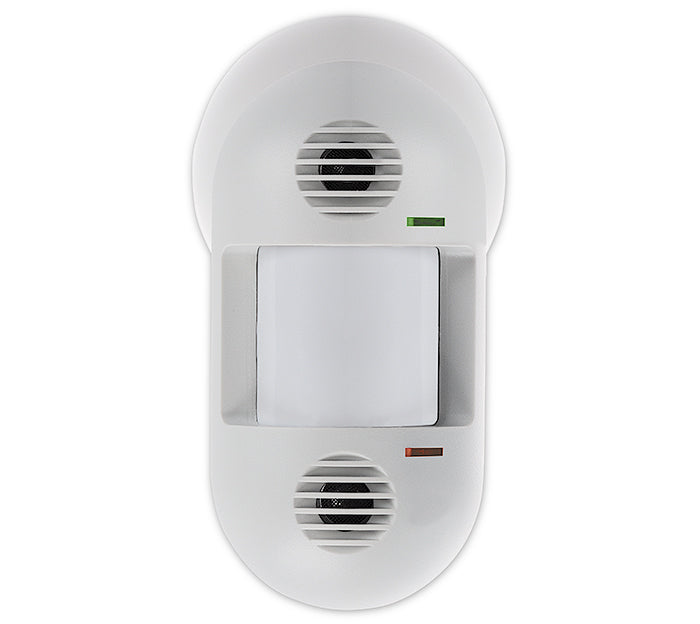

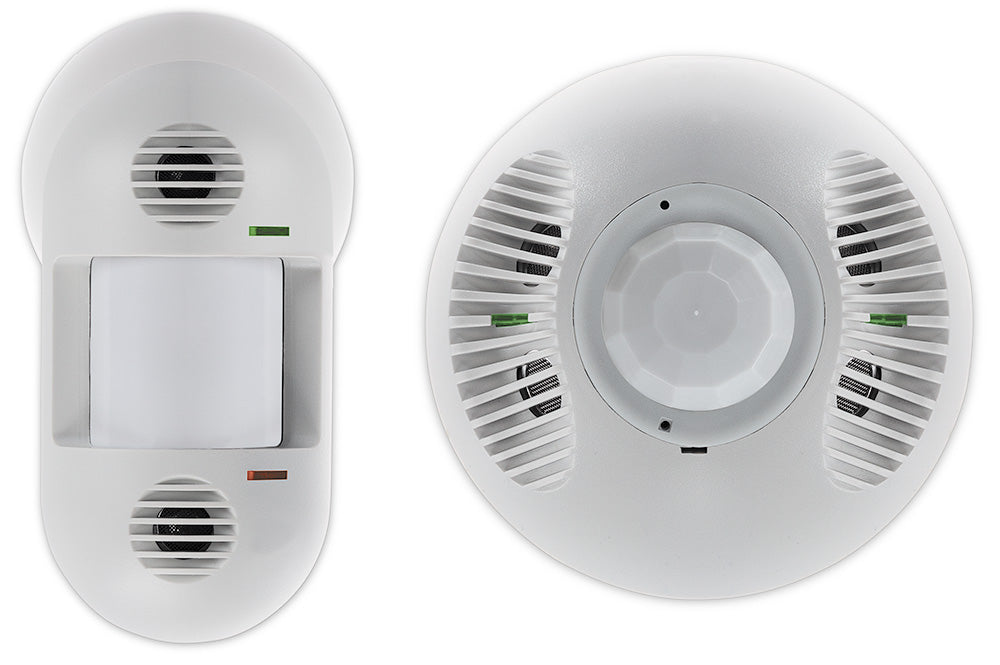

Extron OCS 100W (part number 60-1665-01) — a compact dual technology occupancy sensor with ultrasonic, infrared and photocell detection for Extron control systems.

The OCS 100W reports whether a room is in use so an Extron controller can start, hold or release an automation sequence. Two 32 kHz ultrasonic transducers watch for frequency shifts caused by movement while a dual-element pyrometer behind a rugged 12-element lens tracks thermal change. By default both have to agree before occupancy is declared, which is what keeps corridor traffic and airflow from producing spurious triggers. Wiring goes directly to digital or FLEX input ports, or over eBUS with optional interface accessories.

Key Capabilities

Covers 1600 square feet, with 40 ft major-motion and 20 ft minor-motion detection from a 10 ft mount.
Timer selectable at 4, 8, 15 or 30 minutes manually, or self-adjusting between 4 and 30 minutes.
One-press blue test button drops the timer to 8 seconds for an hour during commissioning.
Two logic outputs - a blue occupancy wire and a gray occupancy-plus-photocell wire, 0-24 VDC active high.
Isolated single-pole double-throw relay rated 500 mA at 24 VDC for third-party HVAC or lighting loads.
Photocell override adjustable across 1 to 100 foot-candles (10 to 1000 Lux).
Mounts on wall, ceiling or corner with the supplied bracket and rotates for aim.

Where It Is Used

Small and mid-size conference rooms, huddle spaces, classrooms and offices are typical, particularly where a wall or corner position gives a better view of the room than the ceiling. The concealed cover keeps DIP switches and sensitivity dials out of reach once the space is tuned.

Specifications at a Glance

Coverage: 1600 sq ft from a 10 ft mounting height
Sensors: 2 ultrasonic at 32 kHz plus dual-element PIR
Power: 20-24 VDC, 33 mA nominal (PC 1224 12 V to 24 V converter included)
Enclosure: off-white plastic, 2.80 in W x 5.50 in L x 2.10 in D (71 x 140 x 53 mm)
Operating range: +32 to +104 °F (0 to +40 °C), 0% to 95% noncondensing, indoor use only

Also referenced as Extron OCS100W, OCS-100W, part number 60166501.

Specifications

Part Number: 60-1665-01

Manufacturer: Extron

Model: OCS 100W

Condition: New

Coverage Area: 1600 square feet

Ultrasonic Sensors: 2 sensors - 32 kHz output

Passive Infrared: Dual-element pyrometer and 12-element cylindrical rugged lens

InteliDAPT Technology: Auto reset from test setting; self-adjusting timer; self-adjusting passive infrared thresholds; automatic false-on and false-off correction

LED Lamp: Red - infrared motion; Green - ultrasonic detection

Timer Timeout: Automatic mode: 4 to 30 minutes (self-adjusts based on occupancy); Manual mode: 4, 8, 15 and 30 minutes; Test mode: 8 seconds

Photocell: Adjustable natural-light override ranges from 1 to 100 foot-candles (10 to 1000 Lux)

Learning: 4 weeks for response error conditions, air current adaption and timer optimization

Post-Learning Occupancy Periods: 24-hour circadian occupancy periods learned

Adjustments in Post-Learning Period: Generally occupied periods; generally unoccupied periods

Digital Outputs: 2 digital outputs

Digital Output Connectors: Blue wire = Occupancy only; Gray wire = Occupancy + Photocell

Output Voltage Range: 0 - 24 VDC; active high logic control signal with short-circuit protection, open collector when unoccupied

Relay: 1 Normally Open and Closed contact, single pole, double throw, 500 mA rated at 24 VDC, three-wire isolated relay

Sensor Power Input Requirements: 20-24 VDC, 33 mA nominal

PC 1224 Converter Power Requirements: Input: 12 VDC, 1.5 A max; Output: 12 VDC, 1.25 A max and 24 VDC, 75 mA max

PC 1224 Converter Dimensions: 1.00 in W x 1.00 in L x 0.50 in D (25 mm W x 25 mm L x 13 mm D)

Wiring: Color coded, pre-stripped leads - 6 in total length

Temperature/Humidity: Operation: +32 to +104 °F (0 to +40 °C) / 0% to 95%, noncondensing; for indoor use only

Cooling: Convection, no vents

Mounting: Mounting base provided; recommended mounting height 8 feet, maximum mounting height 12 feet

Enclosure Type: Plastic

Enclosure Dimensions: 2.80 in W x 5.50 in L x 2.10 in D (71 mm W x 140 mm x 53 mm D)

Product Weight: 0.1 lb (<0.1 kg)

Color: Off-white

Regulatory Compliance: CE, c-UL, UL, FCC Class A, KC; complies with appropriate requirements of RoHS, WEEE, and California Title 24

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor
