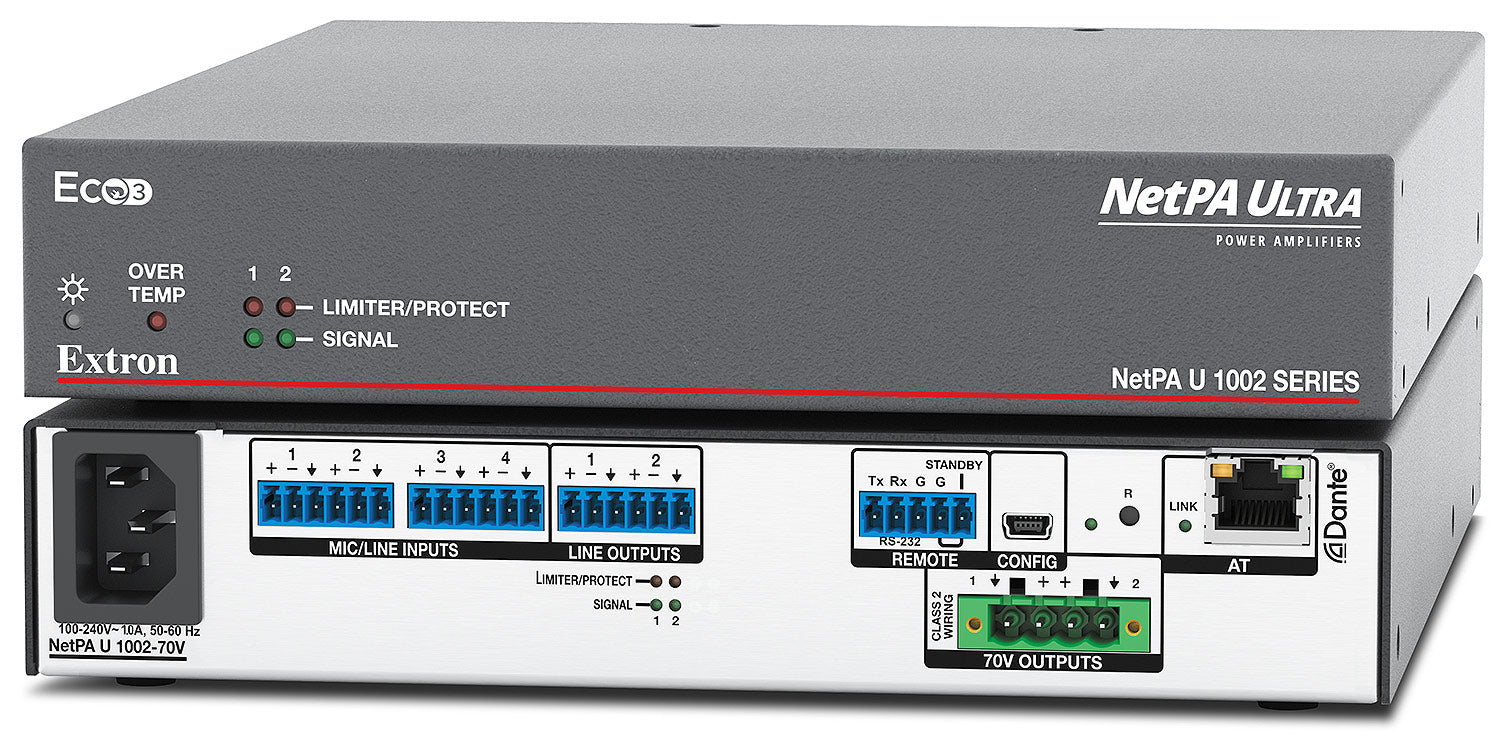

Extron NetPA U 1002-70V (part number 60-1767-02) — a two-channel, network-native 70V power amplifier built for constant-voltage distributed audio.

This half-rack, 1U plenum-rated chassis pulls audio straight off a Dante or AES-67 network and turns it into 100 watts per channel at 70 volts, so integrators can skip a separate DSP mixer for straightforward paging and background-music runs. Per-input gain trim and an 80 Hz high-pass filter (defeatable in software) sit ahead of the Class D output stage. Because the amp is Dante-network aware, it drops into a managed AV-over-IP system alongside other Extron audio endpoints without extra distribution hardware.

Key Capabilities

100 W per channel into 70 V loads, 2 channels, Class D efficiency
Dante/AES-67 network audio input with software-selectable transmission mode
24-bit audio at up to 96 kHz sampling, deterministic 1.0/2.0/5.0 ms latency
Defeatable 80 Hz high-pass filter tuned for 70V distributed loudspeaker lines
Half-rack, 1U, plenum-rated enclosure at 3.8 lbs for tight equipment rooms
Extron SIS control over RS-232, USB, or 10/100 Ethernet

Where It Is Used

The 70V output suits ceiling-speaker paging zones, classroom program audio, and multi-zone background music in retail or hospitality spaces where long speaker runs call for constant-voltage distribution rather than low-impedance direct drive. Its network input also fits AV-over-IP rooms already standardized on Dante for audio transport.

Specifications at a Glance

Output: 2 x 100 W @ 70 V, 1 kHz, less than 0.1% THD
Network audio: Dante/AES-67, 1-port 100 Mbps RJ-45
Enclosure: 1.7" H x 8.7" W x 10.5" D, half-rack 1U, metal, plenum rated
Warranty: 3 years parts and labor; Everlast power supply 7 years

Also referenced as Extron NetPAU100270V, NetPA-U-1002-70V, part number 60176702.

Specifications

Part Number: 60-1767-02

Manufacturer: Extron

Model: NetPA U 1002-70V

Condition: New

Amplifier Type: Class D

Output Power: 100 W per channel at 70 V, 1 kHz, <0.1% THD

Load Impedance: 50 ohms minimum

Speaker Output: 2 channels, 70 V; (1) 5 mm captive screw connector, 4-pole (22-12 AWG)

High-Pass Filter: 80 Hz, 12 dB/octave rolloff, on by default, software defeatable

Frequency Response (through DSP): 20 Hz to 20 kHz, ±0.5 dB

Frequency Response (through amplifier): 20 Hz to 20 kHz, ±1 dB

THD+N (through DSP): <0.01% @ 1 kHz at maximum output

THD+N (through amplifier): 0.1% @ 1 kHz at 3 dB below clipping

Crosstalk: <-90 dB @ 1 kHz, fully loaded

Volume Control Range: -100 dB to 0 dB in 0.1 dB steps

Audio Inputs: 4 mono mic/line, balanced/unbalanced; (2) 3.5 mm captive screw connectors, 6-pole

Input Impedance: >10k ohms unbalanced/balanced

Input Nominal Level: -60 dBV / +4 dBu / -10 dBV, adjustable via input gain

Input Gain Adjustment: -18 dB to +60 dB in 0.1 dB steps, per input

Equivalent Input Noise: <-120 dBV (1 µVrms) at 45 dB input gain

Audio Line Output: 2 mono, balanced/unbalanced; (1) 3.5 mm captive screw connector, 6-pole

Output Impedance: 100 ohms balanced, 50 ohms unbalanced

Network Audio: Dante/AES-67, software selectable, 1 RJ-45 port at 100 Mbps

Network Audio Channels: 2 Rx / 2 Tx, unicast or multicast

Network Audio Format: 24-bit uncompressed, 44.1/48/88.2/96 kHz sampling

Network Audio Latency: 1.0 ms (default), 2.0 ms, or 5.0 ms

Control Port: (1) 3.5 mm captive screw connector, 5-pole; contact-closure standby

Serial Control: 1 RS-232 port, 38400 baud, 8 data bits, 1 stop bit, no parity

USB Control Port: 1 USB 2.0 Mini-B, high speed

Ethernet Control: 1 RJ-45, 10/100 Base-T, Extron SIS

Protection: Clip limiter, thermal, short circuit, DC output

Power Supply: Internal, 100-240 VAC, 50-60 Hz, 1.0 A

Power Consumption (Active, 70 V load): 0.4 A / 38 W / 13 W / 44 BTU/hr at 115 VAC; 0.3 A / 37.1 W / 12.1 W / 41 BTU/hr at 230 VAC

Power Consumption (Quiescent): 0.1 A / 8.3 W / 8.3 W / 28 BTU/hr at 115 VAC; 0.1 A / 8.1 W / 8.1 W / 28 BTU/hr at 230 VAC

Power Consumption (Standby): <0.1 A / <4 W / <4 W / <14 BTU/hr

Operating Temperature: +32° to +122°F (0° to +50°C), 10% to 90% non-condensing

Cooling: Convection, no vents

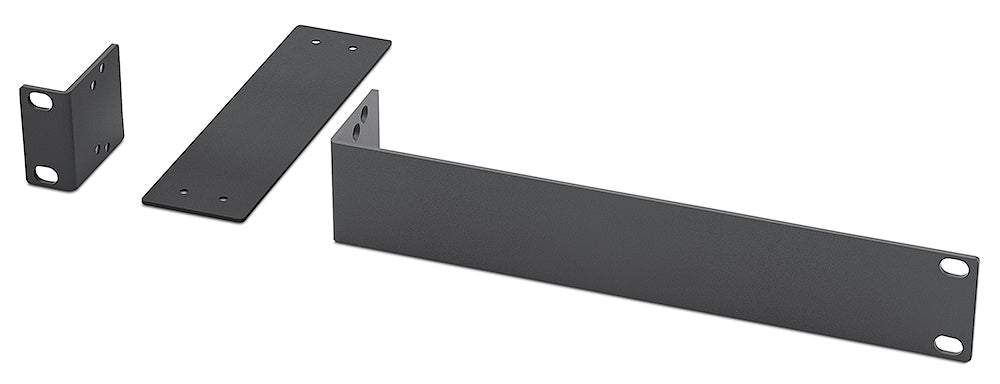

Mounting: Rack mountable with included brackets or optional 1U rack shelf

Enclosure: Metal, half-rack 1U, 1.7" H x 8.7" W x 10.5" D (43 x 221 x 267 mm)

Weight: 3.8 lbs (1.7 kg)

Regulatory Compliance: CCC, CE, C-tick, c-UL, EN55032, EN55035, FCC Class B, ICES, KC, UL, VCCI Class B; UL 62368-1 / IEC 62368-1 / BSEN 62368-1; Ecofficient Level 3, RoHS, WEEE; UL 2043 plenum rated

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor
