Extron NetPA U 1002-100V Two-Channel Dante Power Amplifier 60-1767-12
Extron NetPA U 1002-100V Two-Channel Dante Power Amplifier 60-1767-12
Extron NetPA U 1002-100V 60-1767-12 Dante 100V Amplifier
- • 2 channels at 100 W rms per channel into a 100 V constant-voltage line

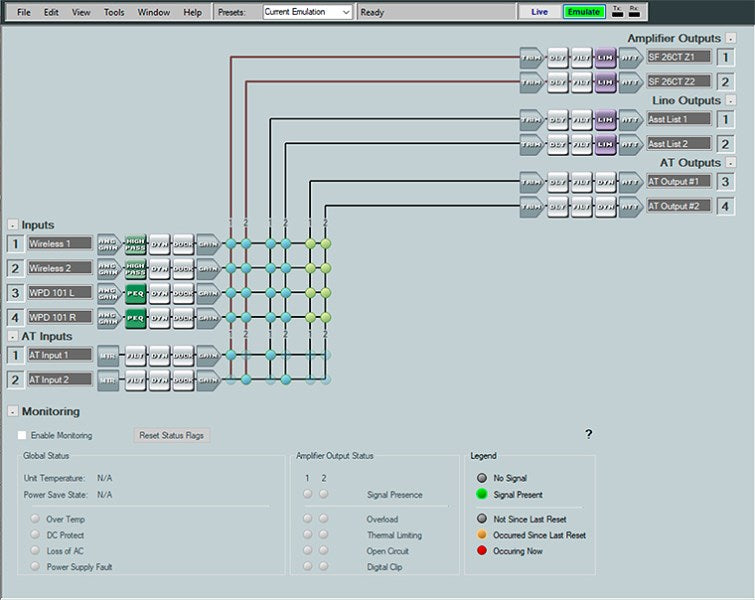

- • Dante/AES-67 network audio input with onboard 6x6 DSP mix matrix
- • 4 mic/line analog inputs plus 2 Dante channels in a half-rack 1U enclosure
- • Switchable 80 Hz high-pass filter for 100 V distributed speaker systems
- • 3-year product warranty plus 7-year Everlast power supply warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Part number 60-1767-12 — Two-Channel Dante Power Amplifier, 100 W per Channel at 100 V

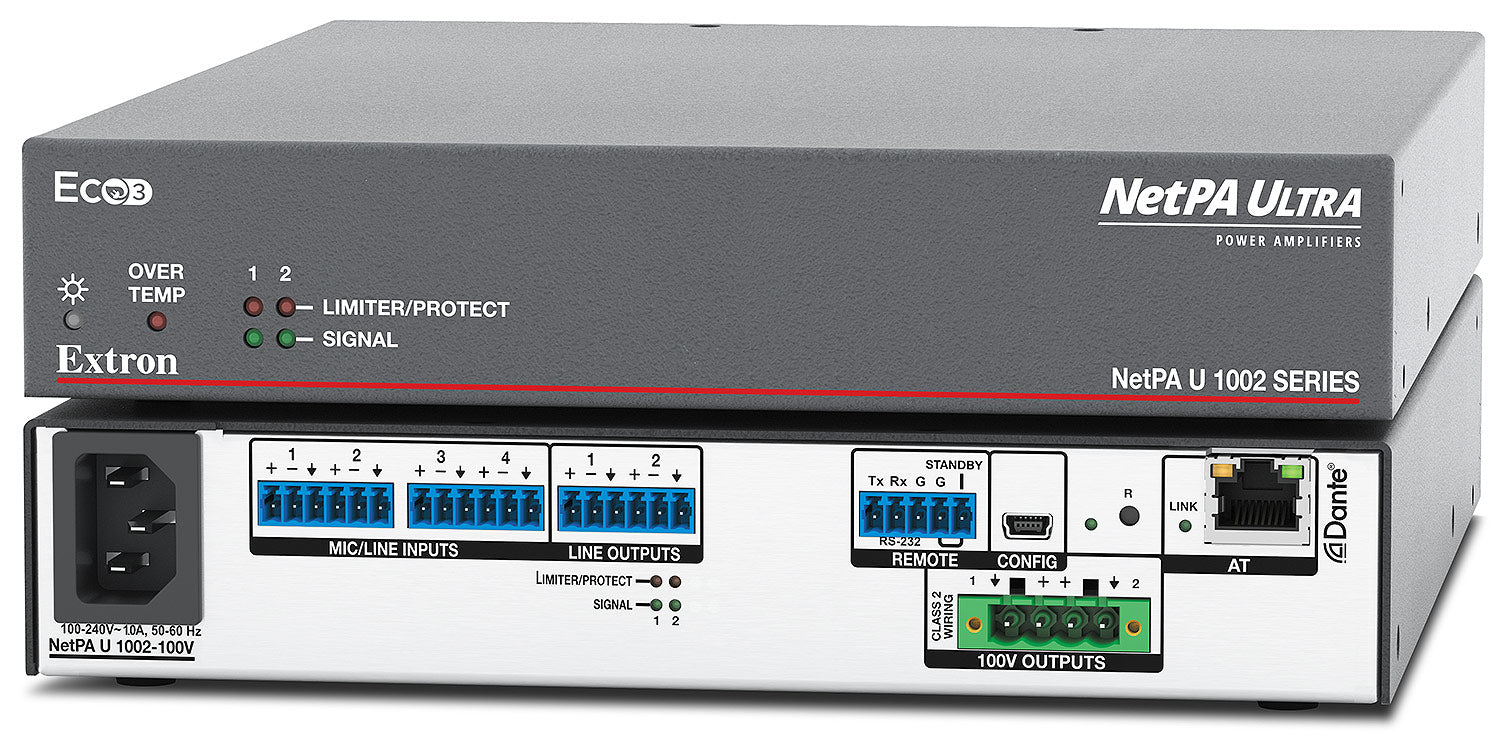

The NetPA U 1002-100V delivers 2 channels of Class D amplification at 100 watts rms per channel into a 100 V constant-voltage line (100 ohms minimum load per channel), built around a Dante/AES-67 audio transport input and an onboard DSP with a 6x6 mix matrix. The half-rack 1U metal enclosure accepts up to 4 mic/line analog inputs alongside 2 Dante network channels, mixing and routing them without external processing hardware — suited to distributed 100 V speaker systems in classrooms, conference rooms, and auditoriums.
Control options include USB, RS-232, and Ethernet with Extron's Simple Instruction Set (SIS), plus InstaWake fast recovery from standby and a switchable 80 Hz high-pass filter. The amplifier is UL-listed for plenum spaces, runs from an internal 100-240 VAC supply, and is backed by a 3-year product warranty plus Extron's 7-year Everlast power supply warranty.
Specifications
Specifications
Diagram
Diagram
Resources
Resources
