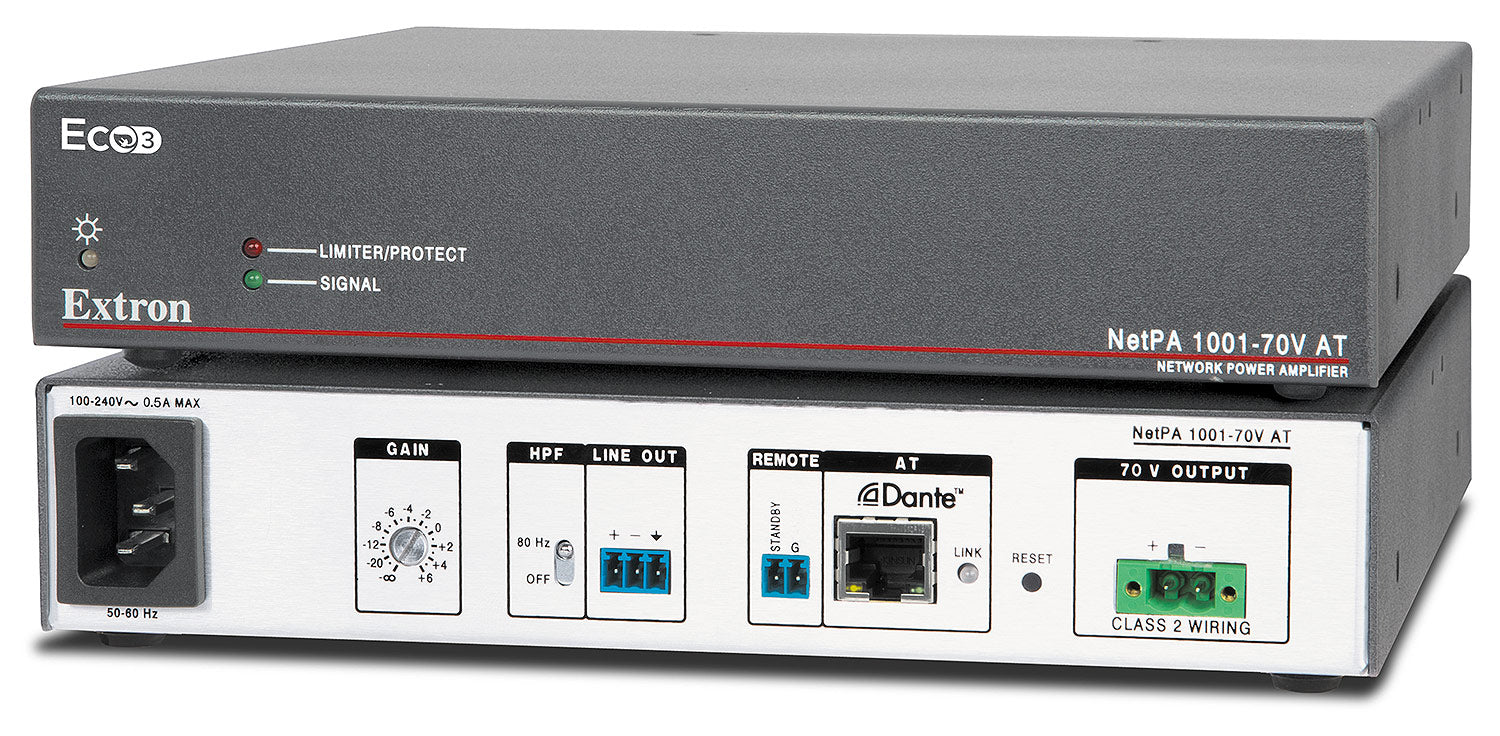

Extron NetPA 1001-70V AT Dante Power Amplifier 60-1501-01
Extron NetPA 1001-70V AT Dante Power Amplifier 60-1501-01
Extron NetPA 1001-70V AT 60-1501-01 Dante 70V Amplifier
- • 100 W rms output into a 70 V constant-voltage line, 50 ohms minimum load
- • 1 RJ-45 Dante/AES-67 audio transport input, 24-bit up to 96 kHz, deterministic latency
- • Half-rack 1U metal enclosure with internal power supply and heat sink
- • Line-level output for feeding a second zone from the same Dante signal
- • 3-year product warranty plus 7-year Everlast power supply warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Part number 60-1501-01 — Mono Power Amplifier with Dante/AES-67, 100 W into 70 V
The NetPA 1001-70V AT receives audio over a Dante/AES-67 network and amplifies it directly, delivering 100 watts rms into a 70 V constant-voltage line (50 ohms minimum load) from a half-rack 1U metal enclosure. Its single RJ-45 AT port accepts 24-bit uncompressed audio at 44.1-96 kHz sample rates with deterministic 2.0 or 5.0 ms latency, removing the need for separate DSP or analog cabling runs back to the amplifier.
A line-level output lets the same signal feed a second zone. The amplifier is convection cooled with an internal heat sink, runs from an internal 100-240 VAC supply, and includes clip-limiting, thermal, short-circuit, and DC-output protection with a front Limiter/Protect LED. It carries a 3-year product warranty plus Extron's 7-year Everlast power supply warranty.
Specifications
Specifications

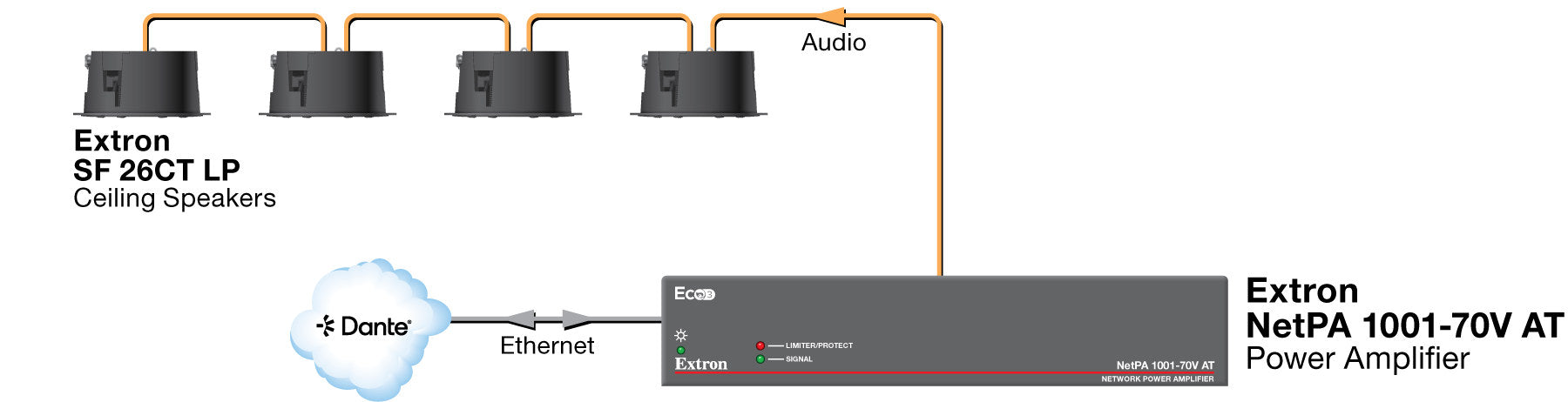

Diagram
Diagram
Resources
Resources
