Extron NBP VC2 D Network Button Panel
- • Six backlit soft-touch buttons, relabelled via Extron Custom Button Builder
- • Dual volume control: separate program and mic level keys with LED indication
- • PoE 802.3af class 3 powered - just 1.9 W at the device, no local PSU
- • Single RJ-45 at 10/100Base-T with autodetected link speed and duplex

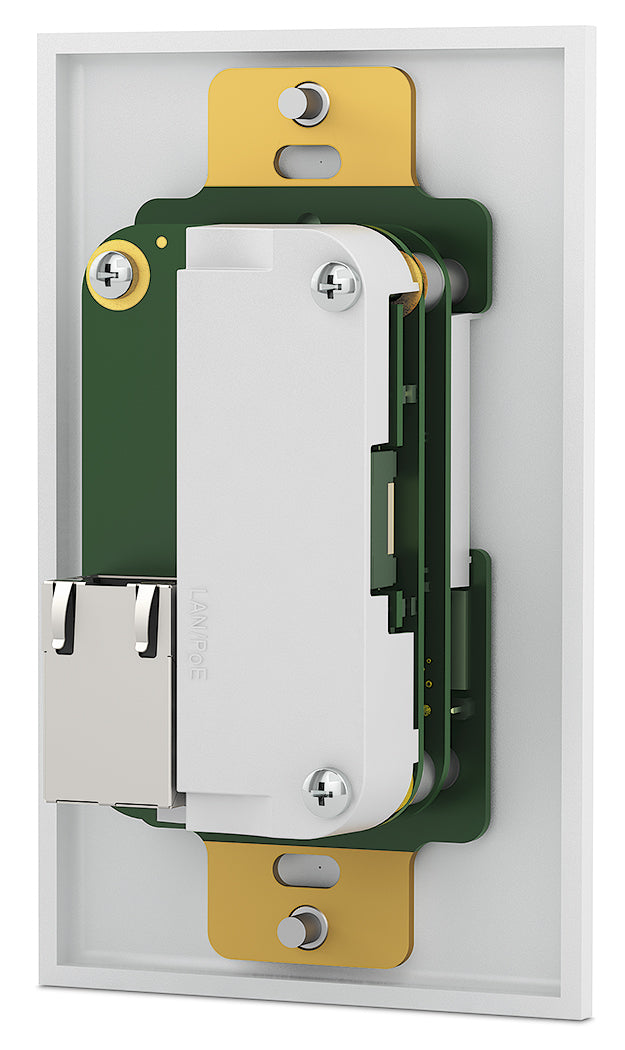

- • Fits a standard US 1-gang box or mud ring; 0.2 lb, 4.50 in faceplate

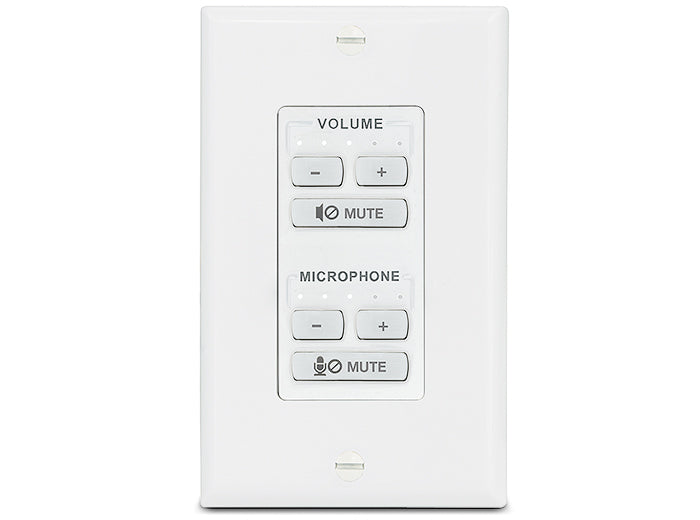

- • Black and white decorator-style wallplates and mud ring supplied
- • Secured by HTTPS, SSH, SFTP and IEEE 802.1X; 3-year parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

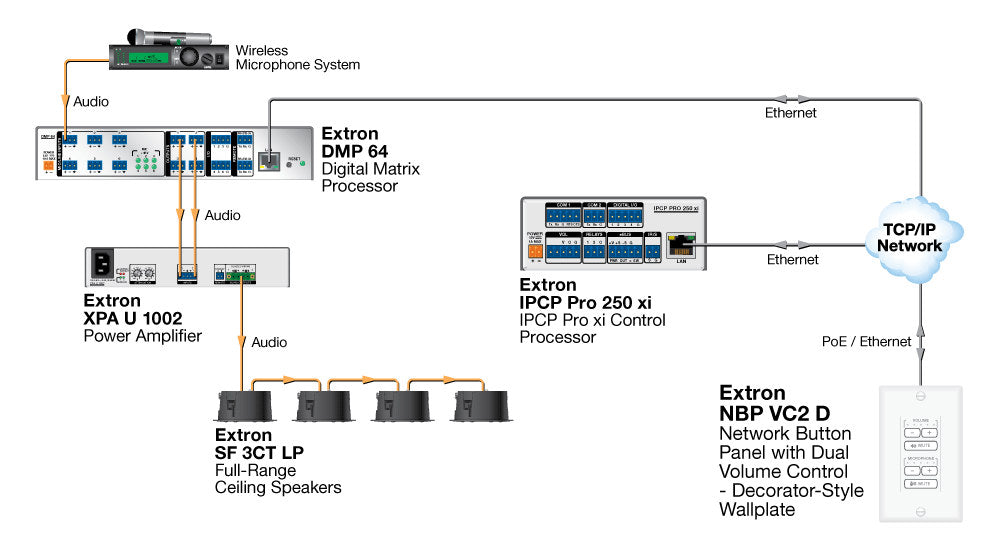

Extron NBP VC2 D (part number 60-2037-01) — decorator-style network button panel with dual volume control for Extron Pro xi Series control systems and HC 400 Series products.

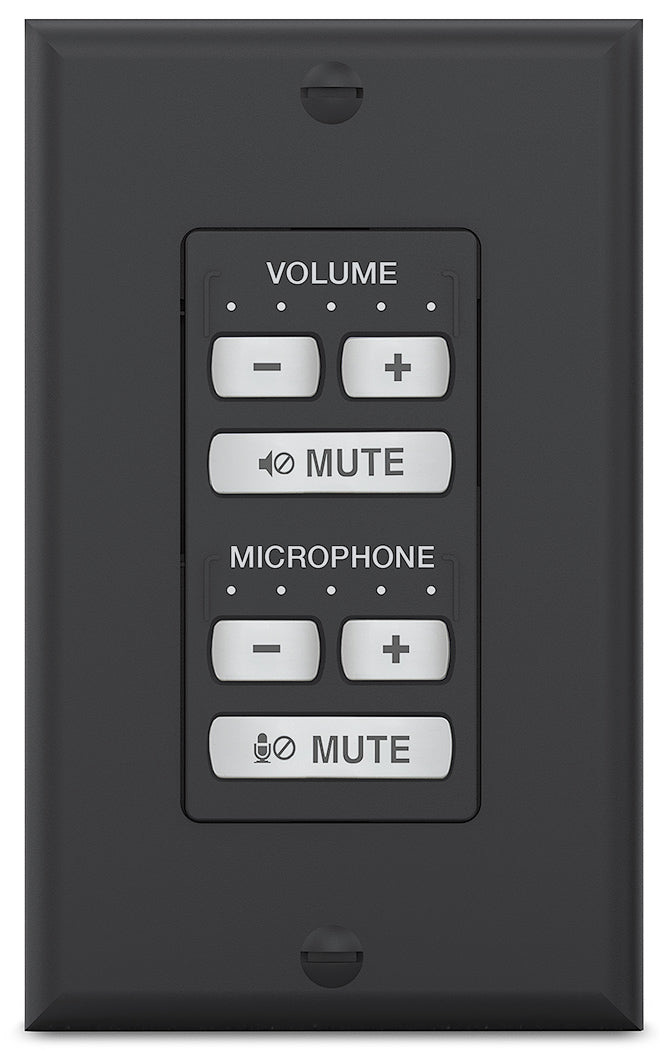

The NBP VC2 D collapses program-audio and microphone level control into a single wall point. Six soft-touch buttons cover volume up/down and mute plus microphone adjust and mute, and each is backed by LED level indication, so an operator reads the current setting without opening a touchpanel. One Cat-x run delivers both data and 802.3af Class 3 PoE power, removing the need for an outlet or a local supply behind the plate. Communication with the control processor runs over ordinary Ethernet at 10/100Base-T, with link speed and duplex autodetected.
Key Capabilities
- Six backlit, soft-touch buttons that can be relabelled through Extron's Custom Button Builder
- Independent volume and microphone adjust plus mute keys, each with LED level indication
- PoE 802.3af Class 3 powered — 1.9 watts at the device, 2.7 watts measured with a PI 115 injector
- One female RJ-45 port running 10/100Base-T, half or full duplex with autodetect
- Secure networking stack including HTTPS, SSH, SFTP, IEEE 802.1X, SNMP, NTP, DHCP and DNS
- Drops into a standard US 1-gang junction box or mud ring; black and white wallplates included
Where It Is Used
Best suited to rooms that need dependable, no-training level control rather than a full touch interface: huddle spaces and boardrooms, university classrooms and lecture theatres, corporate training suites, courtrooms and briefing rooms. Because the panel is Section 508 compliant and mounts flush in a single gang, it also fits clinical and public-facing spaces where a wall device must stay unobtrusive.
Specifications at a Glance
- Power: PoE (802.3af, class 3), 1.9 W device / 2.7 W with PI 115 injector
- Thermal dissipation: 6.6 BTU/hr device, 9.2 BTU/hr with injector
- Device size: 4.15" H x 1.78" W x 1.69" D with tabs, bezel and buttons
- Faceplate: 4.50" H x 2.75" W x 0.26" D; weight 0.2 lbs
- Memory: 512 MB SDRAM and 512 MB Flash; warranty 3 years parts and labor
Also referenced as Extron NBPVC2D, NBP-VC2-D, part number 60203701.
