Details

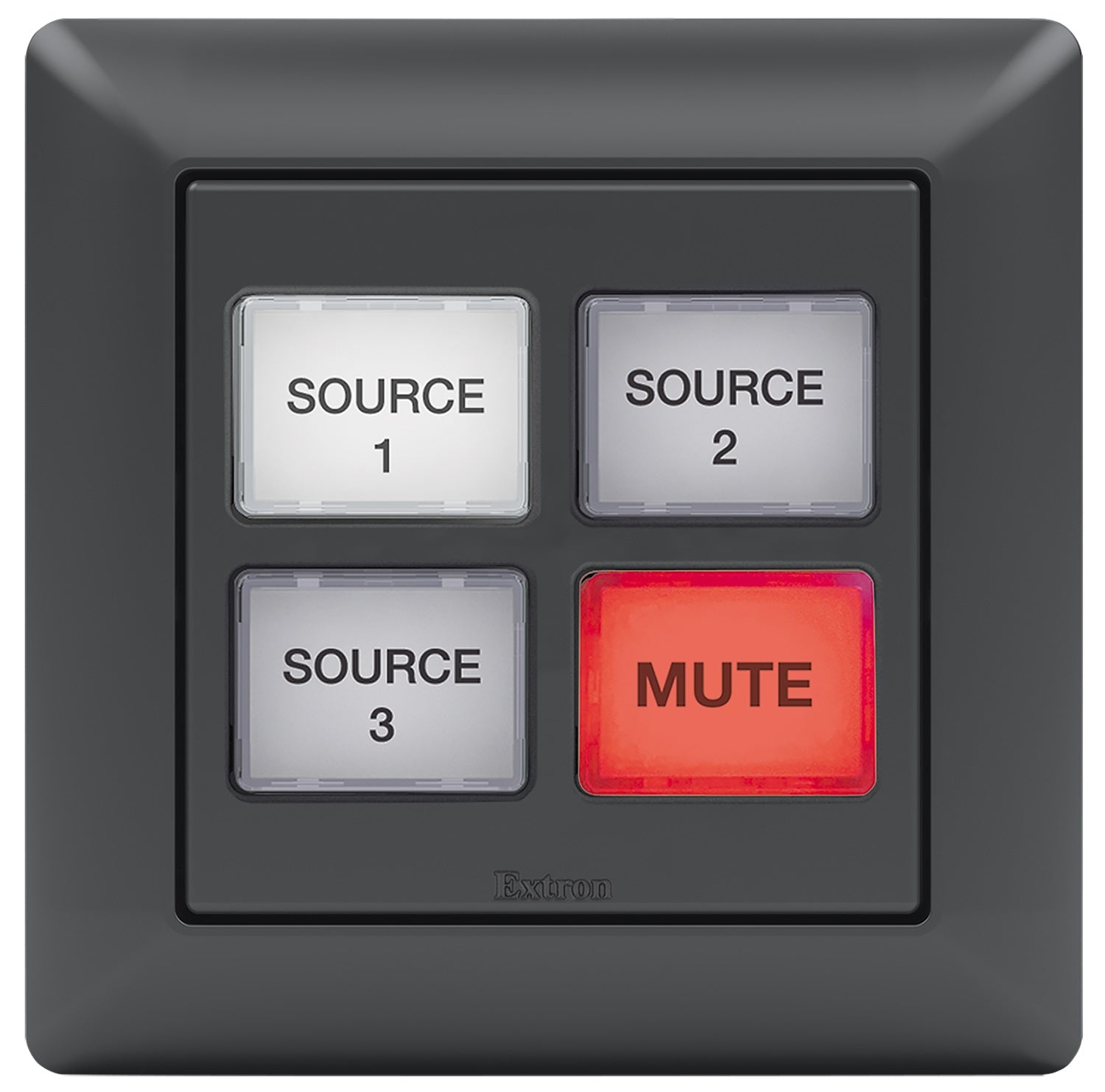

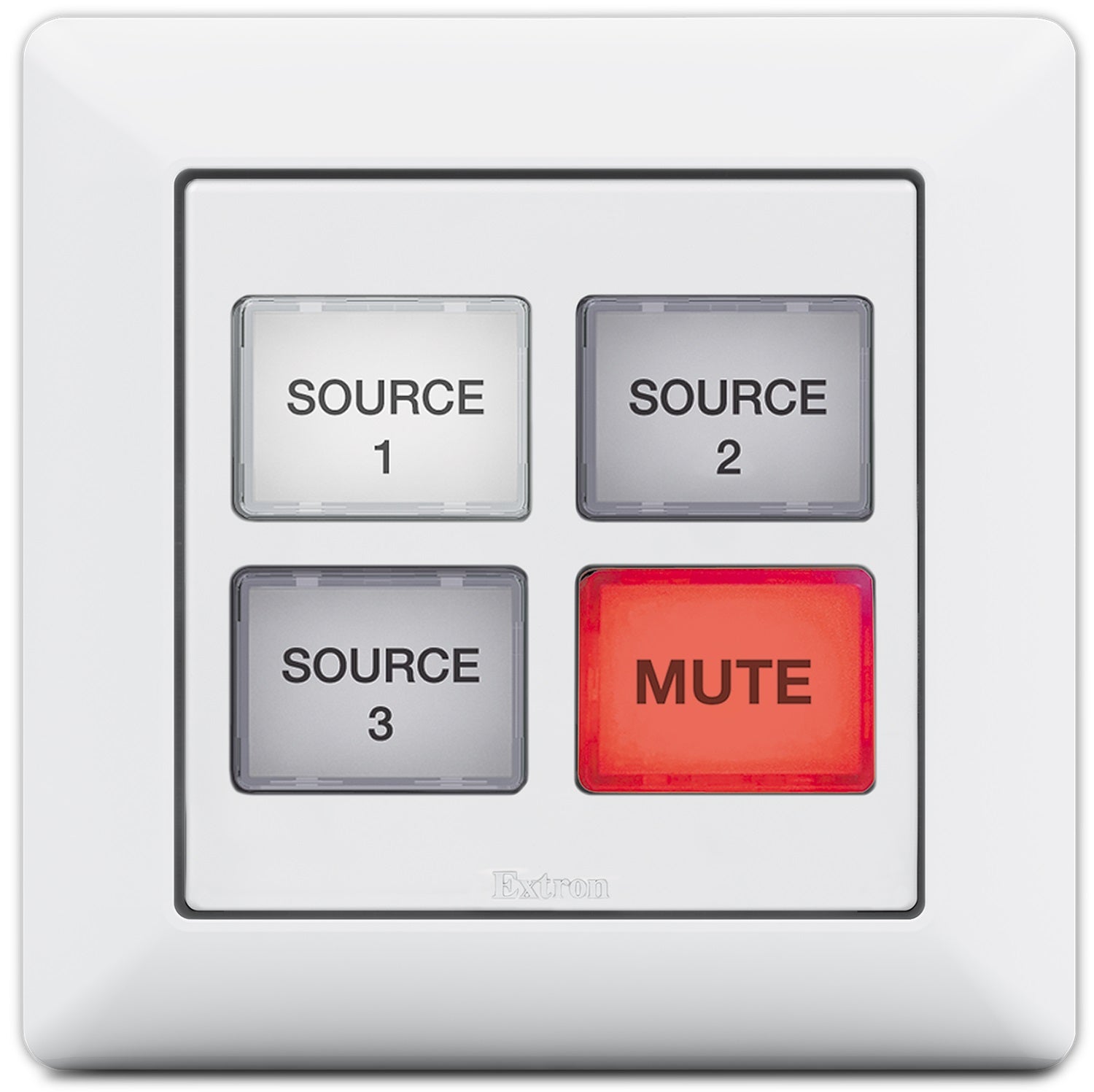

Part number 60-2050-01 — 4-Button Network Button Panel

The NBP 104 EU is a PoE-powered network button panel with 3 source-selection buttons and a mute button, connecting over a single RJ-45 Ethernet port (802.3af, Class 3) to a connected Extron control processor. It is configured with Global Configurator Plus or Professional and programmed with Global Scripter, and can be centrally managed in GlobalViewer Enterprise.

The panel fits many 1-gang EU electrical junction boxes, measures 3.17 in H x 3.17 in W x 0.45 in D at the faceplate, and weighs 0.2 lb. It draws 1.2 W (1.8 W with its PoE injector) and carries a 3-year parts-and-labor warranty.

Specifications

Part Number: 60-2050-01

Manufacturer: Extron

Model: NBP 104 EU

Power input requirements: Power over Ethernet (PoE), complies with 802.3af, Class 3 (power supply not included)

Power consumption (device only): 1.2 watts

Power consumption (device and PoE injector, PI 115): 1.8 watts

Thermal dissipation (device only): 3.9 BTU/hr

Thermal dissipation (device and PoE injector): 6.2 BTU/hr

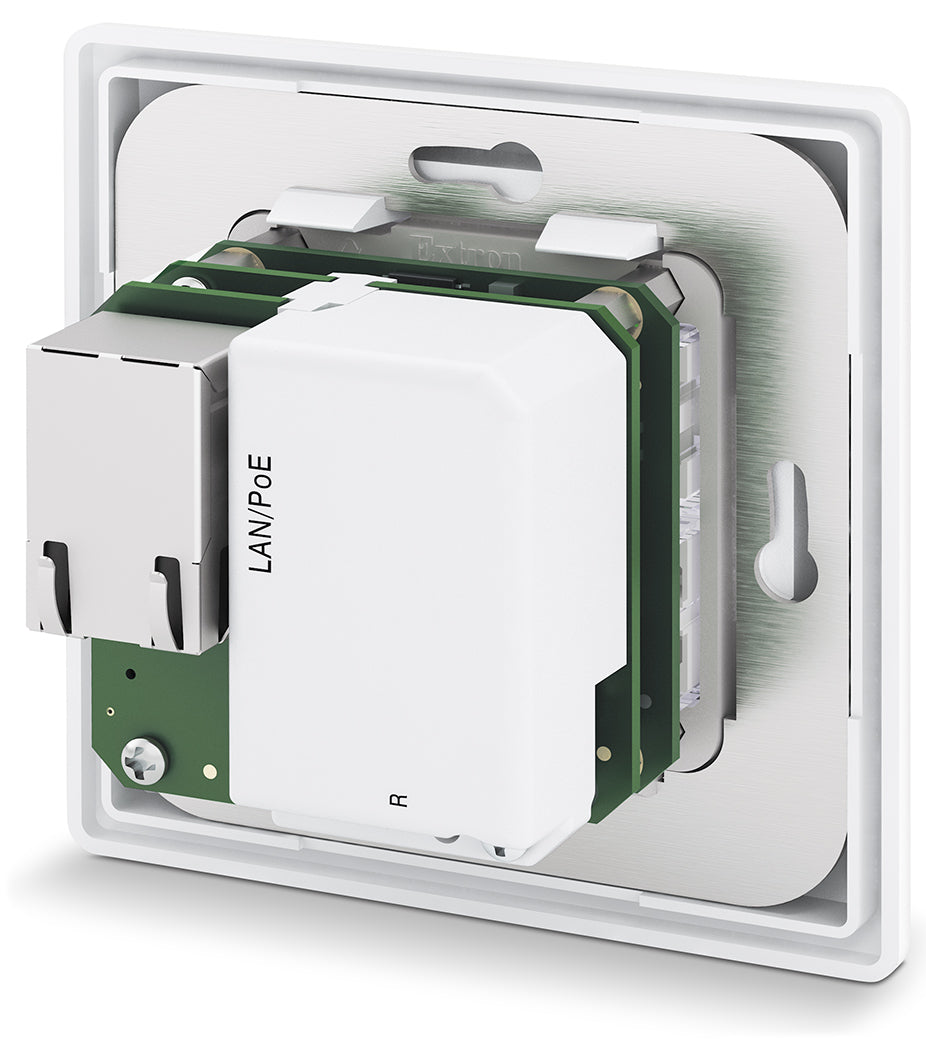

Network interface: 1 RJ-45 connector, 10/100Base-T, half/full duplex with autodetect

Memory: 512 MB SDRAM, 512 MB Flash

Enclosure type: Plastic faceplate and high-impact plastic rear enclosure

Faceplate dimensions: 3.17" H x 3.17" W x 0.45" D

Device dimensions: 1.81" H x 1.84" W x 1.49" D (behind wall); 1.81" H x 1.84" W x 1.93" D (with faceplate)

Product weight: 0.2 lb (0.1 kg)

Mounting: Wall mount, standard 1-gang EU electrical junction box or Flex55 frames/enclosures; rack mount not supported

Regulatory compliance: CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI; complies with RoHS, WEEE, Section 508

Product warranty: 3 years parts and labor

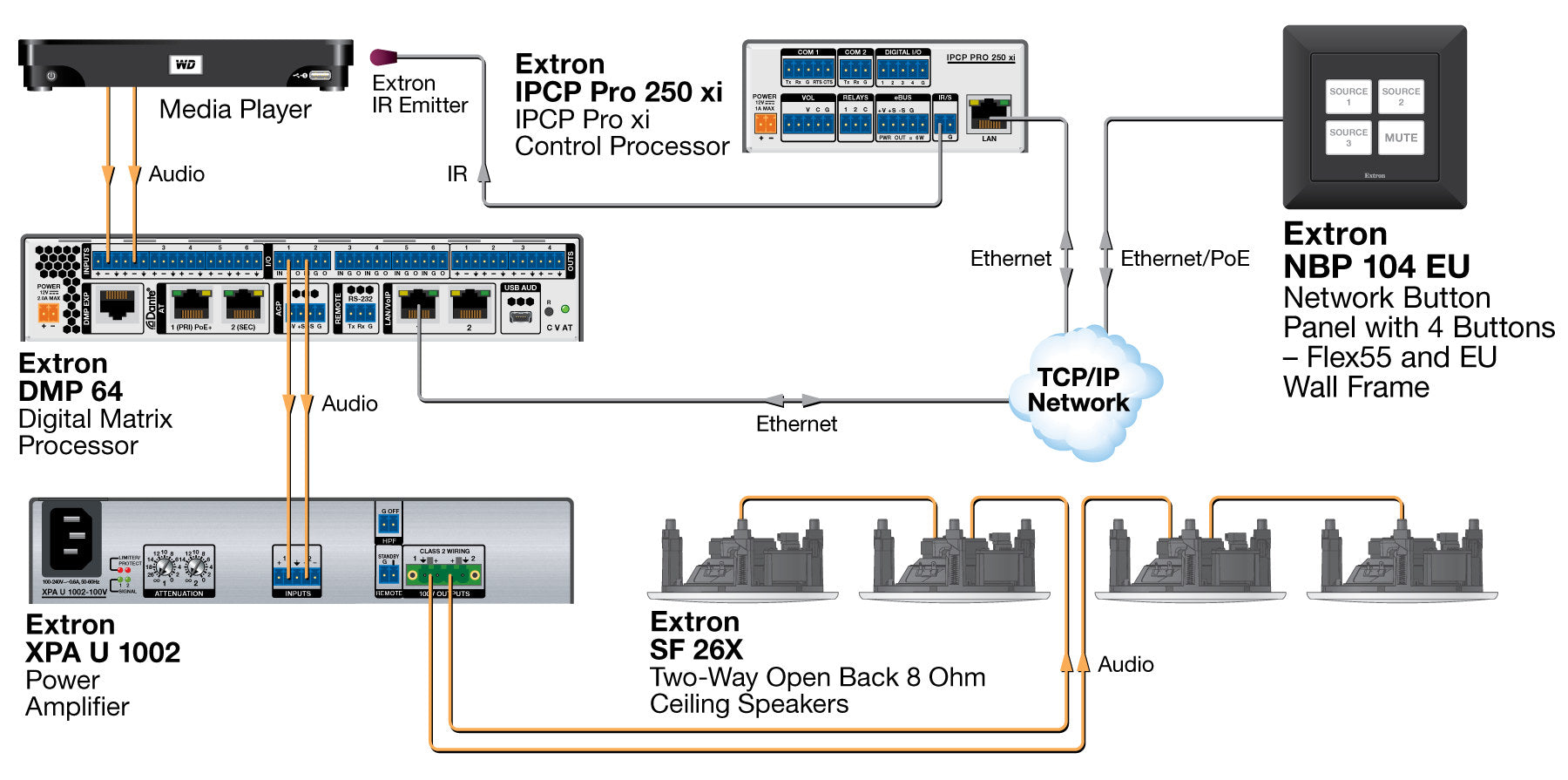

Diagram

Resources

Brochure | NBP 104 EU 60-2050-01 | Network Button Panels

Brochure | NBP 104 EU 60-2050-01 | Claviers de commande réseau

Brochure | NBP 104 EU 60-2050-01 | Netzwerk-Tastenfelder

Brochure | NBP 104 EU 60-2050-01 | Paneles de botones en red

Brochure | NBP 104 EU 60-2050-01 | Pannelli di rete NBP

Brochure | NBP 104 EU 60-2050-01 | Сетевые кнопочные панели

Manual | NBP 104 EU 60-2050-01 | Control Systems Network Ports, Protocols, and Licenses

Manual | NBP 104 EU 60-2050-01 | NBP EU Series Setup Guide

Manual | NBP 104 EU 60-2050-01 | Network Button Panels (NBP) User Guide

Specifications | NBP 104 EU 60-2050-01 | NBP EU Series

Specifications | NBP 104 EU 60-2050-01 | Network Button Panels

Panel Drawing | NBP 104 EU 60-2050-01 | NBP 104 EU

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron NBP 104 EU Network Button Panel 60-2050-01

Name: Extron NBP 104 EU Network Button Panel 60-2050-01
Brand: Extron
SKU: EXTRON-NBP104EU-60205001
Availability: InStock

Manufacturer: Extron

Type: Network Button Panels

Extron NBP 104 EU Network Button Panel 60-2050-01

• 4 buttons: 3 source selectors plus mute, PoE-powered over a single RJ-45 connection
• Fits many 1-gang EU electrical junction boxes
• Programmed with Global Configurator Plus/Professional and Global Scripter
• Centrally managed and monitored through GlobalViewer Enterprise
• 3-year parts and labor warranty
