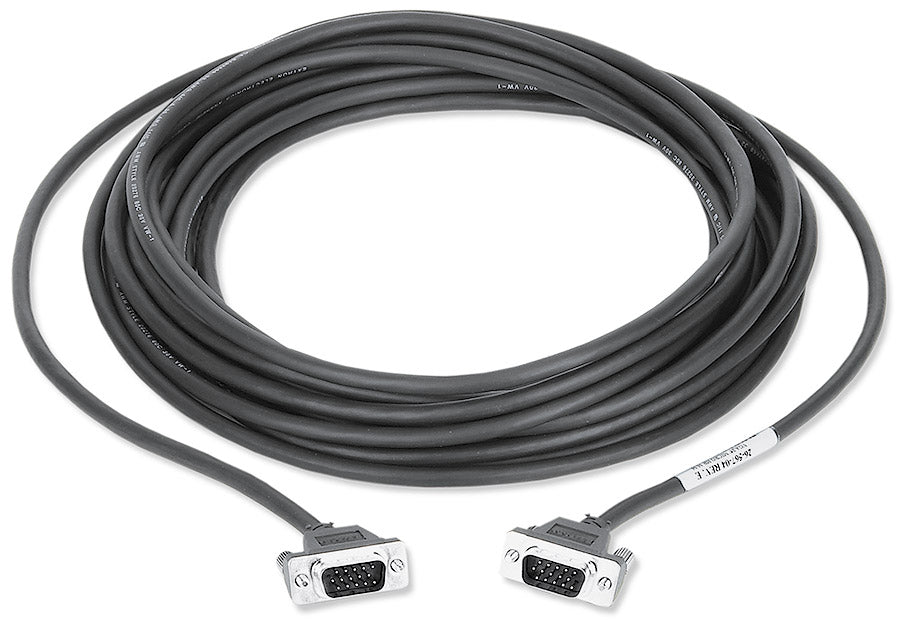

Extron MVGA M-M/25 (part number 26-567-04) — a 25 ft (7.6 m) micro VGA cable, the longest length Extron lists in the MVGA M-M range.

Twenty-five feet of VGA usually means a heavy, unwieldy cable that fights the conduit. The point of Extron's micro construction is that it does not: the assembly stays thin and flexible over the whole run, which makes it viable to pull from a table position to a rack in the next room. Pin 9 is passed through the full 25 feet, so a source with a VESA DDC version 3 graphics card still receives the display's ID bits and can supply +5 VDC. AWM 20276 rated throughout.

Key Capabilities

• 25 ft (7.6 m), the longest length in the MVGA M-M range
• Moulded low-profile 15-pin HD male connectors at both ends
• Pin 9 passed through all 25 feet for ID bits and +5 VDC
• Thin and flexible along the entire run, unlike bulk VGA cable
• AWM 20276 rated
• Certified for AVEdge, Cable Cubby and HSA enclosures

Where It Is Used

Room-to-rack VGA links where the equipment closet is not in the same space as the source, projector feeds in classrooms and training rooms, and retrofit pulls through existing raceway where a thick cable simply will not fit.

Specifications at a Glance

• Cable length: 25 ft (7.6 m)
• Connectors: moulded 15-pin HD male, low profile
• Signals: computer video and ID bits
• Rating: AWM 20276

Also referenced as Extron MVGAM-M/25, MVGA-M-M-25, part number 2656704.
