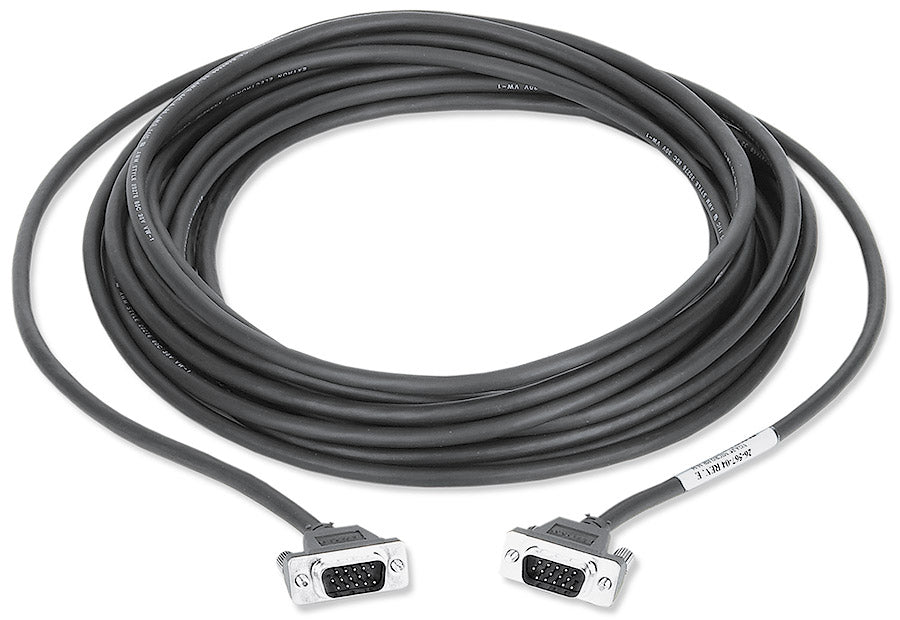

Extron MVGA M-M/12 (part number 26-567-03) — a 12 ft (3.6 m) micro VGA cable with moulded 15-pin HD male connectors at both ends.

Twelve feet is the length that gets a VGA source out of the furniture and across to a rack or wall plate. Ordinary VGA cable at that length becomes stiff and heavy; Extron's micro construction stays thin and pliable, which matters when the run has to make two or three turns inside a credenza before it reaches the switcher. Pin 9 is passed through the whole length so ID bits and +5 VDC survive the trip, and the jacket carries an AWM 20276 rating.

Key Capabilities

• 12 ft (3.6 m) length, measured tip-to-tip including connectors
• Moulded low-profile 15-pin HD male connectors
• Pin 9 passed through end to end for ID bits and +5 VDC
• Thin, flexible micro VGA cable that turns easily inside furniture
• AWM 20276 rated jacket
• Certified for AVEdge, Cable Cubby and HSA enclosures

Where It Is Used

Runs from a table box or lectern to a credenza-mounted switcher, classroom wall plate to projector feeds, and refurbishment work in rooms where the VGA infrastructure is staying but the cable has to be routed through tighter furniture than before.

Specifications at a Glance

• Cable length: 12 ft (3.6 m)
• Connectors: moulded 15-pin HD male at both ends
• Signals: computer video and ID bits
• Rating: AWM 20276

Also referenced as Extron MVGAM-M/12, MVGA-M-M-12, part number 2656703.
