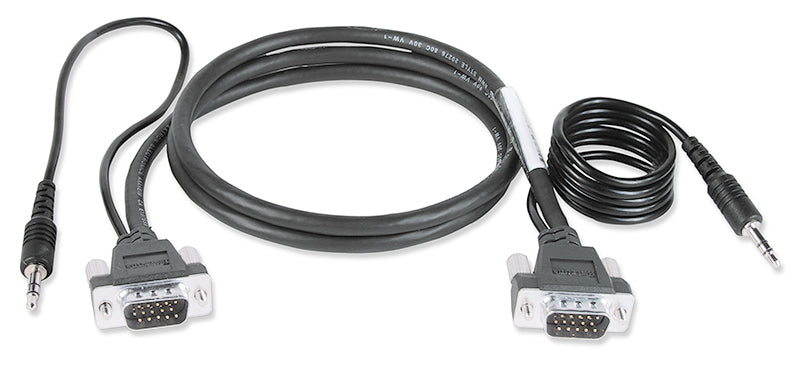

Extron MVGA-A M-M/9 (part number 26-566-09) — a 9 ft (2.7 m) micro VGA and analogue audio cable, sitting between the 6 ft and 12 ft options in the MVGA-A M-M range.

Nine feet exists for the rooms where six is not quite enough and twelve leaves a coil nobody wants to hide. The assembly is identical in construction to the rest of the family: Extron's extremely thin micro VGA cable with low-profile moulded 15-pin HD connectors, a stereo audio path on 3.5 mm mini plugs, tails of 24 inches and 8 inches, grounded VGA shells for ESD protection and an overall foil shield beneath the injection moulding. The jacket is AWM 20276 rated.

Key Capabilities

• 9 ft (2.7 m) VGA and analogue audio in a single assembly
• 3.5 mm mini plugs on 24 in and 8 in audio tails
• Pin 9 passed through end to end for ID bits and +5 VDC
• Grounded VGA shells for electrostatic discharge protection
• Overall foil shield for EMI isolation
• AWM 20276 rated; certified for AVEdge, Cable Cubby and HSA enclosures

Where It Is Used

Larger meeting tables and training rooms where the connectivity enclosure is set back from the seating position, and lectern installations that need a little extra slack for the presenter to move.

Specifications at a Glance

• Cable length: 9 ft (2.7 m)
• Connectors: moulded 15-pin HD male plus 3.5 mm audio per end
• Signals: computer video, ID bits and analogue audio
• Rating: AWM 20276; listed by Extron as a retired part number

Also referenced as Extron MVGA-AM-M/9, MVGA-A-M-M-9, part number 2656609.
